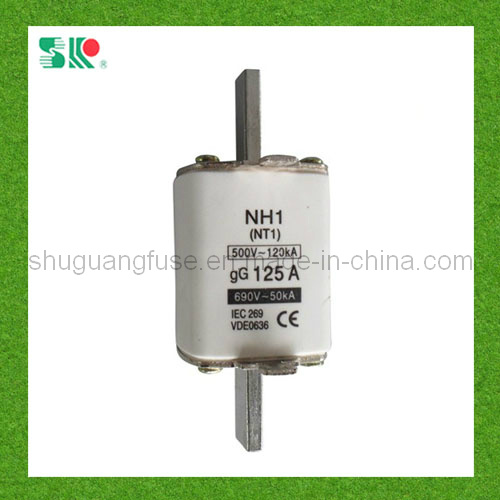

Nh1 (NT1) 125A LV HRC Knife Type Fuse Link

Name: Nh1 (NT1) 125A LV HRC Knife Type Fuse Link
Brand: all-electronics-online.com
SKU: 712362045
Availability: InStock
Rating: 4.4 (150 reviews)

Price:	US $ 1.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	NH1/NT1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Ceramic
Color:	White
Operation:	Electric Type
Installation:	Insert
Speed:	High-Speed Circuit Breaker
Structure:	Conventional Circuit Breaker
Arc-Extinguishing Medium:	Quartz Sand
Function:	Overcurrent Protection
Certification:	Ce
Usaga:	Low Voltage
Breaking Capacity:	Low Voltage Circuit Breakers
Type:	Fuse
Shape:	as Picture Show

Product Description

NT Low Voltage Fuse and Base

Application
NT low voltage H. R. C. Fuse is light in weight, small in size, low in power, loss and high in breaking capacity. This product has been widely used in overload and short circuit protection of electric installations.
This product conforms to IEC 269 and VDE0636 standards with all of the rating at the world advanced level.

Type	Fuse Link				Fuse Base
Type	Rated Current (A)	Rated Voltage (V)	Rated Power Loss(W)	Weight (Kg)	Type	Rated Current (A)	Weight (Kg)
RT16-000/NT00C	2	500,690	0.41	0.15	Sist101	160	0.2
	4		0.62
	6		0.81
	10		1.08
	16		1.60
	20		1.81
	25		2.31
	32		3.07
	36		3.17
	40		4.05
	50		4.25
	63		4.70
	80		5.7
	100		7
RT16-00/NT0	10	500,690	1.42	0.2	Sist101	160	0.32
	16		2.45
	20		2.36
	25		2.7
	32		3.74
	35		4.3
	40		4.7
	50		5.5
	63		6.9
	80		7.6
	100		8.9
	125	500	10.1
	160	500	15.2
RT16-1/NT1	80	500,690	6.2	0.36	Sist201	250	0.8
	100		7.5
	125		10.2
	160		13
	200		15.2
	224	500	16.8
	250	500	18.3
RT16-2/NT2	125	500,690	6.9	0.65	Sist401	400	1.2
	160		11.5
	200		15
	224		16.6
	250		18.4
	300		21
	315		19.2
	355		24.5
	400		26
	415		21.7
RT16-3/NT3	355	500,690	22.7	0.85	Sist601	630	1.5
	400		26.8
	425		28.9
	500	500	32
	630	500	40.3
RT16-4/NT4	800	380	62	1.95	Sist1001	1000	3.45
RT16-4/NT4	1000	380	75	1.95	Sist1001	1000	3.45

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
