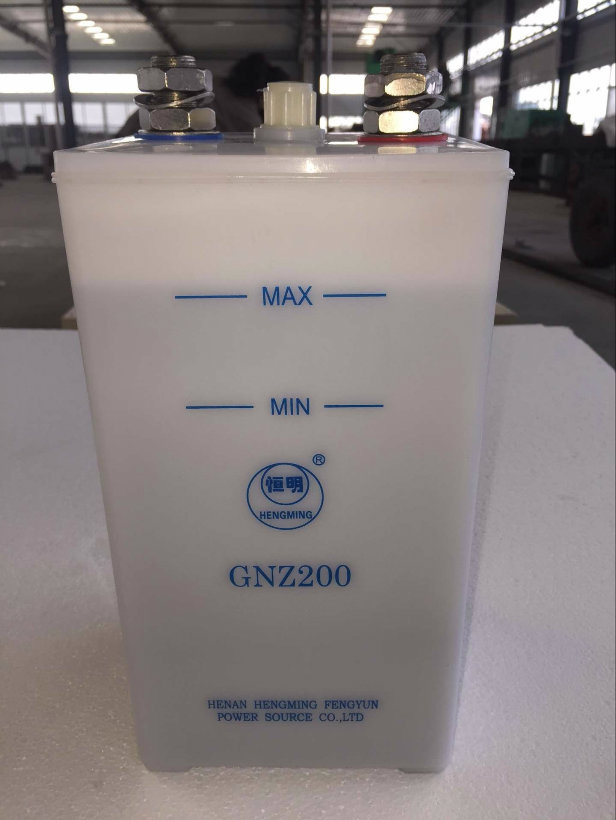

The data sheet of GNZ200 as follow:
1.cell type:GNZ200=KPM200 (lmedium rate dicharge battery with long discharge time)
2.rated capacity:200AH
3.nominal voltage:1.2V
4.container :ABS,PP
5.delivery with dry battery . electrolyte(KOH+LIOH+DISTILLED WATER)

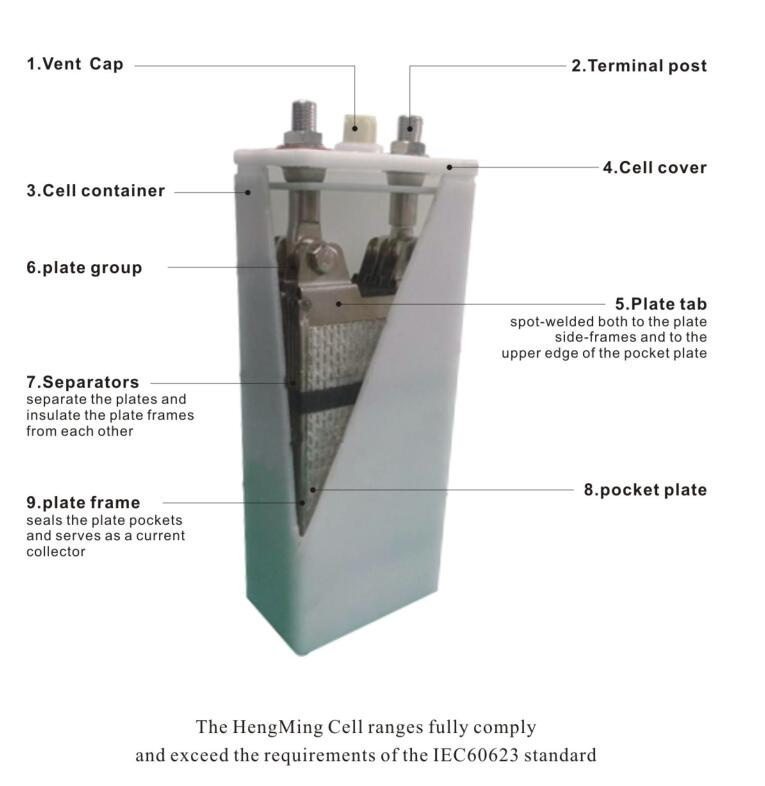

Cell Construction
Cycle life
one cycle means a cell is fully charged and discharged. The cell's cycle life should not be less than 900 cycle. According to the applicable IEC standard,it shoud be 500 cycles at least. in case of float charge application,its cycl life may be longer.
Cell Capacity and Dimensions
| KPM=GNZ(Medium Rate Type) Pocket----Pocket |
| Cell Type | Nominal
Voltage (V) | Rated Capacity (Ah) | Dimension(mm) | Thread of pole | Weight (filled) (Kg) | Electrolyte Volume
(L) | Container Material |
| L | W | H |
| GNZ10 | 1.2V | 10 | 82 | 43 | 258 | M10*1.5 | 1.20 | 0.40 | ABS / PP |
| GNZ20 | 1.2V | 20 | 135 | 54 | 265 | M10*1.5 | 1.90 | 0.60 | ABS / PP |
| 114 | 52 | 266 | M10*1.5 | 2.10 | 0.70 | ABS |
| GNZ30 | 1.2V | 30 | 135 | 54 | 265 | M10*1.5 | 2.40 | 0.60 | ABS / PP |
| GNZ40 | 1.2V | 40 | 141 | 71 | 295 | M10*1.5 | 3.60 | 1.00 | PP |
| 138 | 61 | 266 | M10*1.5 | 3.62 | 0.84 | ABS / PP |
| GNZ50 | 1.2V | 50 | 139 | 79 | 295 | M10/M16 | 4.65 | 1.00 | ABS |
| 141 | 71 | 295 | M10*1.5 | 4.20 | 1.00 | PP |
| GNZ60 | 1.2V | 60 | 139 | 79 | 295 | M16 | 5.30 | 1.20 | ABS |
| 141 | 71 | 295 | M10*1.5 | 4.40 | 1.00 | PP |
| GNZ70 | 1.2V | 70 | 139 | 79 | 295 | M16 | 5.40 | 1.20 | ABS |
| 139 | 79 | 362 | M16 | 6.20 | 1.42 | ABS / PP |
| 141 | 71 | 295 | M10*1.5 | 4.60 | 1.00 | PP |
| GNZ80 | 1.2V | 80 | 139 | 79 | 362 | M16 | 6.50 | 1.40 | ABS / PP |
| 143 | 100 | 280 | M10*1.5 | 5.80 | 1.5 | ABS |
| GNZ90 | 1.2V | 90 | 164 | 104 | 345 | M20×1.5 | 8.20 | 1.62 | ABS / PP |
| 139 | 79 | 362 | M16 | 6.50 | 1.25 | ABS / PP |
| GNZ100 | 1.2V | 100 | 164 | 104 | 345 | M20×1.5 | 9.30 | 1.8 | ABS / PP |
| GNZ120 | 1.2V | 120 | 164 | 104 | 345 | M20×1.5 | 9.50 | 1.80 | ABS / PP |
| 139 | 89 | 362 | M16 | 7.50 | 1.50 | PP |
| GNZ130 | 1.2V | 130 | 165 | 105 | 345 | M20×1.5 | 9.50 | 1.75 | ABS / PP |
| 167 | 162 | 345 | M20×1.5 | 11.40 | 2.70 | ABS / PP |
| GNZ140 | 1.2V | 140 | 165 | 105 | 345 | M20×1.5 | 9.60 | 1.75 | ABS / PP |
| GNZ150 | 1.2V | 150 | 167 | 162 | 345 | M20×1.5 | 12.50 | 2.70 | ABS / PP |
| 165 | 105 | 345 | M20×1.5 | 9.60 | 1.60 | ABS / PP |
| GNZ160 | 1.2V | 160 | 167 | 162 | 345 | M20×1.5 | 12.80 | 3.00 | ABS / PP |
| GNZ180 | 1.2V | 180 | 167 | 162 | 345 | M20×1.5 | 13.60 | 3.40 | ABS / PP |
| GNZ200 | 1.2V | 200 | 167 | 162 | 345 | M20×1.5 | 14.00 | 2.90 | ABS / PP |
| GNZ250 | 1.2V | 250 | 282 | 170 | 348 | M20×1.5 | 20.60 | 4.60 | ABS |
| 277 | 145 | 450 | M20×1.5 | 21.50 | 4.60 | ABS |
| 176 | 161 | 540 | M16 | 20.60 | 4.60 | ABS |
| GNZ300 | 1.2V | 300 | 282 | 170 | 348 | M20×1.5 | 23 | 5 | ABS |
| 176 | 161 | 540 | M20×1.5 | 22.60 | 5.00 | ABS |
| 232 | 172 | 410 | M20×1.5 | 23.00 | 4.80 | ABS |
| GNZ400 | 1.2V | 400 | 282 | 170 | 348 | M20×1.5 | 24.00 | 6.00 | ABS |
| 285 | 172 | 490 | M20×1.5 | 31.80 | 7.00 | ABS |
| 277 | 140 | 490 | M20×1.5 | 26.50 | 5.00 | PP |
| GNZ500 | 1.2V | 500 | 285 | 172 | 490 | M20×1.5 | 36.50 | 8.50 | ABS |
| GNZ600 | 1.2V | 600 | 285 | 172 | 490 | M20×1.5 | 39.00 | 10.00 | ABS |
| GNZ700 | 1.2V | 700 | 395 | 185 | 560 | M20×1.5 | 54.70 | 11.50 | ABS |
| GNZ800 | 1.2V | 800 | 395 | 185 | 560 | M20×1.5 | 66.00 | 15.00 | ABS |
| GNZ900 | 1.2V | 900 | 395 | 185 | 560 | M20×1.5 | 66.00 | 15.00 | ABS |
| GNZ1100 | 1.2V | 1100 | 395 | 185 | 560 | M20×1.5 | 68.30 | 12.50 | ABS |
Advantage of hmbattery
1.have packing room,welding room,assembling room,heating room,production room etc
2.wide operating temperature range from -25 °C to 45°C
3.long service life more than 20 years
4.Excellent charging efficiency and smooth discharge voltage
5.high resistance to mechanical and electrical abuse
6.plastic maerial is produced by our own factory
7.Low maintenance cost and replacement cost.
8.excellent sales man and engineers
9.fastest delivery time
10.28 years Ni-Cd manufacture experience
12.top three sales in China NiCd battery field
Application
nickel-cadmium pocket plate batteries are available in three different plate designs optiized with regard to the required discharge(back up ) time. these categories are:
High Rate(KPH) for discharge periods of less than 60 minutes
Medium Rate(KPM) for discharge periods of more than 60 minutes
Low Rate(KPL) for discharge periods of more than 120 minutes
These cell ranges do perfectly satisfy the requirements of a really wide variety of different applications.
High rate batteries
Typical high rate applications are,among others:
Electro Magnets
Engine Starting
Switchgears
Uninterruptible power supply (UPS)
Medium rate batteries
Typical medium rate applications are,among others:
Electric Train Control
Process Control
Turbine Starting
Low Rate Batteries
Typical medium rate applications are,among others:
Alarms
Railway Signalling
Telecommunications
Company Instruction

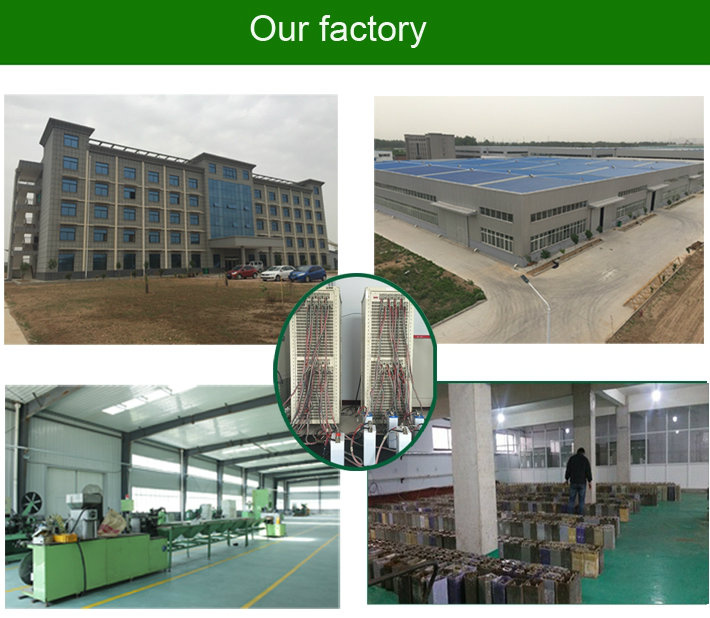

Henan Hengming Fengyun Power Source Co.,Ltd. is a manufacturer with 200 employees; it was established in 1996, located in No.8 Xinhui Road, Xinxiang City, Henan, China. The workshops occupied an area of 14,000 square meters. Henan Hengming Fengyun Power Source Co.,Ltd. has its own brand.
They have passed ISO9001:2008 certification in 2010, ISO14001:2004 certification and OHSAS 18001:207 certification in 2012, obtained CE certificate for nickel cadmium battery and UK Intertek test report for nickel cadmium prismatic rechargeable battery in KPL,KPM,KPH,KPX series according to IEC60623 standard. Henan Hengming Fengyun Power Source Co.,Ltd. has successful foreign trading experience in North America, Europe, Australia, Mideast, Southeast Asia, South Asia and East Asia,etc.
Now HengMing brand Products ni-cd battery, ni-fe battery, ni-mh battery welcomed by end users all over the world, welcome to visit our factory.
Product Picture
HengMing Group is a high-tech company in Henan with more than $10 million in capital 30 years of experience. Our factory covers an area of 16, 000 square meters manned by 280 workers including 10 professional engineers. Hengming-branded products are popular in mainland China.
We offer Ni-CD batteries in KPL, KPM, KPH, KPX series. They are widely used in the Railway signaling, Alarms, Telecommunications, UPS, DC power sources, Power plant, Engine starting, Emergency back-up power, etc.
We offer Ni-Fe solar batteries in TN series. They are widely used for Solar energy, On-gird off-gird PV power system, specially suitable for solar photovoltaic applicationsrenewable energy storage applications.
We offer Ni-MH pocket type batteries, capacity range from 10Ah to 1200Ah.
HengMing's products have been exported to more than 20 countries and regions including Singapore, South Korea, Malaysia, the United States, Spain, Iran, Mexico, Pakistan, Bangladesh, Indonesia, Poland, Turkey, etc
