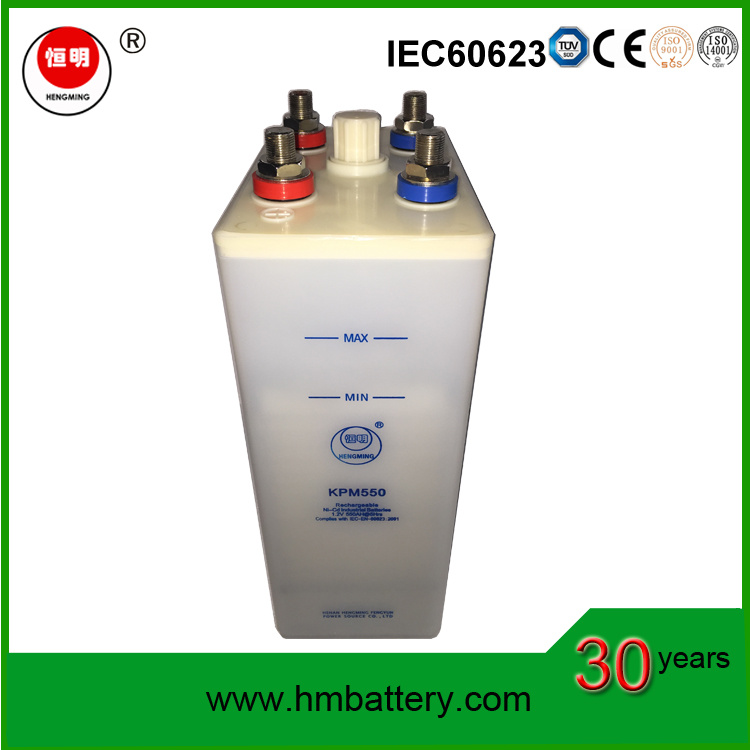

Nickel Cadmium Alkaline Battery NiCd 1.2V 500ah

The data sheet of GNZ500 as follow:

1.cell type:GNZ100=KPM500 (lmedium rate dicharge battery with long discharge time)

2.rated capacity:500AH

3.nominal voltage:1.2V

4.container :ABS,PP

5.delivery with dry battery . electrolyte(KOH+LIOH+DISTILLED WATER)


Cycle life

one cycle means a cell is fully charged and discharged. The cell's cycle life should not be less than 900 cycle. According to the applicable IEC standard,it shoud be 500 cycles at least. in case of float charge application,its cycl life may be longer.


Advantage of hmbattery

1.have packing room,welding room,assembling room,heating room,production room etc

2.wide operating temperature range from -25 °C to 45°C

3.long service life more than 20 years

4.Excellent charging efficiency and smooth discharge voltage

5.high resistance to mechanical and electrical abuse

6.plastic maerial is produced by our own factory

7.Low maintenance cost and replacement cost.

8.excellent sales man and engineers

9.fastest delivery time

10.28 years Ni-Cd manufacture experience

12.top three sales in China NiCd battery field


Application

nickel-cadmium pocket plate batteries are available in three different plate designs optiized with regard to the required discharge(back up ) time. these categories are:



 High Rate(KPH)              for discharge periods of less than 60 minutes

 Medium Rate(KPM)        for discharge periods of more than 60 minutes

 Low Rate(KPL)               for discharge periods of more than 120 minutes

These cell ranges do perfectly satisfy the requirements of a really wide variety of different applications.

 High rate batteries

 Typical high rate applications are,among others:

 Electro Magnets

 Engine Starting

 Switchgears

 Uninterruptible power supply (UPS)

 Medium rate batteries

 Typical medium rate applications are,among others:

 Electric Train Control

 Process Control

 Turbine Starting

 Low Rate Batteries

 Typical medium rate applications are,among others:

 Alarms

 Railway Signalling

 Telecommunications
