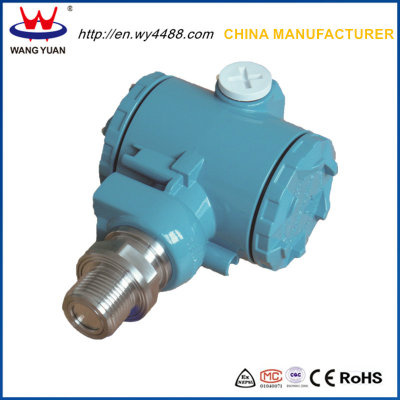

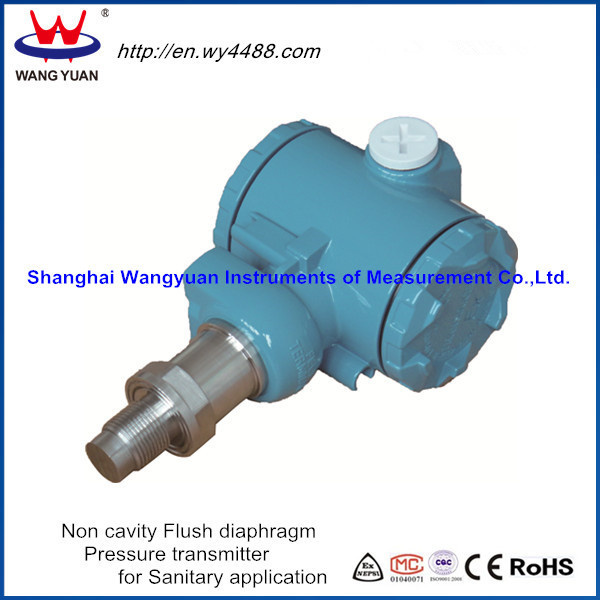

Non-Cavity Flush Diaphragm Pressure Transmitter

Prod Model:	WP435A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Type:	Gauge Pressure(G), Absolute Pressure(a), Sealed Pr
Process Connection:	G1/2,M20*1.5,1/4NPT,1/2NPT, Customized
Electrical Connector:	Cable, Terminal Block
Output Signal:	4-20mA (1-5V); 4-20mA with Hart Protocol
Compensation Range:	-10~70 Celsius
Power Supply:	24V DC
Name:	Non-Cavity Flush Diaphragm Pressure Transmitter
Measuring Medium:	Gas, Oil, Liquids, Steam
Pressure Range:	0-(-10)~ (-100kpa), 0-10kpa~100MPa.

Product Description

Application
This series non cavity pressure transmitter can be used to measure & control liquids pressure in:
Hydraulic/ Pneumatics
Industrial test and control
Mechanical engineering
Building automation
Ocean and ship
Oil & Gas and etc.

Description
WP435A Non-cavity pressure transmitter adopts advanced imported sensor component with high precision, high stability and anti-corrosion. This pressure transmitter can work stably for a long time under maximum 60 Celsius temperature work environment. Laser welding technology is used between sensor and stainless steel house, without pressure cavity. They are suitable to measure and control the pressure in all kinds of easy to clog, sanitary, sterile, easy to clean environment. With the feature of high working frequency, they also are fit for dynamic measurement.

Features
Various signal outputs
HART protocol is available
High precision 0.1%FS, 0.2%FS, 0.5%FS
Flush diaphragm, corrugated diaphragm, clamp
Operating temperature: -40~ 60 Celsius
4bits or 5bits LCD intelligent display
Pressure range: 0--10~ -100kPa, 0-10kPa~100MPa
100% Linear meter or 3 1/2 LCD or LED digital indicator is configurable
Explosion-proof type: Ex iaIICT6, Ex dIIBT4

Specification
Pressure range: 0-(-10)~ (-100kPa), 0-10kPa~100MPa.
Pressure type: Gauge pressure(G), Absolute pressure(A), Sealed pressure(S), Negative pressure (N).
Output signal: 4-20mA (1-5V); 4-20mA with HART protocol; 0-10mA(0-5V);
Power supply: 24V DC;
Electrical connection: Cable, Terminal block
Compensation range: -10-70C
Operation temperature: -40-60C
Overload pressure: 150%FS
Pressure connection: M20*1.5, G1/2,
Accuracy: 0.5%FS, 1.0 %FS,
Wetted part: Stainless steel 304 or 316L

Ordering guide: WP435A-1.6MPa-M20*1.5-Terminal block-4-20mA-24VDC-0.5%FS



Our service:

1.    We have rich experience of OEM, factory can manufacture according to your request.

2.    We could also send the goods which is labelling your brand name to your customer's warehouse directly.

3.    We can offer you neutral packing without our logo and company information.

4.    Warranty: We offer 12 months warranty for all of our products from shipping date;

5.    You will enjoy free repair service for failures found within the warranty, if there are any problems of manufacturing quality;

6.    We provide paid repair services for instrumentation damages beyond the warranty period or not arising from manufacturing quality problem.
