| Prod Model: |
TM-RN |
| Markets: |
North America,South America,Eastern Europe,Oceania,Western Europe |
| Copper Purity: |
>99.9% |
| Coating: |
Tin |
| Size: |
1.5-60(Mm2) |
| Wire Range: |
0.5-60(Mm2) |
| Application: |
Conduct Electricity |
| Material: |
Copper |
| Interface Type: |
Standard |
| Brand: |
Es |
| Shape: |
Ring |
| Type: |
Crimp Terminal |
| Certification: |
Reach, RoHS |
Product Description
We are a professional manufactuer and exporter established over 18 years, and with our European Sales Centre and a large warehouse based in the UK. We are specialised in making and supplying a wide range of pre-insulated and un-insulated terminals and other cable accessory products with many international standards and approvals, such as CE, RoHS, REACH, SGS and UL etc.
Our terminals are of the top consistent quality from China, with excellent design, function and performance. We are ISO 9001 certified company which for many years, has been providing professional, reliable and efficient services in all our operations including production, quality inspection and control, shipping, fast clearance and delivery services across the UK and Europe and also many other countries.
We have a full range of terminals, in various types and colours. We can provide standard, neutral packaging, or special customised packaging to meet with our customers very different requirements.
We are also specialised in making toolings according to customers' own drawings and samples with fast turnaround time and cost-effective solutions.
| SPECIFICATIONS |
| MATERIAL: | HIGH CONDUCTIVITY COPPER TO BS2871 |
| PURITY: | >99.9% |
| COATING: | TIN |

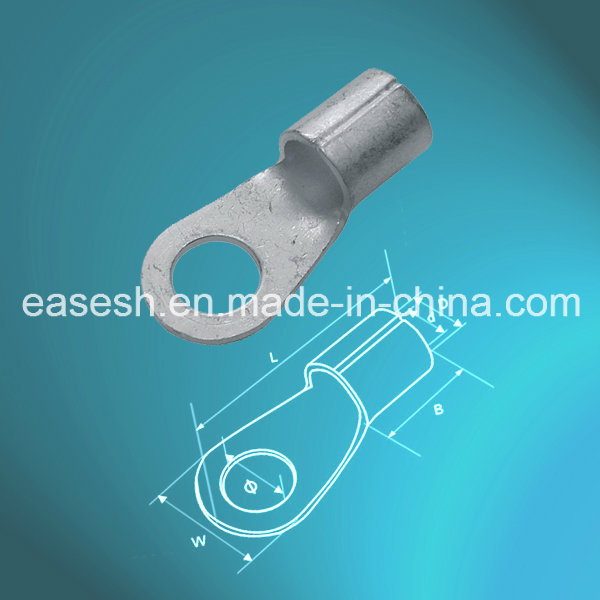

| EASE CODE | SIZE | Φ | D | d | W | L | B | T | WIRE RANGE |
| (mm)2 |
| TM-RN-1.5/3 | 1.5 | 3.7 | 3.4 | 1.7 | 5.5 | 11.5 | 4.5 | 0.8 | 22~16AWG 0.5~1.5mm2 |
| TM-RN-1.5/3A | 3.2 | 5.5 | 11.5 | 4.5 |
| TM-RN-1.5/3M | 3.7 | 6.6 | 14.4 | 4.5 |
| TM-RN-1.5/4 | 4.3 | 8.0 | 15.8 | 4.5 |
| TM-RN-1.5/4M | 4.3 | 6.6 | 14.4 | 4.5 |
| TM-RN-1.5/5 | 5.3 | 8.0 | 15.8 | 4.5 |
| TM-RN-1.5/6 | 6.4 | 11.6 | 21.7 | 4.5 |
| TM-RN-1.5/8 | 8.4 | 11.6 | 21.7 | 4.5 |
| TM-RN-1.5/10 | 10.5 | 13.6 | 26.0 | 4.5 |
| TM-RN-2.5/3 | 2.5 | 3.7 | 4.0 | 2.3 | 8.5 | 16.8 | 4.8 | 0.8 | 16~14AWG 1.5~2.5mm2
|
TM-RN-2.5/3A | 3.2 | 8.5 | 16.8 | 4.8 |
| TM-RN-2.5/3M | 3.7 | 6.6 | 14.4 | 4.8 |
| TM-RN-2.5/4 | 4.3 | 8.5 | 16.8 | 4.8 |
| TM-RN-2.5/4M | 4.3 | 6.6 | 14.4 | 4.8 |
| TM-RN-2.5/5 | 5.3 | 9.5 | 16.8 | 4.8 |
| TM-RN-2.5/6 | 6.4 | 12.0 | 21.8 | 4.8 |
| TM-RN-2.5/7 | 7.1 | 12.0 | 21.8 | 4.8 |
| TM-RN-2.5/8 | 8.4 | 12.0 | 21.8 | 4.8 |
| TM-RN-2.5/10 | 10.5 | 13.6 | 25.5 | 4.8 |
| TM-RN-4/4 | 4.0 | 4.3 | 5.0 | 3.2 | 9.5 | 20.0 | 6.8 | 0.8 | 14~12AWG 2.5~4mm2 |
| TM-RN-4/5 | 5.3 | 9.5 | 20.0 | 6.8 |
| TM-RN-4/6 | 6.4 | 12.0 | 21.4 | 6.8 |
| TM-RN-4/8 | 8.4 | 12.0 | 21.4 | 6.8 |
| TM-RN-6/3 | 6.0 | 3.7 | 5.6 | 3.5 | 9.5 | 19.8 | 6.8 | 1.0 | 12~10AWG 4~6mm2 |
| TM-RN-6/4 | 4.3 | 9.5 | 19.8 | 6.8 |
| TM-RN-6/5 | 5.3 | 9.5 | 19.8 | 6.8 |
| TM-RN-6/6 | 6.4 | 12.0 | 25.8 | 6.8 |
| TM-RN-6/6S | 6.4 | 12.0 | 22.5 | 6.8 |
| TM-RN-6/8 | 8.4 | 15.0 | 28.0 | 6.8 |
| TM-RN-6/10 | 10.5 | 15.0 | 28.0 | 6.8 |
| TM-RN-10/3 | 10.0 | 3.7 | 7.0 | 4.5 | 10.0 | 21.0 | 8.0 | 1.15 | 10~8AWG 6~10mm2 |
| TM-RN-10/4 | 4.3 | 10.0 | 21.0 | 8.0 |
| TM-RN-10/5 | 5.3 | 10.0 | 21.0 | 8.0 |
| TM-RN-10/6 | 6.4 | 11.0 | 22.5 | 8.0 |
| TM-RN-10/8 | 8.4 | 14.0 | 27.0 | 8.0 |
| TM-RN-10/10 | 10.5 | 18.0 | 30.0 | 8.0 |
| TM-RN-10/13 | 13.0 | 18.0 | 30.0 | 8.0 |
| TM-RN-16/5 | 16.0 | 5.3 | 8.5 | 5.9 | 11.0 | 25.5 | 11.0 | 1.2 | 8~6AWG 10~16mm2 |
| TM-RN-16/6 | 6.4 | 11.0 | 25.5 | 11.0 |
| TM-RN-16/8 | 8.4 | 14.0 | 31.0 | 11.0 |
| TM-RN-16/ | 10.5 | 18.0 | 33.0 | 11.0 |
| TM-RN-16/13 | 13.0 | 18.0 | 33.0 | 11.0 |
| TM-RN-25/6 | 25.0 | 6.4 | 11.0 | 7.8 | 12.0 | 31.0 | 11.0 | 1.5 | 6~4AWG 16~25mm2 |
| TM-RN-25/8 | 8.4 | 16.0 | 34.0 | 11.0 |
| TM-RN-25/10 | 10.5 | 18.0 | 35.0 | 11.0 |
| TM-RN-25/13 | 13.0 | 18.0 | 35.0 | 11.0 |
| TM-RN-40/6 | 40.0 | 6.4 | 13.0 | 9.6 | 15.3 | 37.7 | 14.0 | 1.6 | 4~2AWG 25~40mm2 |
| TM-RN-40/8 | 8.4 | 15.3 | 37.7 | 14.0 |
| TM-RN-40/10 | 10.5 | 15.3 | 37.7 | 14.0 |
| TM-RN-40/13 | 13.0 | 22.0 | 43.0 | 14.0 |
| TM-RN-60/8 | 60.0 | 8.4 | 15.3 | 11.9 | 22.0 | 44.0 | 17.0 | 1.7 | 2~0AWG 40~60mm2 |
| TM-RN-60/10 | 10.5 | 22.0 | 44.0 | 17.0 |
| TM-RN-60/12 | 13.0 | 22.0 | 44.0 | 17.0 |
| TM-RN-1.5/3US | 1.5 | 3.7 | 3.2 | 1.6 | 6.6 | 17.9 | 6.5 | 0.76 | 22~16AWG 0.5~1.5mm2 |
| TM-RN-1.5/4US | 4.4 | 8.0 | 18.7 | 6.5 |
| TM-RN-1.5/5US | 5.0 | 8.0 | 19.0 | 6.5 |
| TM-RN-1.5/6US | 6.8 | 11.8 | 23.6 | 6.5 |
| TM-RN-2.5/3US | 2.5 | 3.7 | 4.0 | 2.3 | 8.0 | 20.2 | 6.5 | 0.8 | 16~14AWG 1.5~2.5mm2 |
| TM-RN-2.5/4US | 4.4 | 8.0 | 20.2 | 6.5 |
| TM-RN-2.5/5US | 5.0 | 8.0 | 20.2 | 6.5 |
| TM-RN-2.5/6US | 6.4 | 11.8 | 23.5 | 6.5 |
| TM-RN-2.5/8US | 8.4 | 11.8 | 23.5 | 6.5 |
| TM-RN-2.5/10US | 10.0 | 13.5 | 24.3 | 6.5 |
| TM-RN-6/4US | 6.0 | 4.4 | 5.6 | 3.5 | 9.4 | 22.85 | 6.75 | 1.0 | 12~10AWG 4~6mm2 |
| TM-RN-6/5US | 5.0 | 9.4 | 22.85 | 6.75 |
| TM-RN-6/6US | 6.8 | 13.3 | 25.3 | 6.75 |
| TM-RN-6/8US | 8.4 | 13.3 | 25.7 | 6.75 |
| TM-RN-6/10US | 10.0 | 15.0 | 26.8 | 6.75 |
| TM-RN-6/12US | 13.2 | 18.2 | 28.5 | 6.75 |
