Non-Metallic Strength Member Loose Tube Double Jacket Single Armored Fiber Optic Cable (GYFTY53)

Name: Non-Metallic Strength Member Loose Tube Double Jacket Single Armored Fiber Optic Cable (GYFTY53)
Brand: all-electronics-online.com
SKU: 710747765
Availability: InStock
Rating: 5 (109 reviews)

Price:	NegotiableKM
Trade Terms:	FOB,CFR,EXW
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Description:

Non-Metallic Strength Member Loose Tube Double Jacket Single Armored Fiber Optic Cable

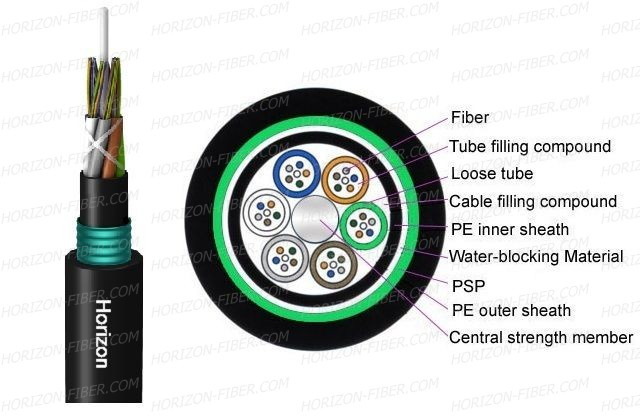

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied. The cable is completed with a PE outer sheath.

Features:

Different fiber types available
Double Jacket, Single Armor, UV Stabilized
Water blocked, Rodent Resistance, Anti-ballistic construction
Excellent mechanical and enviromental performance
Medium weight and flexibility
High tension strength available

Applications:
Outdoor duct, aerial and direct buried application
Long haul communication system
Subscriber and local area network
Voice, data, video and image system

Standard:
Telcordia GR-20-CORE/ IEC 60793/ IEC 60794

Fiber Count	Out sheath Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage temperature
Fiber Count	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(C)
24	12.0	155.00	3000	1000	3000	1000	20D	10D	-40+60
36	12.0	155.00	3000	1000	3000	1000	20D	10D	-40+60
42	12.0	155.00	3000	1000	3000	1000	20D	10D	-40+60
48	13.0	155.00	3000	1000	3000	1000	20D	10D	-40+60
60	13.0	185.00	3000	1000	3000	1000	20D	10D	-40+60
72	13.0	215.00	3000	1000	3000	1000	20D	10D	-40+60
96	14.5	215.00	3000	1000	3000	1000	20D	10D	-40+60
144	18.3	275.00	3000	1000	3000	1000	20D	10D	-40+60

Prod Model:	GYFTY53
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Direct Buried/Duct/Aerial Application
Type:	G.652d/G.655/Om1/Om2/Om3
Connection Structure:	GYFTY53
Certification:	ISO9001:2008,CE,SGS,RoHS
