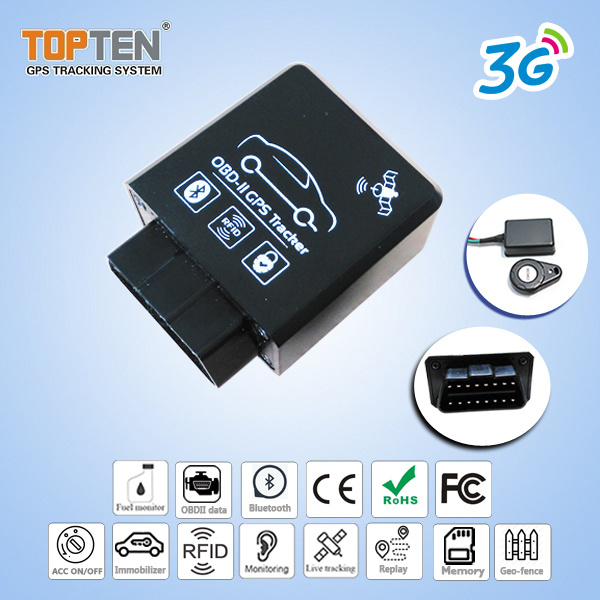

OBD 3G GPS Tracker with Remote Diagnostics RFID Control
TK228 is plug and play design,It is the integration of GPS tracker + RFID Car alarm + Remote Diagnostics;
Easy Setup,stable for usage. update with remote diagnostics function. Simple real time trace.

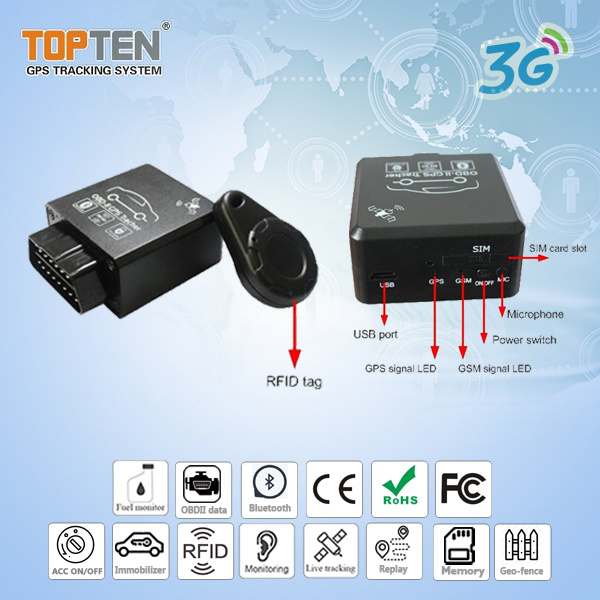

Installation for 3G GPS Tracker:

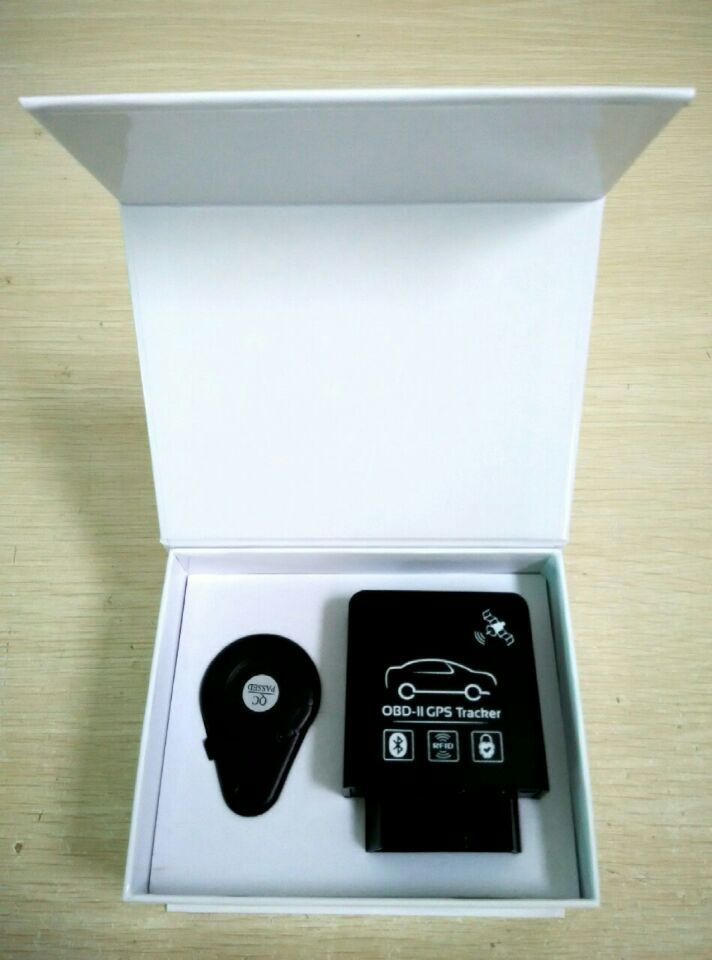

Package Gift Box for 3G GPS Tracker:

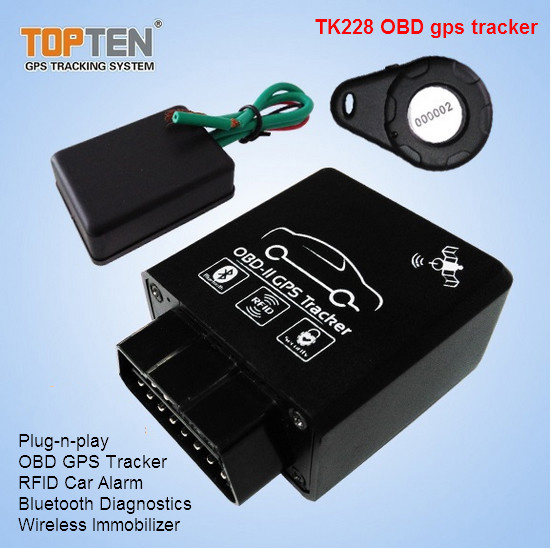

Specification for TK228 OBD gps tracker:
1. Plug & play design with OBD-II connector, compatible with all the vehicles with OBD-II connector, supports most CAN-BUS communication protocols;
2. It is the integration of GPS tracker + RFID car alarm + Bluetooth diagnostics;
3. Arm/disarm by SMS/phone call, or by 2.4G RFID tag automatically;
4. Check the real physical address (such as city name, street name.) directly;
5. Track by SMS/website to get the latitude, longitude, speed, direction & odometer etc.;
6. Movement alarm, Over-speed alarm, Geo-fence alarm;
7. Engine on alarm, power failure alarm, vibration alarm;
8. Anti-tamper alarm. Once the device is disconnected, it will trigger the alarm;
9. Built-in shock sensor for power saving & triggering vibration alarm;
10. Monitor the voice;
11. Supports 2.4G long-distance contactless RFID function(optional);
12. Keyless RFID car alarm function(optional);
13. Accurate odometer & speed reading directly via CAN-BUS;
14. Data logger 8Mb for offline GPS waypoint;
15. Read the vehicle error code & clear the error code ;
16. Built-in rechargeable backup battery; when the car battery is cut off or damaged, the built-in backup battery can work for emergency check, and the system will send out power failure alert immediately.
17. Two kinds of location information; user can check the GPS latitude, longitude, speed, direction. If there is no GPS signal, user could also locate the car by GSM base station code.
18. Remote diagnostics function. Transmission of the following data via blue-tooth or GPRS network:
(1) Battery's voltage, RPM, speed, TAP throttle opening, engine load, coolant temperature, fuel consumption, odometer, error code & times, acceleration times & deceleration times;
(2) Driver behavior data: ignition time, total driving time, total idling time, average engine hot-start time, average speed, history high speed, history RPM, total acceleration times & total deceleration times.
| Working voltage: | +6.0 ~+45VDC/1.5A |
| Backup battery: | Rechargeable 3.7V 200mAh Li-ion battery |
| Dimension (main unit): | 54.0*51.5*28.5(mm) |
| GSM frequency: | Quad-band: 850MHz/900MHz/1800MHz/1900MHz |
GPS chipset: | U-blox7 chipset |
| Working temperature: | -20 ~ 85ºC |
| Humidity: | 0 ~ 95% |
| GPS receiving channel: | 56 channels |
| Working frequencies: | 1575.42Mhz C/A(GPS) |
| Weight (main unit): | 73g |

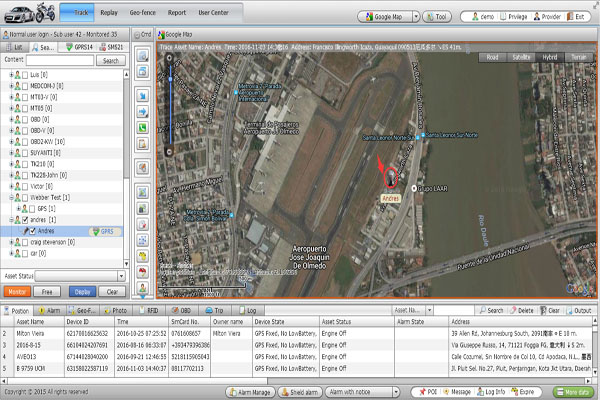

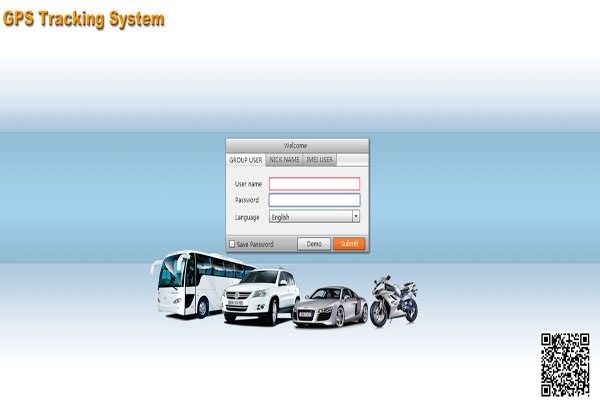

Multifunction New GPS Tracking Platform. Demo account for login:
www.toptent-rack.com username: abcdeee password: 111111

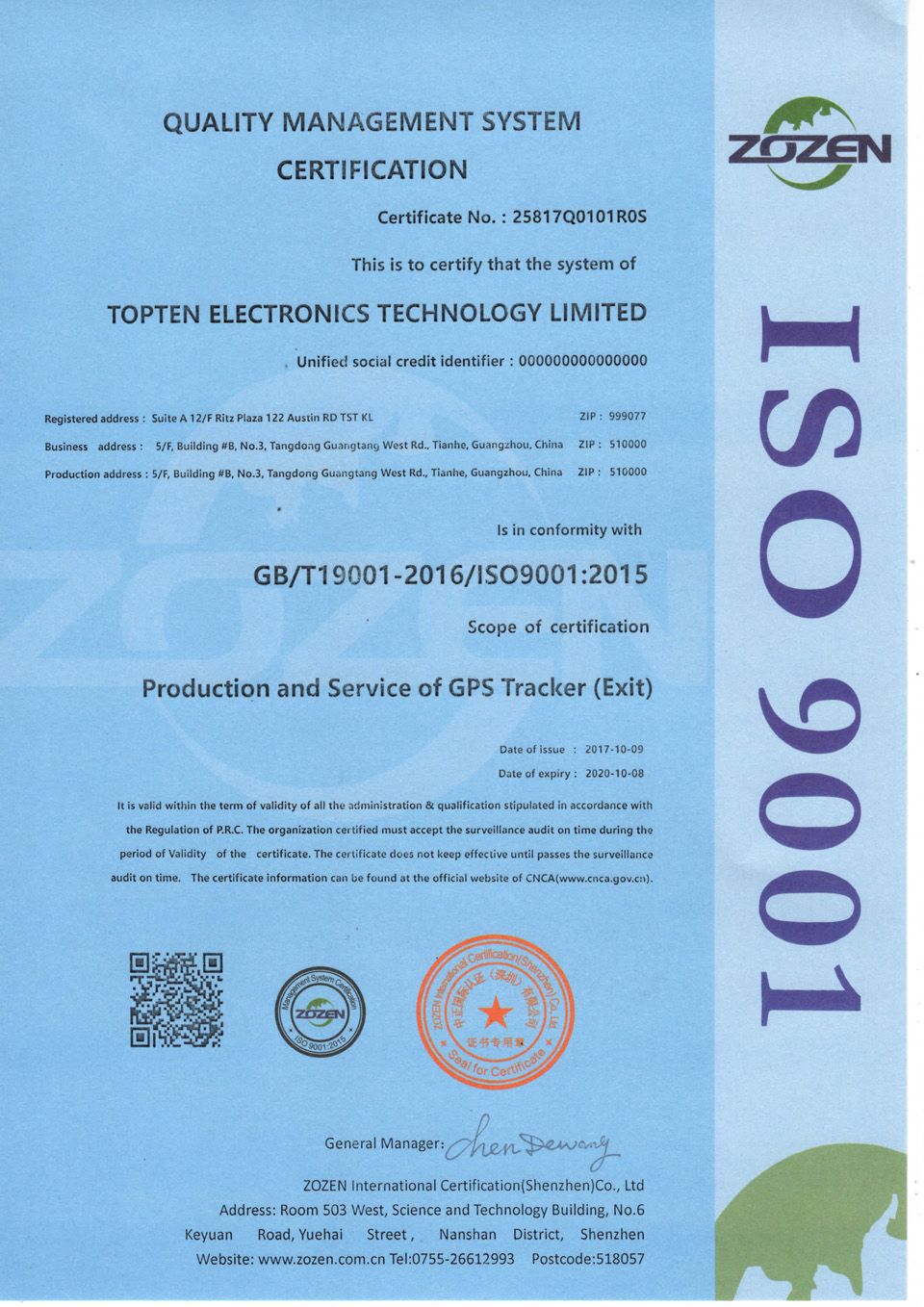

Certificate for our factory: ISO 9001
