| Prod Model: |
OBDII GPS Tracking tk306 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
120g |
| Feature: |
OBD Tracker, Wireless, Diagnostic Function |
| Shock Sensor: |
Yes |
| Warranty Time: |
12 Months |
| Packaging: |
40 Unit /Carton in Standard Color Box |
| Delivery Time: |
2-3 Business Days |
| OEM: |
Yes |
| Certificate: |
CE FCC ISO |
| Network: |
GSM/GPRS |
| Tracking System: |
SMS, Phone APP, Web Platform |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GPS, GSM, GPRS Tracking System |
| Port Number: |
20 |
| Model: |
Tk306 Obdii GPS Tracker |
| Screen Size: |
No Screen |
| Brand: |
Coban Baanool |
| Certification: |
CE FCC ISO |
Product Description

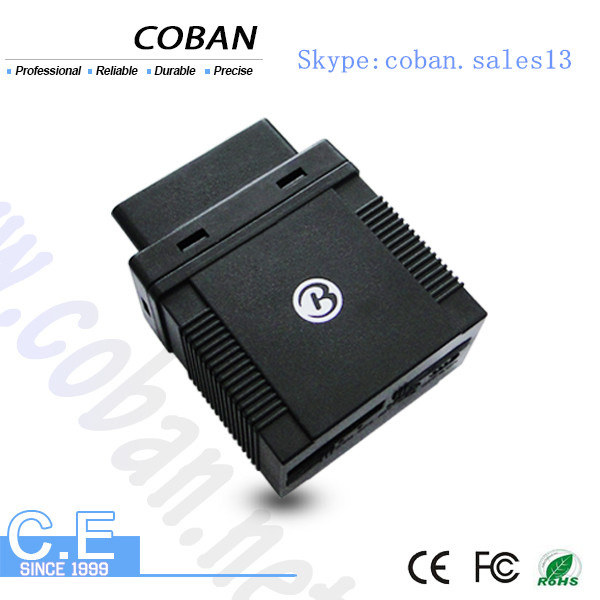

Obdii GPS Tracking Tk306 OBD2 GPS with Fuel detecting & mileage report
Top Quality , Factory Price , 2 days delivery , 12 months Warranty.
Model: GPS tracker TK-306
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. Main Function discription
1.Vehicle OBD II tracker (9-40V)
2.Location based service(LBS) + GPS double real time tracking solution Monitor
3.SOS panic button
4.Geofence,movement,overspeed alarms.low battery, ext.power off alarm.
5.Alarms under ARM :Shock/ACC alarms.
6. Request for OBD data by SMS--Send Obdmsg+password to gps device,it will return below
vehicle info .as following :
ODO: Accumulative mileage
FLI: Remaining fuel
AF: Average Fuel
Dtime: Driving time
speed: speed
Pload: Power load
TEMP: Water temperature
ATP: Throttle percentage
RPM: Engine speed
BAT: battery voltage
DTC: diagnostic trouble code
7.Notification of Vehicle fault nd maintenance notification
8.multi power-saving mode :
Sleep by time / shock sensor
deep sleep
awake at specific time
9.Save GPRS traffic mode
10.Built-in memory for 16,000 positions
11.Built-in 200 mA polymer battery
12.SMS tracking on cell phone with google map link
13.Absolute street address by SMS
14.Web server, free PC tracking soft, Mobile phone APP
Specifications:
Content | Specification |
| DIM | 64.5×50×27mm |
| Weight | 60g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -165dBm |
| GPS Accuracy | 5m |
| GPS Start Time | Cold status 30s
Warm status 11s
Hot status 1s |
| Backup Battery | Chargeable changeable 3.7V 200mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
OBDII GPS tracker Technology parameter:
*Network: GSM/GPRS
*Band: 850/900/1800/1900Mhz
*GPS sensitivity: -159dBm
*GPS accuracy: 5m
*Time To First Fix:Cold status 45s, Hot status 1s
How to tracking ?
The GPS devices support phone tracking and 16 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...)
Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: simple & useful real time tracking via our website www.baanool.net
E >: IOS and Android APP
Web based online tracking system www.gpstrackerxy.com user id: demo, password:8888
Full package :
Warranty
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service 3
.Customize design in bulk order
