OD 22mm, 32 Circuits with 4mm Though Hole Slip Ring
| Price: |
US $ 120/Piece |
| Min Order: |
3/Piece |
| Pay Type: |
T/T,Western Union |

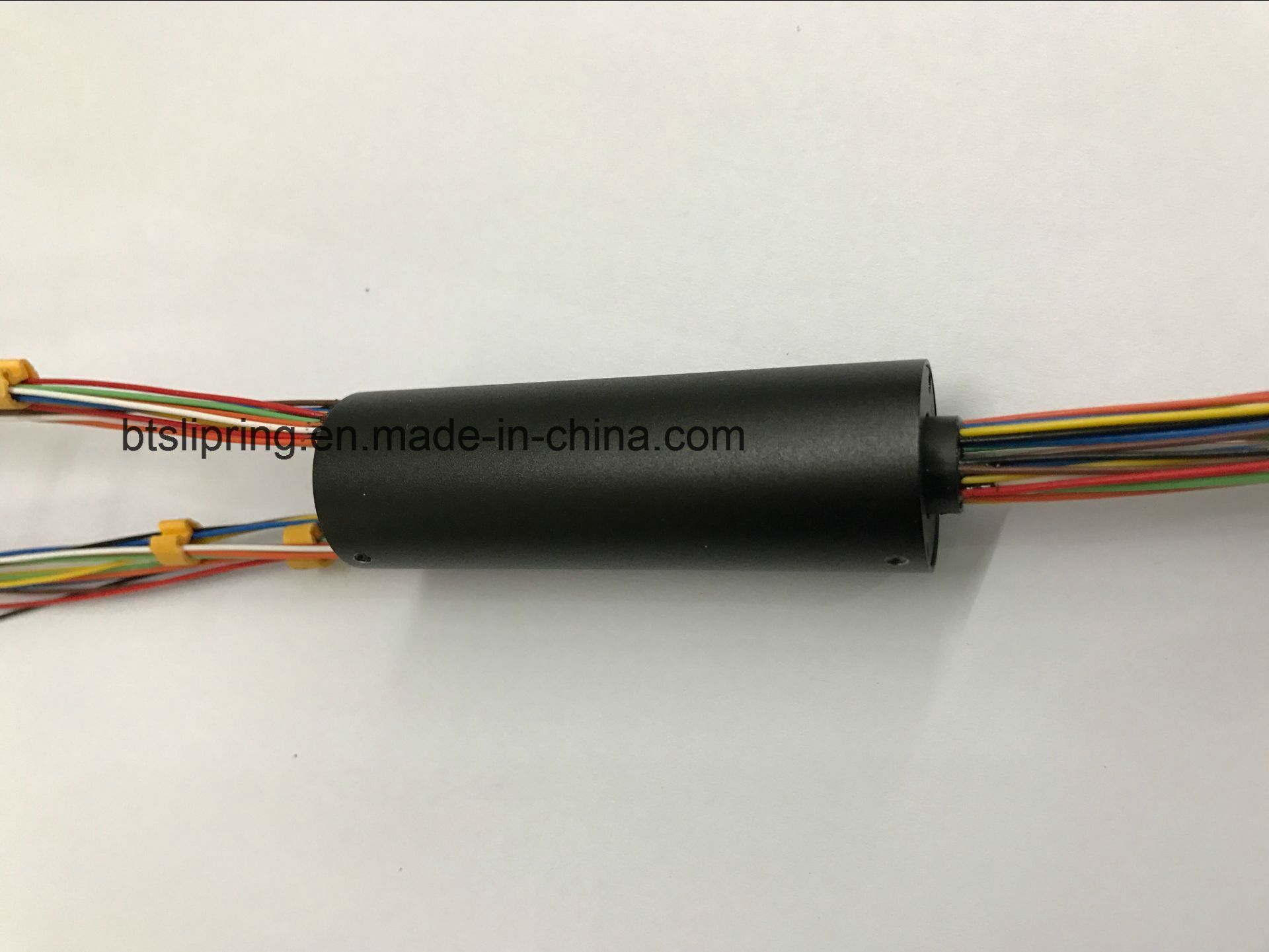

Electrical through hole slip ring with 4mm inner hole----BTH0422-3202 A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A standard through slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. Its inner part rotates with a rotating shaft pass through the inner hole, so we call it " through hole slip ring" It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints. Standard Through hole slip ring BTH0422-3202 Parameters:Mechanical :| Working speed | 500rpm |
| Operating temperature | -40ºC~ +100ºC |
| Contact material | Precious metal |
| IP Grade | IP 54 |
Electrical:| Circuit | 32 |
| Current | 2A |
| Voltage | ≤380V |
| Dielectric strength | ≥1000V@50Hz between each circuit |
| Insulation resistance | 1000MΩ@ 500VDC |
| Electric noise | ≤0.007Ω |
| Lead wire size | 26AWG, UL, color Teflon, silver or tin plated |
| Lead wire length | 300mm |
| Life-span | 120,000,000rounds |

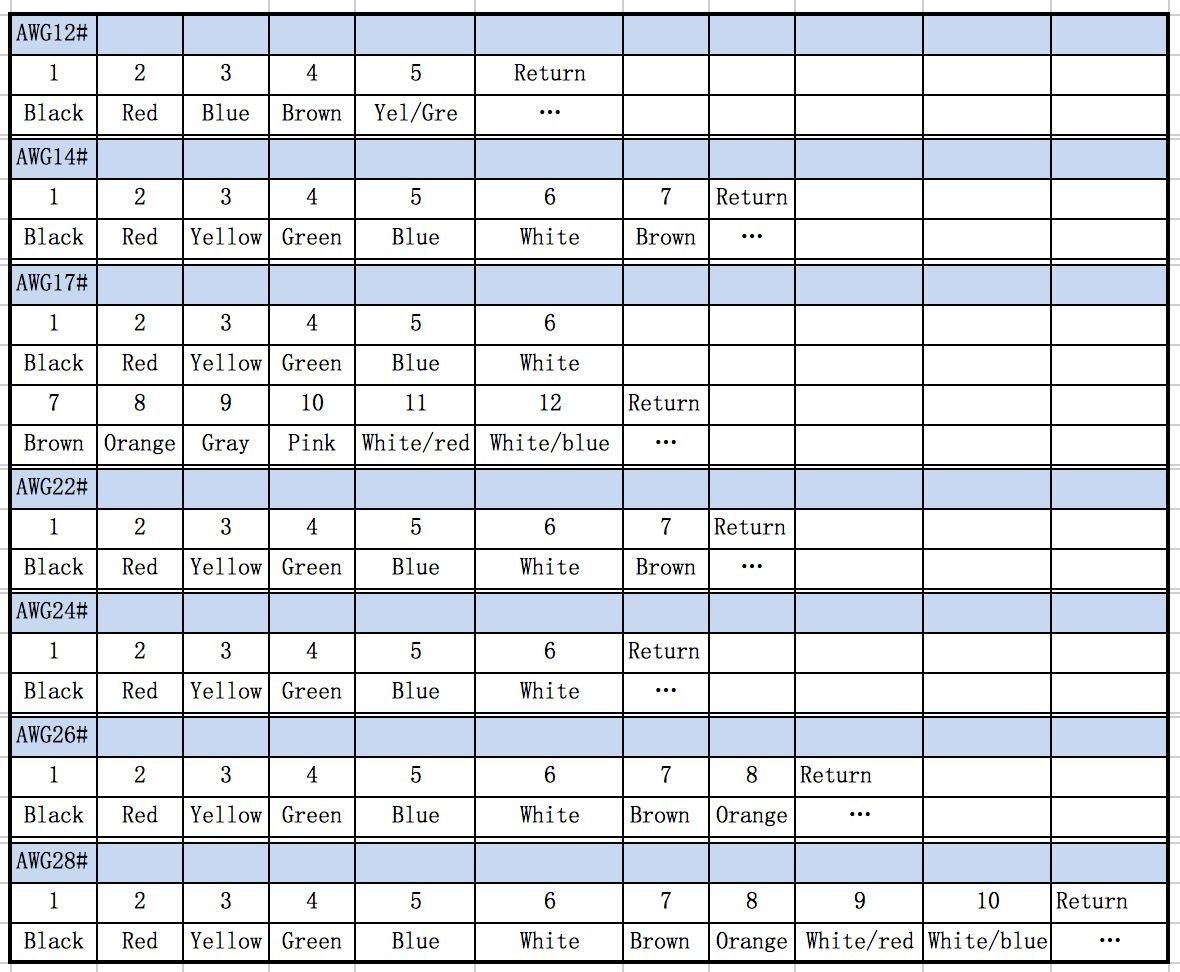

Wire color code:
Features of Standard Through hole slip ring BTH0422:- Low noise
- Wear-resisting
- Long life-span
- Good impact resistance
- Signal/Data and current compatible
- Workable in hostile environment(-40ºC~ +100ºC)
- Flexible design for special requirements
Options of Standard Through hole slip ring BTH0422:- Circuits
- Loading of each circuit
- Wire length
- Inner hole /outer hole diameter or length
- Higher IP grade
- Working speed
- Gold contacting
- Housing color
Typical application of Standard Through hole slip ring BTH0422:Aerospace / Defense • Armored vehicle turrets, IR and EO systems• Missile seeker gimbals and inertial systems • Helicopter de-ice systems, EO / IR trackers and target systems• Fixed-wing aircraft - EO / IR trackers, fire control systems, surveillance systems and targeting systems• Missile counter measures• Space - solar array mechanisms• Shipboard / submersible - navigation systems and fire control radar• Surveillance systems Industrial • Medical equipment and devices • Robotics• Index tables• Semiconductor handling • Pan tilt cameras• Packaging and processing equipment • Cable reels• Wind energy• CT scanners Marine • Remote operated vehicles (ROV)• Seismic surveying• Oceanographic winches• Subsea communications and control• Floating production, storage and offshore loading (FPSO) • Diving • Marine instrumentation• Down hole / wire logging and drilling Advantages of slip ring manufacturer---ByTune:- Affordable price
- Quality guaranteed
- Response within 24 hours
- Prompt delivery
- Reliable package & shipment
- Flexible & quick customization
Delivery time and shipment of ByTune:- 2 weeks ARO
- By UPS ,DHL or FedEx (depends on your location) 3 days door to door service
| Prod Model: |
BTH0422-3202 |
| Working Speed: |
500rpm |
| Protection: |
IP54 |
| Contacting Material: |
Gold or Silver |
| Insulation: |
1000 Mohm |
| Electrical Noise: |
7mohm |
| Wire Length: |
300mm |
| Circuits: |
32 |
| Temperature: |
-40c~ +100c |
