Products Feature

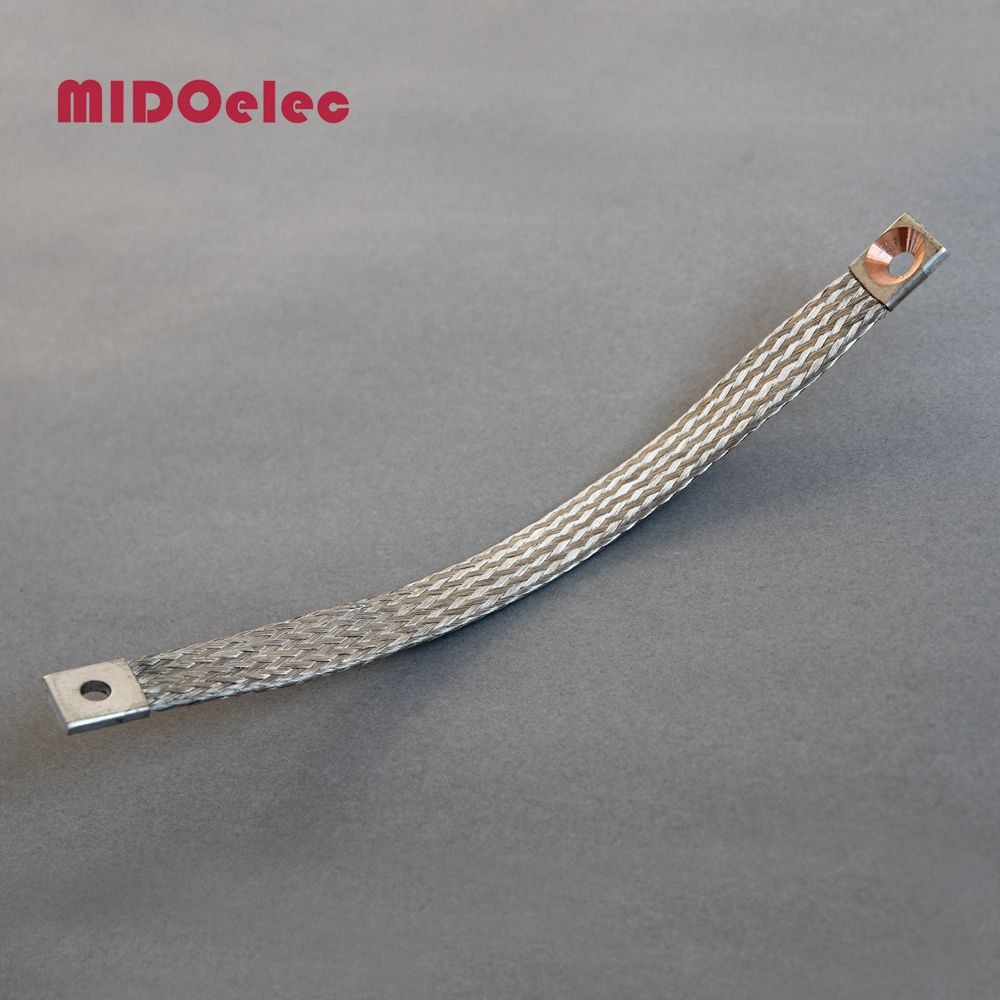

Flexible copper connectors in solderless pressed desigh
Standard design
Uncoated or tinned Copper braid,flexible wire-0,05mm(standard)or0,05/0,07/0,10 mm on request with solderless pressed contact areas made out of tinned or bear Copper tubes.
Contact areas
contact areas rectangular without bending protection(standard).With or bending protection only on one side on request.It is also possible to change the length of all contact areas.
Drilling
Standard design without drilling.On request drilling according to customers' wishes are available.
Insulation
On request deliveradle also in non-insulated design.Standard material for insulated desigh is a PVC-tube or materials on request.Liquid resistances Available with protected insulation against liquids or moisture on request.
Special designs
In special design we deliver also connectors made out of tinned wires or with coated contact areas (tin-silver plated) or in coordination with your application according to your drawings samples or wishes.
1. thermal conductivity/seal airtight/electromagnetic radiation shielding
2. good electric performance/easy installation
| Cross-section(mm2) | Current(A) | Dimensions(mm) |
| | | A | B | D | E | F | S | L |
| 70 | 300 | 30 | 15 | 7 | 7.5 | 15 | 8.5 | As Requires |
| 95 | 360 | 40 | 20 | 9 | 10 | 20 | 8.2 |
| 120 | 420 | 40 | 20 | 9 | 10 | 20 | 10 |
| 150 | 480 | 50 | 25 | 11 | 12.5 | 25 | 11.5 |
| 185 | 570 | 50 | 25 | 11 | 12.5 | 25 | 13.5 |
| 240 | 670 | 60 | 32 | 11 | 16 | 32 | 12.8 |
| 300 | 780 | 80 | 40 | 14 | 20 | 40 | 13.3 |
| 400 | 950 | 80 | 40 | 14 | 20 | 40 | 15.5 |
| 500 | 1100 | 80 | 40 | 14 | 20 | 40 | 23.5 |
| 600 | 1250 | 80 | 55 | 14 | 20 | 40 | 18.8 |
| 700 | 1375 | 80 | 55 | 14 | 20 | 40 | 20.2 |
| 750 | 1450 | 80 | 55 | 14 | 20 | 40 | 21.8 |
| 850 | 1550 | 80 | 55 | 14 | 20 | 40 | 22.3 |
| 1000 | 1800 | 80 | 55 | 14 | 20 | 40 | 26.9 |
If for dimension not in above,pls offer us your drawing or sample,we'll do special made for you.FAQ
