Products Feature

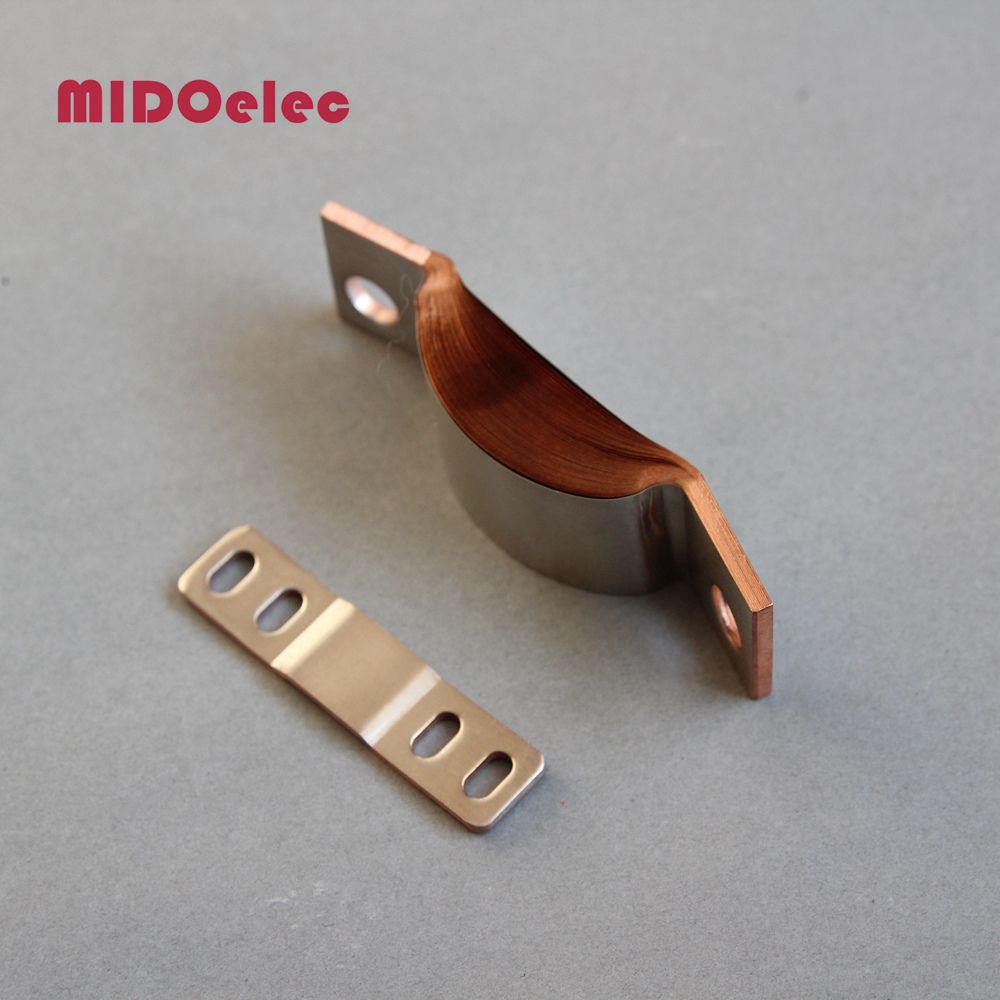

Flexible copper connectors in solderless pressed designnonperishable,higsoft,nonperishable,high conductivity.
Standard design
Uncoated or tinned Copper foils 0.1mm(standard)or0,15/0,20 mm on request with solderless pressed contact areas made out of tinned or bear Copper tubes.
Contact areas
contact areas rectangular without bending protection(standard).With or bending protection only on one side on request.It is also possible to change the length of all contact areas.
Drilling
Standard design without drilling.On request drilling according to customers' wishes are available.
Insulation
On request deliveradle also in non-insulated design.Standard material for insulated desigh is a PVC-tube or materials on request.Liquid resistances Available with protected insulation against liquids or moisture on request.
Special designs
In special design we deliver also connectors made out of tinned wires or with coated contact areas (tin-silver plated) or in coordination with your application according to your drawings samples or wishes.
1. thermal conductivity/seal airtight/electromagnetic radiation shielding
2. good electric performance/easy installation
| Cross-section(mm2) | Dimensions(mm) | Weight |
| | B | A1 | S | L | KG/PC |
| 200 | 40 | 40 | 5 | 230 | 0.48 |
| 320 | 40 | 40 | 8 | 230 | 0.77 |
| 400 | 40 | 40 | 10 | 230 | 0.96 |
| 480 | 40 | 40 | 12 | 230 | 1.15 |
| 600 | 40 | 40 | 15 | 230 | 1.28 |
| 800 | 40 | 40 | 20 | 230 | 1.92 |
| 250 | 50 | 50 | 5 | 250 | 0.65 |
| 400 | 50 | 50 | 8 | 250 | 1.04 |
| 500 | 50 | 50 | 10 | 250 | 1.3 |
| 600 | 50 | 50 | 12 | 250 | 1.55 |
| 750 | 50 | 50 | 15 | 250 | 1.95 |
| 1000 | 50 | 50 | 20 | 250 | 2.6 |
If for other dimension,pls offer your drawing or sample,we'll do special made for you.
FAQ
Q:How's the material?
A:Pure copper wire more than 99.9%.
Q:How can I get the catalogue fast?
A:Sending mail.we'll offer soon.
Q: Can I get some samples?
A: Yes,sample order is available but you have to pay the express cost.
Q: What's delivery time?
A: It's usually takes about 7 working days for small order and 15days for big order.
Q: What's your payment terms?
A: We usually accept all kinds of payment terms.Such as T/T,Westerm union,Cash.
Q: What's your warranty terms?
A: We offer 18 months warranty terms.
Q: Do you have the products in stock?
A: Depands on the goods,some items have,should offer us details for checking.
Q: Can I mixed different type in an order?
A: Yes,different models can be mixed up in one order.
Q: How does your factory do the quality control?
A: Quality is priority,we always attach the importance to quality control from the beginning to the end of the production.Every product will be fully assembled and carefully tested before packing and shipping.
Q: I would like to know if you have a partner for export?
A: Yes,Midoelec have the right to export and can sell product all over the word.
Our Services
1. More than 10 years on Insulator and Copper Connector
2. Main products: Busbar Insulator,Busbar,Copper Connector, SPD
3. Supply the product with different class with different price
4. Supply OEM service professionally.
Yueqing Mido is a professional factory in Copper flexible connector and SPD, have been in such line for more than 10 years, and start foreign trade since2013. We export our goods to South American, Korea, Malaysia, Thailand, Dubai and so on. The amount can reach 1 mIllion USD, and keep on raising every year. It is very goods we get feedback it is satifity all of our customers, no reject, no stock and going on order. We'll keep it to all our old and new customers.
Quality! Professiona! Responsible! Do our best for all of you!
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of"quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
