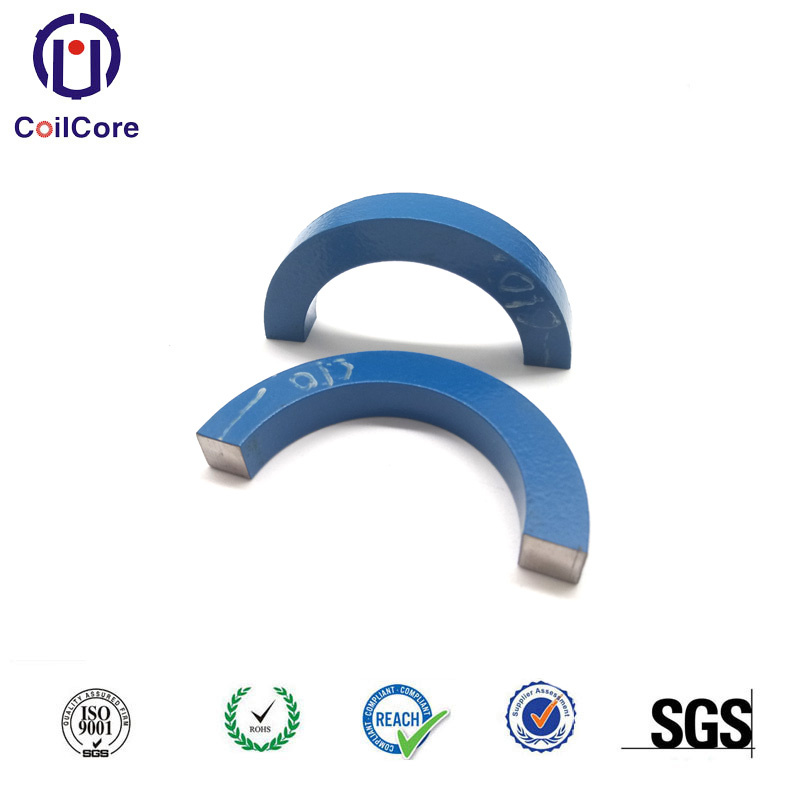

OEM Split Nanocrystalline Core Current Sensor Used in AC Drives

Name: OEM Split Nanocrystalline Core Current Sensor Used in AC Drives
Brand: all-electronics-online.com
SKU: 840494045
Availability: InStock
Rating: 4.4 (61 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Key Properties:
1. Inherit the simple structure of the traditional C cores
2. Clamp-on core design, safer, easier installation, portable, don't need to cut of the grid-power when adjust the inductance.
3. Comparing other materials, with high accuracy, due to nanocrystalline high permeability.
4. Energy conservation & environment protection, huge potential market

Main Application:
Widely used in high frequency, high power transformers for converters, in drives, traction, power supplies.

Flexible Design:

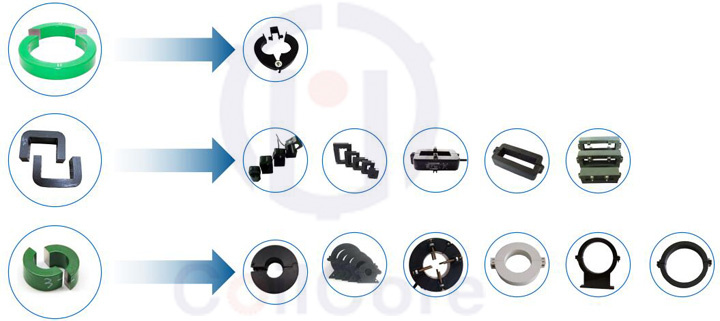

1. Various shape design supported

2. Not only Split Core, but Split current Transformer we produce.

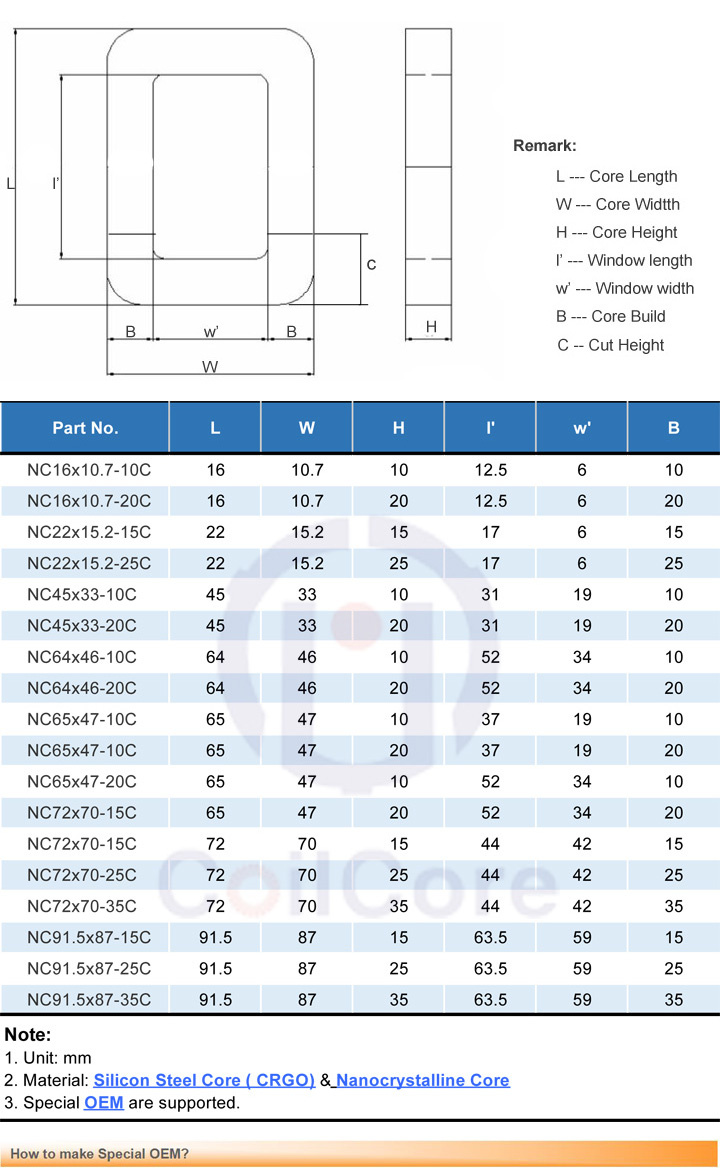

3. Customised Size as request. Our Common Standard for your first reference as below:

We can design & produce goods based on specifications & drawing, specification needed including:

1. Bare core size, Size finished, Acceptable tolerance.

2. What's Output Voltage in secondary when Input currency at primary @ 1:1 turns radio.

Addr :No.1 JiShan BuXia Lu,TianHe District, Guangzhou City, China
Tel :+86-20-85649266
Fax :+86-20-85649263

Send your Inquiry Details in the Below, Click "Send" Now!

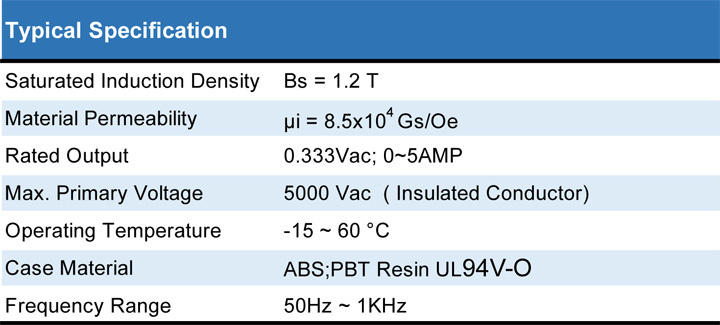

Prod Model:	NTC22X15.2-15C
Insulation Material:	Expocy Coating
Shape:	Split C Core
Core Material:	Nanocrystalline; Silicon Steel Core ( CRGO)
Standard Input Current:	5-600A
Material Permeability:	8.5X104 GS/OE
Protect Case:	High Compressive Strenght
Frequency:	50-400Hz
High Accuracy:	0.5s
Application:	Lighting
Type:	Current Transformer
Phase:	Single & Three

Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:

1. Common Mode Filter Chokes

2. Current Transformer

3. Differential Mode Chokes

4. Automotive Chokes (for car audio)

5. Magnetic Amplifier

6. PFC Chokes

7. ISDN Splitter

8. GFCI (Ground-Fault Circuit Interrupters)

9. ELCB (Earth Leakage Circuit Breaker)

10. ALCI(Appliance Leakage-Current Interrupters)

11. Core and Current Transformer for energy meters (Watt hour -meters )

We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. Our R&D team, LED by experienced professors and senior engineers, are dedicated themselves to develop new products to satisfy customers' requirements about the specification and package of the needed goods.

Based on "Faith, Innovation, Solidarity, Enterprise", following the policy of "persisting in technique innovation and scientific management, best quality, respectable customer", we are always trying to contribute to customers.
