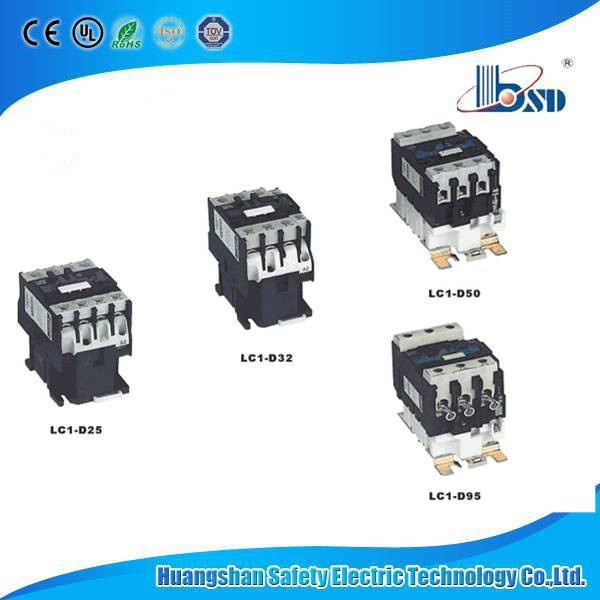

Old Type Electrical Magnetic AC Contactor (LC1-D)

Name: Old Type Electrical Magnetic AC Contactor (LC1-D)
Brand: all-electronics-online.com
SKU: 778701315
Availability: InStock
Rating: 4.8 (51 reviews)

Price:	US $ 2.1-7.35/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Product Description

1.General
LC1D series AC contactors are suitable for frequency 50/60Hz,rated insulation voltage up to 1000V,rated operation current 9~150A .It is mainly used for making and breaking electric circuits at a long distance & for frequent starting,stopping & controlling AC Motors.It is used in combination with thermal relay to compose a magnetic motor starter. The products comply with IEC60947-4.

2.Specifications
Type	Thermal Rated Current (A)	Rated Current AC-3 380V(A)	Control Power AC-3(KW)				Rated Insulation
			220V	380V	415V	660V	Voltage(V)	Aux.Contact
LC1-D09	20	9	2.2	4	4	5.5	660	3P+1NO+1NC
LC1-D12	20	12	3	5.5	5.5	7.5
LC1-D18	32	18	4	7.5	9	9
LC1-D25	40	25	5.5	11	11	15
LC1-D32	50	32	7.5	15	15	18.5
LC1-D40	60	40	11	18.5	22	30
LC1-D50	80	50	15	22	25	33
LC1-D65	80	65	18.5	30	37	37
LC1-D80	125	80	22	37	45	45
LC1-D95	125	95	25	45	45	45
LC1-D115	200	115	30	55	59	80
LC1-D150	250	150	40	75	80	100

Prod Model:	lc1d
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current:	9A-95A
Items:	LC1-D AC Contactor
Life Time:	10, 000, 000 Times
Service:	OEM & ODM
Printing:	as Per Customer's Logo
Advantage:	Good Price and Top Quality
Delivery Time:	2 Weeks
Rated Voltage:	24V 36V 110V 117V 220V 380V

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
