on) off (On) Momentary Large Black Rectangle Rocker Switch 6-Pin Dpdt

Name: on) off (On) Momentary Large Black Rectangle Rocker Switch 6-Pin Dpdt
Brand: all-electronics-online.com
SKU: 834637275
Availability: InStock
Rating: 4.4 (38 reviews)

Price:	US $ 0.11-0.14/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

The Main Technical Parameters

Item	Mini ON OFF Rocker Switch
Mterial	PA66 /PC
Rating	10A 125VAC/6A 250VAC
Contact Resistance	≤50MΩ
Insulation Resistance	≥500VDC100mΩ
OperatingTemperature	-25C~+85C
Ambient Temperature	-10ºC~+85 ºC
Dielectric Strength	1500VAC,1 Minute
Type	ROCKER SWITCH
Elactric life	>10000 Cycles
Electrical Life	>50000 Cycles
Terminals & Mid pins	Copper with silver plated
Contacts	Copper with compound silver
Terminals & Mid pins	Copper with silver plated

--Production Material---

Base PLASTIC	Nylon 66 T85
Button plastic	PC
Copper parts such as terminal	Copper
Terminal surface treatment	Silver plating
Contact	Ag or Composite silver
Spring	Tungsten steel
Cover plastic	PC

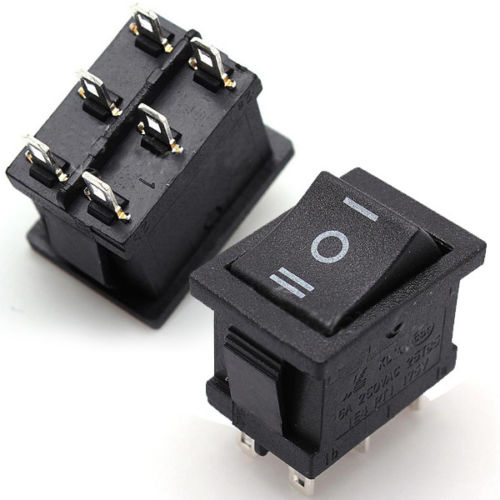

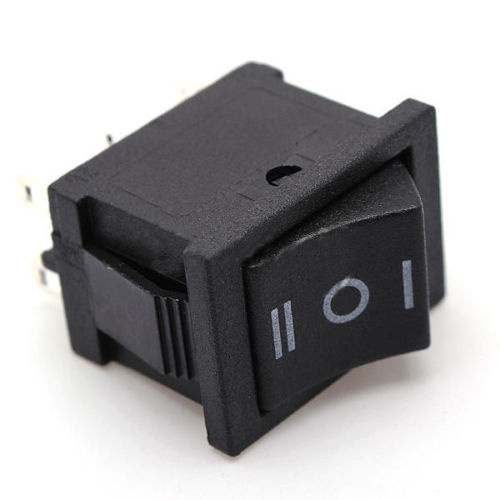

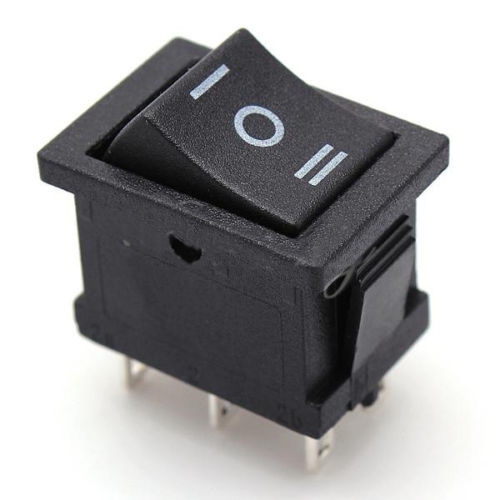

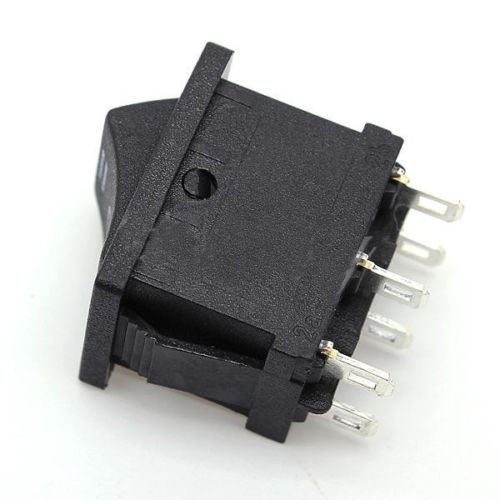

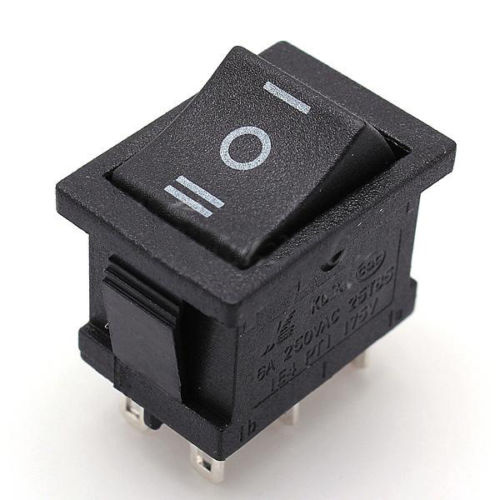

6 pin DPDT rocker switch on-off-on boat 3 position 16A 250VAC

Contact information

Prod Model:	KCD1AB3 BBB1
Usage:	Toys
Standard:	Standard
Lamp:	Without Lamp
Color:	Black
Certification:	TUV UL
Condition:	New
