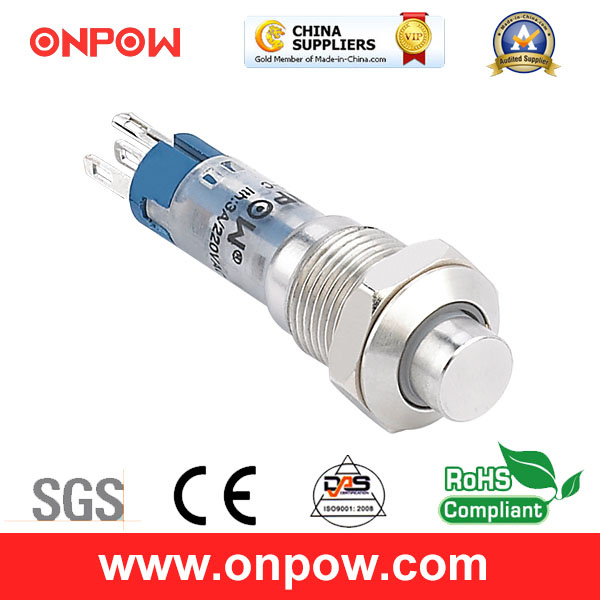

Onpow 10mm Push Button Switch (GQ10-K-11E/R/12V/S)
| Price: |
US $ 3.39-3.78/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
GQ10-K-11E/R/12V/S |
| Size: |
10mm |
| Switch Rating: |
0.5A/220VDC |
| Contact Configuration: |
1no1nc |
| IP Degree: |
IP40 |
| Type: |
Composite |
| Usage: |
Check Button |
| Kind: |
Single-pole on-off Switch |
Product Description
Part number:GQ10-K-11E/R/12V/SSize: Ø 10mmSwitch Rating: 0.5A/220VDCFront shape:High Round Head
Contact configuration: 1NO1NC
Operation type: Momentary / LatchingRing illuminatedLED color: Red (other options: Blue, Green, Yellow, Orange, white)LED voltage: 12V (other options: 6V, 24V, 110V, 220V)Crust material: Stainless steel (S)
Grades: IP40
Terminal type: Pin terminal(1.8*0.4)
Switch Rating| Rated Innsulation Voltage Ui | 250V |
| Thermal Current lth | 3A |
| Rated voltage | 12V | 24V | 110V | 220V |
Rated Operation
Current | AC 50/60 Hz | Resistive load | | | 1A | 0.5A |
| Inductive load | | | 0.7A | 0.5A |
| DC | Resistive load | 1A | 1A | 0.2A | |
| Inductive load | 0.7A | 0.7A | 0.1A | |
| Contact material | Silver Alloy |
Minimum Load:3V AC/DC 5mA(Reference)Application scope depends on operating environment and load typeLamp ratings| Lamp type | LED Lamp(AC/DC) |
| Rated voltage | AC/DC6V | AC/DC12V | AC/DC24V |
| AC/DC110V | AC/DC220V |
| LED color | Red,Green,Yellow,Orange,Blue,White |
| Life | 40,000 hours(Reference) |
| Dropping Way | 5,6,12,24V are with Inner resistor,other voltage need to connect an outer resistor |
Note:DC LED and other voltage can be made to order; Red&Green bi-color lamp(two pin) can be made to order. Specifications| Operating Temperature | -25ºC~+55ºC(no freezing)
Keep the air flowing around illuminated on pushbutton |
| Operating Humidity | 48~85%RH(no condensation) |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Strength | Between Contact and LED Pin | 1500V AC |
| Between Same electrode terminal | 1000V AC |
| Between Different electrode terminal | 2000V AC |
| Operation Travel | (Button) About 2.5mm |
| Solder Heat Resistance | 320ºC(or 30W soldering iron) no more than 2 seconds |
| Life | Mechanical | Momentary:200 |
| Electrical | More than 50 |
Pls contact us for BEST PRICE!! Also we can meet your special requirements: 1. Laser engraving for different symbol or Illuminated symbol. 2. Different metal body color can be made, like Red, Green, Yellow, Blue, White, Orange, Golden. 3.Special design for big diameter up to 35mm or small diameter to 8mm. 4. We accept different terms of payment, like PAYPAL, ESCROW and so on. 5.Other special requirement pls contact Mr. Puma (International trade manager) Puma chen ONPOW / ONPOW PUSH BUTTON MANUFACTURE CO., LTD. Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619 Tel: +86-577-62628788 MT: 86-13587700386 // Fax: +86-577-62623304 Work time: 8:00-11:30 13:00-17:00(Except Sunday)
