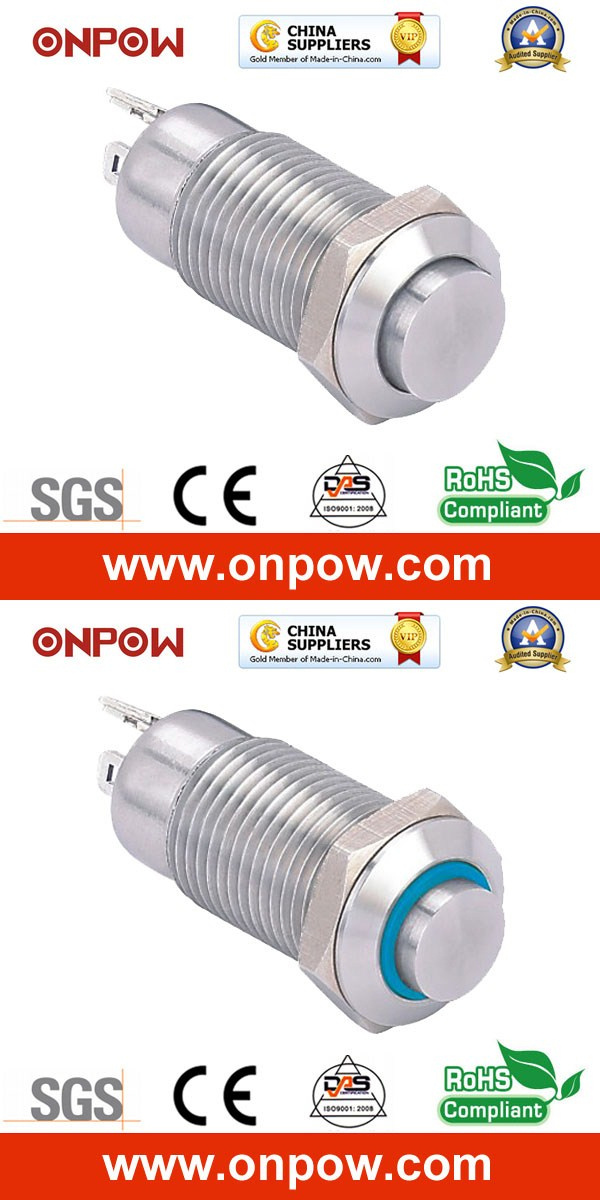

Onpow 12mm High Head Push Button Switch (GQ12-CH SERIES, CE, RoHS)
Price: |
US $ 2.1-2.9/Piece |
Trade Terms: |
FOB,EXW |
Min Order: |
1/Piece |
Pay Type: |
T/T,Paypal |
GQ12-C series is Latching Type Product which is developed on the basis of GQ12-A.Part number:GQ12-CH

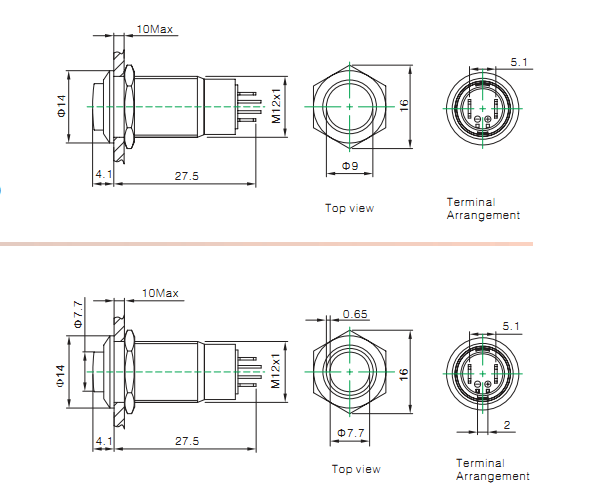

Size: Ø 12mm
Switch Rating: 1A/36VDC
Front shape: Flat Round Head
Contact configuration: 1NO
Operation type: Latching
Crust material: Stainless steel (S)
Grades: IP40
Terminal type: Pin terminal
Approval:CE RoHS Compliant
Lamp ratingsLamp type | LED Lamp(AC/DC) |
Rated voltage | AC/DC6V,AC/DC12V,AC/DC24V |
Rated Current | About 15mA |
LED color | Red,Green,Yellow,Orange,Blue,White |
Life | 40,000 hours(Reference) |
Dropping Way | 5,6,12,24V are with Inner resistor,other voltage need to connect an outer resistor |
Lamp | Using AC/DC LED lamp,the terminal is have no difference of anode and cathode |
Note:DC LED and other voltage can be made to order. SpecificationsOperating Temperature | -25ºC~+55ºC(no freezing) Keep the air flowing around illuminated on pushbutton |
Operating Humidity | 48~85%RH(no condensation) |
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥1000MΩ |
Dielectric Strength | 1500V,AC 50Hz,5 seconds |
Vibration Rasistance | 50Hz,Amplitude 1.2mm |
Shock Rasistance | ≥10g |
Solder Heat Resistance | 320ºC(or 30W soldering iron)no more than 2 seconds |
· Pls contact us for BEST PRICE!!
Also we can meet your special requirements: 1. Laser engraving for different symbol or Illuminated symbol. 2. Different metal body color can be made, like Red, Green, Yellow, Blue, White, Orange, Golden. 3.Special design for big diameter up to 35mm or small diameter to 8mm. 4. We accept different terms of payment, like PAYPAL, ESCROW and so on. 5.Other special requirement pls contact Mr. Puma (International trade manager) Puma chen ONPOW / ONPOW PUSH BUTTON MANUFACTURE CO., LTD. Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619 Tel: +86-577-62628788 MT: 86-13587700386 // Fax: +86-577-62623304
Http://hongbo.en.alibaba.com
Work time: 8:0-11:30 13:00-17:30(Except Sunday)
Prod Model: |
GQ12-C |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
12mm |
Approval: |
CE RoHS Compliant |
Crust Material: |
Stainless Steel |
Contact Configuration: |
1no |
Front Shape: |
Flat Round Head |
Switch Rating: |
1A/36VDC |
Terminal Type: |
Pin Terminal |
Grades: |
IP40 |
Type: |
Normal Open |
Usage: |
Check Button |
Kind: |
Single-pole on-off Switch |
Established in 1988 with a registered capital of USD 8.2 million we are one of the leading manufacturers in China specializing in introduced pushbutton switches.
Our pushbutton switches are widely used in many fields. The items include metal anti-vandal push button switchs, signal lamps, pilot lamps, illuminated pushbuttons, selector switches, illuminated selector switches, key lock switches, buzzers, emergency pushbuttons, illuminated emergency pushbuttons, and pushbutton accessories. And the installation sizes involve Φ 8, Φ 10, Φ 12, Φ 16, Φ 22, Φ 25, and Φ 30. Our switches are well designed for use. They are wearable, of long operating life, and easy to install. Besides, the function of quick-break contact and the self-cleaning feature add to the reliability of our products. We value product quality. We have invested special funds in research and development. Our products all meet the standards of ISO 9001, CCC, CE, VDE, and UL.
Our products are exported to the United States, United Kingdom, France, Italy, Russia, Turkey, and Southeast Asian countries, and have helped us build a reputation in the markets.
