Prod Model: |
LAS1-AWY-11/LED color/LED voltage |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Diameter: |
22mm |
Usage: |
Check Button |
Type: |
1no1nc or 2no2nc |
Certification: |
VDE |
Product Description

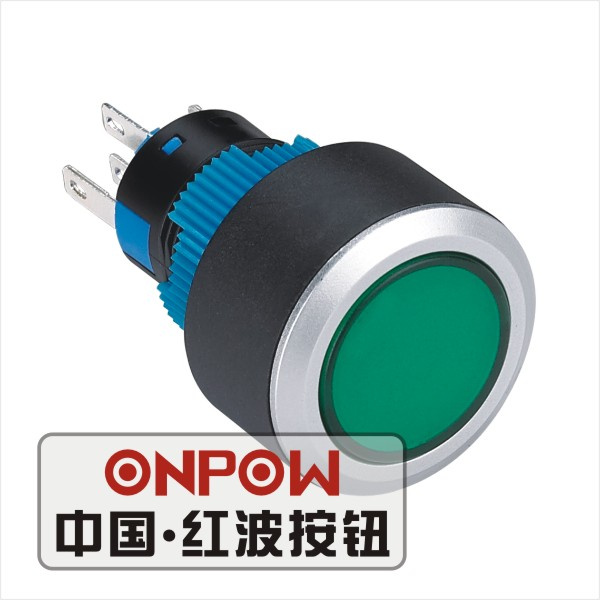

Part number: LAS1-AWY-11/LED color/LED voltage
Diameter: 22mm
Contact configuration: 1NO 1NC(11) / 2NO2NC(22)
Front shape: Round Head (Y)
Operation type: Momentary / Latching (Z)
illuminate
LED color: Green (other options: Blue, Red, Yellow, Orange, white)
LED voltage: 12V (other options: 6V, 24V, 110V, 220V)
IP degree: IP40 / IP65(P)
Approval:CE,CCC,VDE,ROHS
Switch Ratings
Rated Insulation Voltage | Ui:250V |
Thermal Current | Lth:5A |
Rated Voltage | 12V | 24V | 110V | 220V |
Rated Current | Alternating Current 50/60HZ | Resistive load | | | 1A | 0.5A |
Inductive load | | | 0.7A | 0.5A |
Direct Current | Resistive load | 1A | 1A | 0.2A | |
Inductive load | 0.7A | 0.7A | 0.1A | |
Contact Material | Sliver Alloy |
Lamp ratings
Lamp type | AC LED Lamp(Standard) | Neon Lamp |
Rated voltage | AC/DC 6V | AC/DC 12V | AC/DC 24V | AC 110V | AC 220V |
AC/DC 110V | AC/DC 220V |
Covers color | Red,Green,Yellow,Orange,Blue,White | Red,Green |
Life | About 40,000 hours | About 20,000 hours |
| | | | | | |
Note:1.the lamp contains a current-limiting resistor inside and doesn't need external connection.
2. DC LED lamp,dual-color LED lamp and other voltages can be customized.
Specifications
Operating Temperature | -25ºC~+55ºC(no freezing) Keep the air flowing around illuminatedpushbotton |
Operating Humidity | 48~85%RH(no condensation) |
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥100mΩ |
Dielectric Strength | Between contact and lamp terminals | 2000V,AC 50Hz,1min |
Between terminal of the same pole | 1000V,AC 50Hz,1min |
Between terminal of different pole | 2000V,AC 50Hz,1min |
Vibration Rasistance | 50Hz,amplitude 1.2mmP-P |
Shock Rasistance | ≥10g |
Life | Mechnical | Momentary Type | ≥1,000,000times |
Alternate and Selector Type | ≥500,000times |
Key-lock and EmergencyType | ≥200,000times |
Electrical | ≥50, 000times |
Terminal | Diameter of welded wire:2*0.8mm Air of copper wire:0.75mm²max Connecting link:2.8*0.5mm |
Solder Heat Resistance | 800gf-2200gf,according to the quantity of switch units |
Operating Travel | A,B,C type:about 5.5mm(pushbutton) |
K type:about 3.8mm(pushbutton) |
