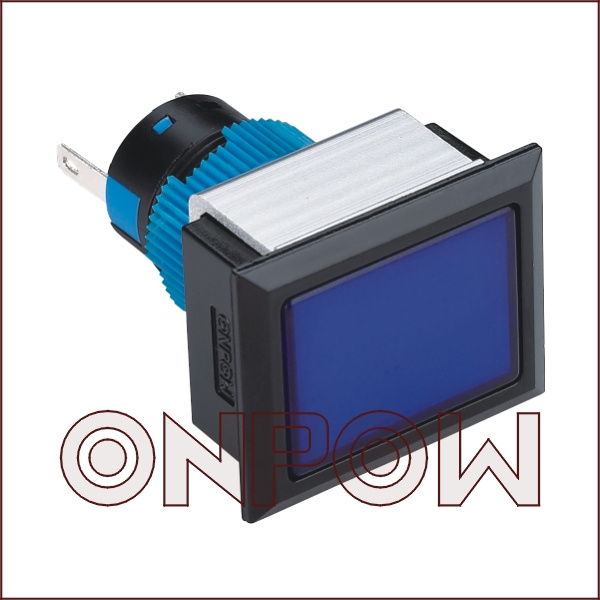

Onpow Pushbutton Switch (LAS1-APJ-11/B/12V, 22mm, CE, UL, VDE, RoHS)

Name: Onpow Pushbutton Switch (LAS1-APJ-11/B/12V, 22mm, CE, UL, VDE, RoHS)
Brand: all-electronics-online.com
SKU: 724092055
Availability: InStock
Rating: 4.8 (142 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LAS1-APJ-11/B/12V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter:	22mm
Usage:	Check Button
Kind:	Single-pole on-off Switch
Type:	1no1nc or 2no2nc

Product Description

Diameter: 22mm
Switching Rating: 5A/250V
Contact configuration: 1NO1NC(11) (other option: 2NO2NC (22))
Operation type: Momentary / Latching (Z)
LED color: BLUE (other options: RED, YELLOW, ORANGE, GREEN, WHITE, BLACK)
LED voltage: 12V (other options: 6V, 24V, 110V, 220V (AC/DC))
IP degree: IP40 / IP65

Solder Heat Resistance: 320° C (no more than 2 seconds)
Electrical life: 50, 000 times
Operating Temperature: -25~+55° C (No freezing)
Operating Humidity: 45 ~ 85%RH (no condensation)
Contact Resistance: ≤ 50mΩ
Insulation Resistance: ≥ 100MΩ
Vibration Resistance: 50Hz, amplitude 1.2mmP-P
Shock Resistance: ≥ 10g
Operating Force: 100gf~400gf(According to the quantity of switch units)
Operating Travel: 3mm(pushbutton)

· Pls contact us for BEST PRICE! !

Puma chen

ONPOW / ONPOW PUSH BUTTON MANUFACTURE Co., Ltd.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619

Tel: +86-577-62628788 MT: 86-13587700386 // Fax: +86-577-62623304
Website: Www. Onpow. COM HTTP: //hongbo. En. Alibaba. COM

Work time: 8: 0-11: 30 13: 00-17: 30(Except Sunday)

Established in 1988 with a registered capital of USD 8.2 million we are one of the leading manufacturers in China specializing in introduced pushbutton switches.

Our pushbutton switches are widely used in many fields. The items include metal anti-vandal push button switchs, signal lamps, pilot lamps, illuminated pushbuttons, selector switches, illuminated selector switches, key lock switches, buzzers, emergency pushbuttons, illuminated emergency pushbuttons, and pushbutton accessories. And the installation sizes involve Φ 8, Φ 10, Φ 12, Φ 16, Φ 22, Φ 25, and Φ 30. Our switches are well designed for use. They are wearable, of long operating life, and easy to install. Besides, the function of quick-break contact and the self-cleaning feature add to the reliability of our products. We value product quality. We have invested special funds in research and development. Our products all meet the standards of ISO 9001, CCC, CE, VDE, and UL.

Our products are exported to the United States, United Kingdom, France, Italy, Russia, Turkey, and Southeast Asian countries, and have helped us build a reputation in the markets.
