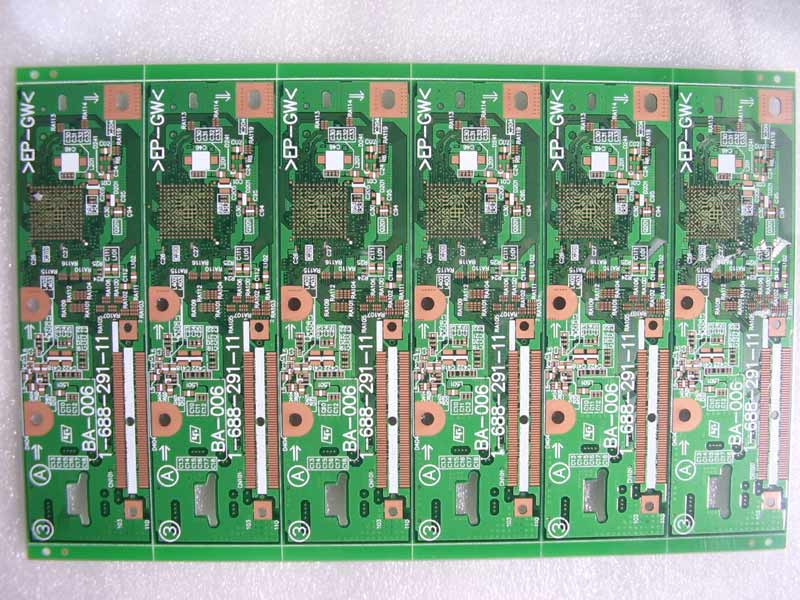

OSP Double Sided PCB Manufacturing

Name: OSP Double Sided PCB Manufacturing
Brand: all-electronics-online.com
SKU: 607487894
Availability: InStock
Rating: 4.6 (46 reviews)

Price:	US $ 60-85/Square Meter
Min Order:	5/Square Meter
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

ZHEJIANG ZAPON ELECTRONIC TECHNOLOGY Co., Ltd is a professional manufacture of PCB and PCBA. Which have the factory of single side PCB, double side PCB, multi-layer PCB and PCB assembly etc. We have the ability of produce for any medium and mass quantity. The machine of our factory are on work all day and all night. With Zapon as a supplier, you will have the highest quality, quickest delivery.
The products:
Single-side PCB: CEM-1, FR-2, FR-1 XPC-94HB
Double-side PCB: FR-4, CEM-3, High Tg, Aluminum, Halogen Free
Multi-layer PCB: 4 to 22 layers(FR-4, High Tg, Rogers)
Certification: UL, ISO9001, ISO/TS16949: 2002, IS014001 and RoHS
THE CAPACITY OF PRODUCTION: 50, 000SQM. /month
We promise:
Reliable quality
Reasonable price
Flexible lead time

Item		Capabilities
Number of Layers		Double Side
Material		FR-4,CEM-3,HighTg, Aluminum, Halogen Free
PCB Thickness	Min.thickness	0.2mm(8mil)
	Max.thickness	3.2mm(128mil)
Surface finished		Gold Plating
		Immersion Gold(Silver)
		HAL Lead Free
		Hot Air Solder Leveling(HASL)
		Entek Coating (OSP)
Solder Mask		Green,White,Black,Yellow,Red,Blue
Other printing		Gold Finger
		Carbon Print, Peelable Mask
		Solder Mask Plugged Hole
Copper thickness		1/ 2 oz (18 um) - 4 oz (140 um)
Min. Finished Hole Size		0.3mm(12mil)
Hole Size Tolerance (PTH)		+/ -0.076mm (3 mil)
Hole Size Tolerance (NPTH)		+/-0.05mm (2 mil)
Min. Line Width and Spacing		0.10mm (4 mil)
Min. Solder Mask Clearance		0.076mm (3 mil)
Min. Annular Ring		0.1mm (4mil)
Profile and V-Cut		CNC-Routing, Stamping and Beveling,V-CUT,CNC
Special Process		Micro-section, Chamfer for Gold Finger

Prod Model:	Double Sided PCB-7
Surface:	OSP,Immersion Gold,Hal Lead Free,Hal
Solder Mask:	Green,Red,Yellow,White,Black,Blue,etc
Shipment:	Air,Sea,Express(DHL TNT FedEx EMS UPS)
Sample Date:	5-7 Days
Metal Coating:	Gold
Layers:	Double-Layer
Base Material:	FR-4
Certification:	UL 94V-0
Customized:	Customized
Condition:	Used
Mode Of Production:	Manufacturing

Zhejiang Zapon Electronic Technology Co., Ltd is a professional manufacture of Aluminum base PCB and rigid PCB. Which have the factory of Alu base PCB, double side PCB, multi-layer PCB and PCB assembly etc. We have the ability of produce for any medium and mass quantity. The machine of our factory are on work all day and all night. With Zapon as a supplier, you will have the highest quality, quickest delivery. The detail information of our company are in below:
Establishment: 1997
Registered Capital: US$10M
The area of company: 16800m2
The number of staff: 622
Products:
Aluminum base PCB: One side aluminum PCB and double side Alu-PCB
Double-side PCB: FR-4, CEM-3, High Tg, Halogen Free
Multi-layer PCB: 4 to 22 layers(FR-4, High Tg, Rogers)
Certification: UL, ISO9001, ISO/TS16949: 2002, IS014001 and RoHS
THE CAPACITY OF PRODUCTION: 50, 000SQM. /month

All your inquiry of quotation will be replied within 4-hour. Our engineer will be on your service at any time. And your satisfaction is our biggest wish! ! !

Through the efforts of all staffs. Zapon has stood out among PCB company like us and has became a leading company in this industry. We have won accptance and set up a good reputation in domestic and international markets with the competitive price, the perfect atfter-sales services and the wide support of the suppliers. Our main clients in Samsung, Turkey, Italy, England, Portugal, America etc. Our products meet the military and IPC standards and specifications.

We hope we can be your best partner and offer you the best price with good service Do the biggest assistant for you to reduce your cost.
As long as we have the first cooperation, we believe we will get together, we are confident for establishing a long term friendship once our first cooperation made.
