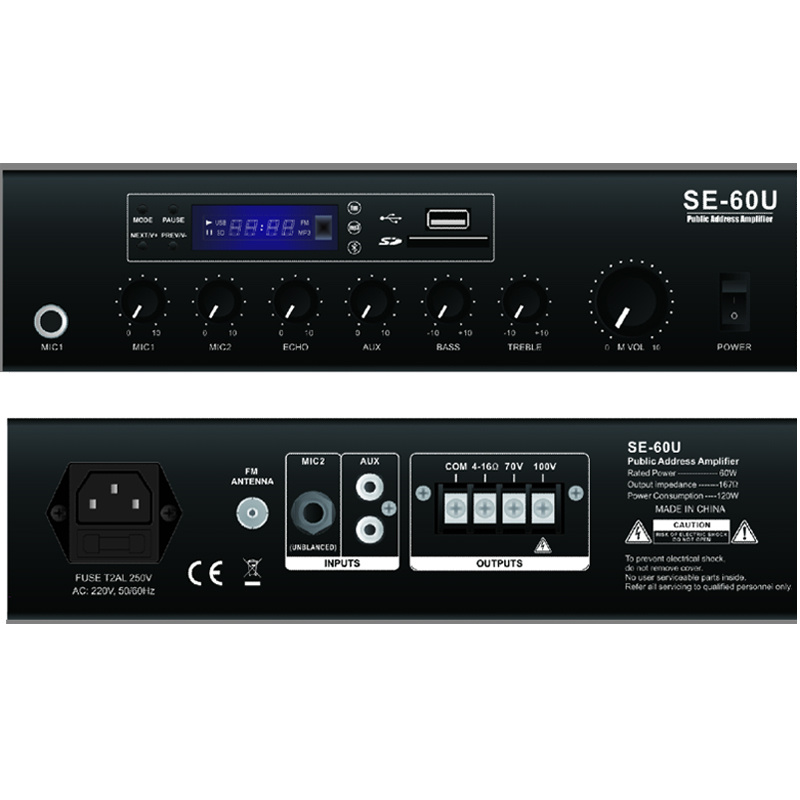

PA Mixer Amplifier (SE-60U) with USB, SD, FM, Bluetooth, Echo
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
SE-60U |
| Usage: |
Public Address System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Mixer Amplifier |
| Output Number: |
1 |
| Voltage: |
AC 220V |
| Element Number: |
Monoamplifier |
| Conductive Mode: |
AB |
| Type: |
PA Amplifier |
| Sound Channel: |
Mono |
Product Description
Mixier Amplifier SE-60U| FEATURES: |
Standard chassis design, 2U iron panel
Mic Echo System
Bass&Treble control
USB,SD,Tuner&Bluetooth
3 audio input, including 1 AUX, 2 MIC.
MIC1 with the highest priority, automatically silence when signal input.
Junction FET priority conversion, ensure that without distortion in the process of mute.
Professional noise gate control output signal , ensure that the squelch of background music.
Output: 70V,100V,4-16Ω.
Line safe work area protection, to ensure that output load work safely in short circuit, overload and any other harsh environment.
Peak negative feedback protection, its a severe safety test for terminal speakers and mixer amplifier when signal distortion, shock, or a serious line voltage overvoltage, peak negative feedback can effectively prevent signal and line voltage not distortion and overpressure in any load environment.
Integrated cross-tone compensation circuit, correct HF loss which caused by transformer between lines, so that the line voltage signal on the spectrum curve straight, beautiful tone.
High frequency octave cut circuit to ensure the safe operation of the boost system, the use of low-cut with sound compensation technology, remove ULF which is hidden danger of the boost system in the case of without losing sound quality. |
| TECHNICAL PARAMETERS: |
| Model: | | SE-60U |
| Rated power: | | 60W |
| Output: | 70V,100V,4-16Ω |
| Input Sensitivity / Impedance: | MIC 1,2:5mV/600Ω, unbalanced TS terminal; AUX1:350mV/10KΩ, unbalanced RCA input |
| Overload source EMF: | MIC 1,2:> 12dB, unbalanced TRS terminal input;AUX 1:> 20dB, unbalanced RCA input |
| Tone (Bass): | ±10dB at 100Hz |
| Tone (treble): | ±10dB at 10KHz |
| Tone (treble): | 50-16KHz(+1dB, -3dB) |
| S/N rated: | MIC 1,2: 66dB; AUX 1: 80dB |
| THD: | 0.5% @ 1KHz , 1/3 of the output power |
| Mute function: | MIC 1 prior to other channels |
| Channel crosstalk attenuation: | ≤50dB |
| Cooling: | forced air from the front to back, built-in fan starts when radiator temperature reached 45 degrees |
| Protection: | overheat, overload & short circuit |
| Power supply: | AC 220V, 50/60Hz |
| Max. power dissipation: | | 80W |
| Size (W x H x D): | | |
| Weight: | | |
Package
1.One power amplifier fill in one carton case.
2.Rack case, based on your quantity requirements.
Shipping
1. Sample order for shipping via DHL/FEDEX/UPS/TNT/EMS.
2. Large order for shipping by sea or air.
3. Sending to customise forwarder warehouse.
