Professional Power Amplifier S-2200 S-2300 S-2400 S-2500 S-2600 S-2800| FEATURES: |
Intelligent dynamic pressure limit system: patented technology dynamic pressure limit control power circuit, ensure that system is always in a safe working condition.
Professional connections: input using balanced XLR or TRS connection, the output for the professional SPEAKON connector to ensure that minimum loss of signal transmission and interference. |
| TECHNICAL PARAMETERS: |
| Model: | S-2200 | S-2300 | S-2400 | S-2500 | S-2600 | S-2800 |
| Output power @ Stereo 8Ω: | 2×225W | 2×300W | 2×400W | 2×500W | 2×600W | 2×1280W |
| Output power @ Stereo 4Ω: | 2×360W | 2×500W | 2×650W | 2×800W | 2×980W | 2×1280W |
| Output Power @ Bridge 8Ω: | 670W | 920W | 1200W | 1500W | 1850W | 2400W |
| Output Power @ Bridge 4Ω: | 900W | 1200W | 16000W | 2000W | 2400W | 3200W |
| Frequency response: | 20Hz~20KHz±0.35dB |
| THD: | <0.05% |
| Inter modulation distortion: | <0.05% |
| S/N rated: | >102dB |
| Input common rejection ratio: | >78dB |
| Channel separation: | >78dB |
| Damping coefficient: | >200 |
| Amplifier circuit: | dual power supply, AB class |
| Input:Impedance: | 20KΩ balanced input |
| Conversion rate: | 40V/us |
| Input:Sensitivity:: | +2.2dBu(1.0Vrms) |
| Maximum input level: | +22.0dBu(10.0Vrms) |
| Dynamic pressure limit: | automatic intelligence |
| Protection circuit: | soft start, input surge limit, output short circuit, DC, overload protection, main fuse protection, switch mute protection, RF interference protection |
| Cooling: | 4 DC variable speed fan, the air flow direction from front to back |
| Panel instructions: | power, clip, pressure limit, signal |
| Rear Panel Connector: | Input:Female 3-pin XLR × 2; Output:Male 3-pin XLR×2, 4-hole SPEAKON connector×2, 2 group Special red-black terminal |
| Power consumption: | 450W | 560W | 680W | 800W | 1000W | 1280W |
| Voltage: | AC 110V-240V50/60Hz(can be set by the manufacturer) |
| Size(W × H × D): | 484×90×400mm |
| Weight: | 23.5Kg | 25Kg | 27Kg | 28.7Kg | 30.8Kg | 32.3Kg |

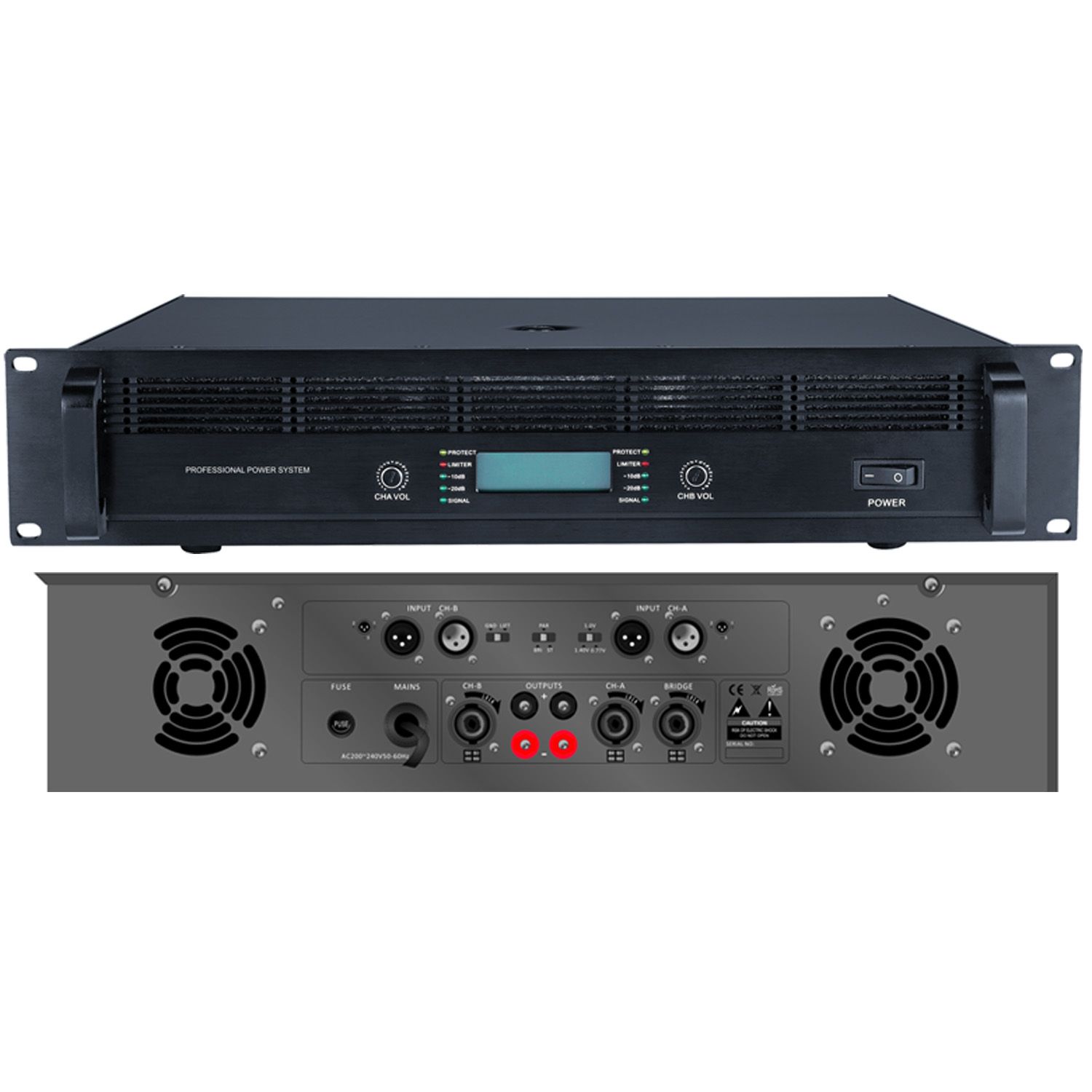

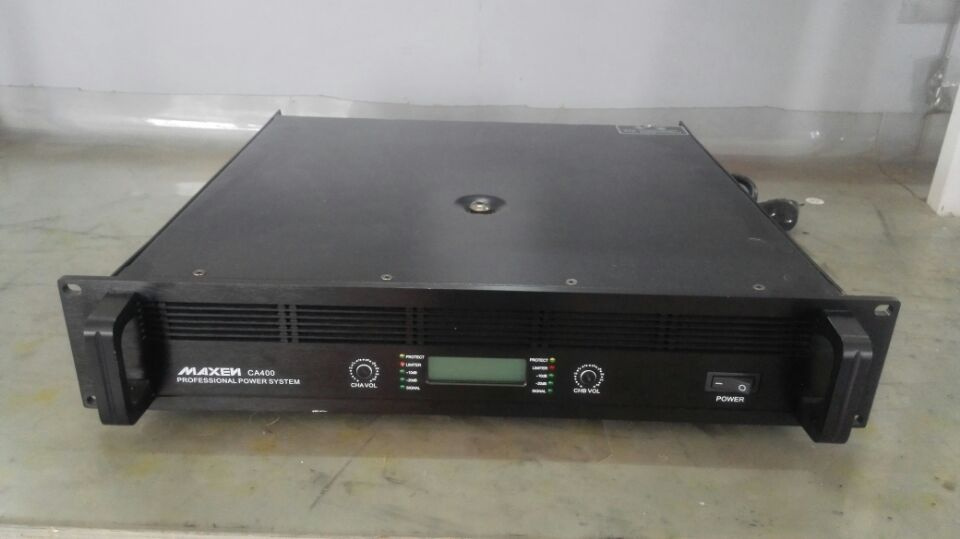

Front Panel:

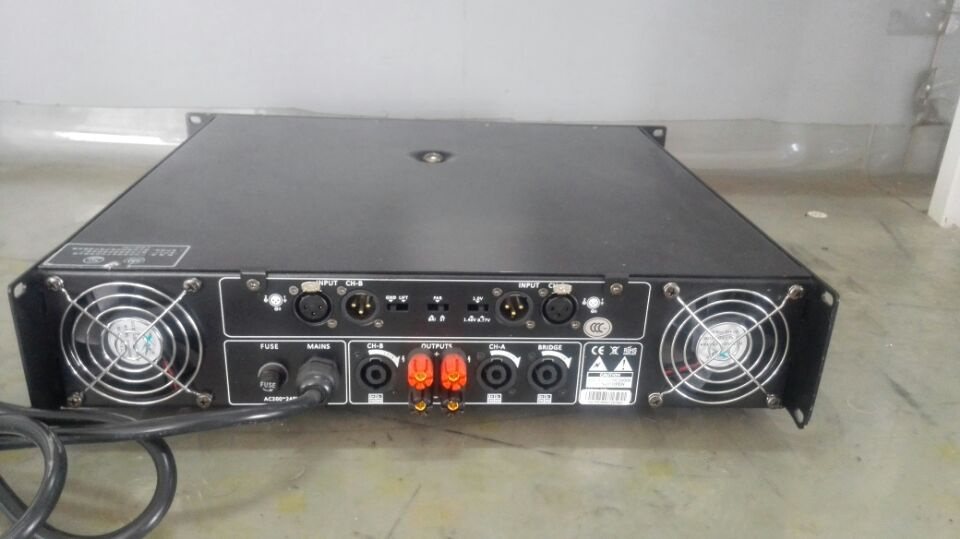

Back Panel:

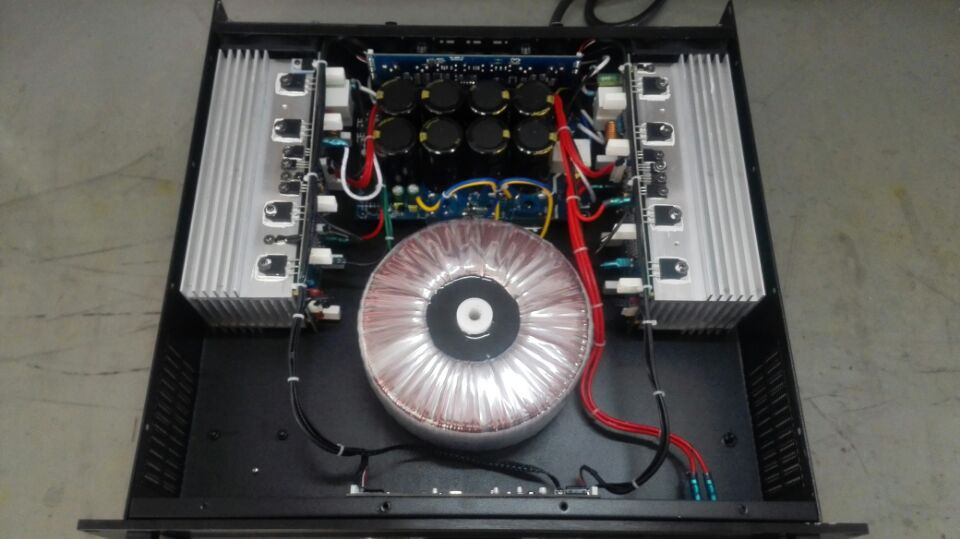

Inside:
Syeeke F-400EB mixer amplifier will provide you:
1.Fantastic nice sound quality
2.Workable price
3.3 years warranty
Syeeke amplifier provide following protection:
1. Soft start protection
2. Short circuit protection
3. DC protection
4. Limiting protection
5. Overheat protection
6. Input overload protection
7. Output overload protection
8. Output fading production
Package
1.One power amplifier fill in one carton case.
2.Rack case, based on your quantity requirements.
Shipping
1. Sample order for shipping via DHL/FEDEX/UPS/TNT/EMS.
2. Large order for shipping by sea or air.
3. Sending to customise forwarder warehouse.
More details please visit our website:
www.syeeke.com
NOTICE:

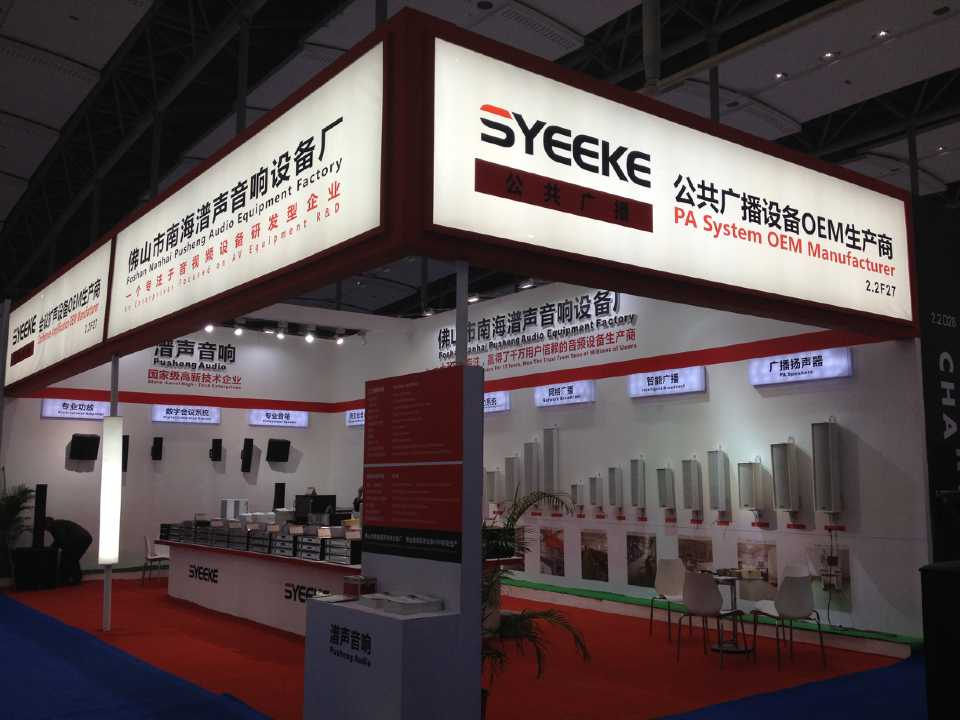

Pusheng Audio will display speakers and amplifiers at Guangzhou Prolight&Sound Exhibition
