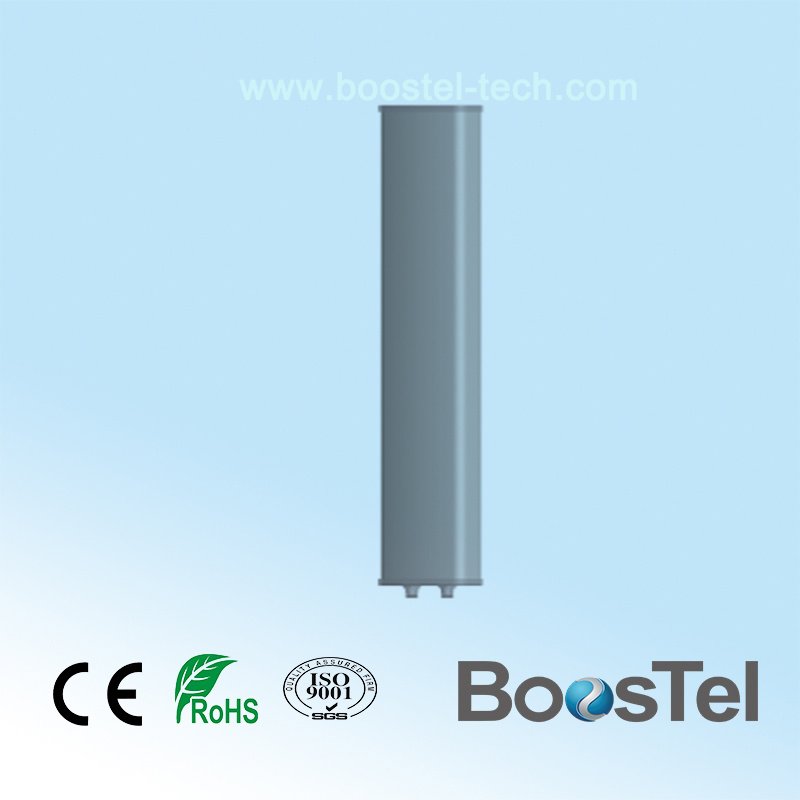

Panel Antenna Dcs 1800MHz UMTS 2100MHz

Name: Panel Antenna Dcs 1800MHz UMTS 2100MHz
Brand: all-electronics-online.com
SKU: 825332515
Availability: InStock
Rating: 4.7 (80 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BT-65DP17-1820RT0
Usage:	Radar Antenna
Operating Wavelength:	Medium Wave
Material:	Steel Plate
Directionality:	Directional Antenna
VSWR:	1.5~2

Product Description

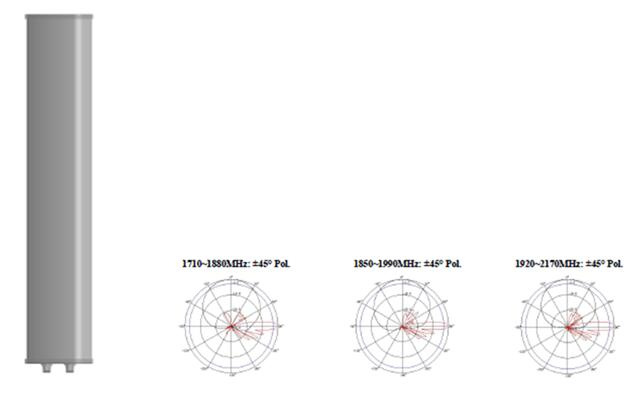

Specifications of Panel Antenna

Model: BT-65DP17-1820RT0

Items	Specification
Working Frequency	1710~1880MHz	1850~1990 MHz	1920~2170 MHz
Polarization	±45°
Gain	2*16.5dBi	2*16.5dBi	2*17 dBi
Electrical Downtilt	0°
Horizontal Beam Width	68°	68°	68°
Vertical Beam Width	9°	8°	7°
Front-to-Back Ratio	≥25dB
Cross-Polar discrimination	≥15dB(±60°≥10dB)
Isolation	≥28dB(
V.S.W.R.	≤1.5
Input Impedance	50Ω
Intermodulation IM3	≤-150dBc
Max. Power	300W
Lighting protection	DC Ground
Connector	2*7/16DIN-Female
Connector Position	Bottom
Height/width/depth	108016080mm
Packing Size	1190210150mm
Weight	6.3kg
Radome Material	UPVC
Radome Color	Gray
Mechanical Tilt	0~15°
Operating Temperature	-40~60°C
Suitable Pole Diameter	50 ~85mm
Mounting Kit	JM-1800RZ

Shenzhen Boostel Technologies Co., Ltd. is a high-tech company integrating scientific R&D, manufacturing and marketing, with factory in Shenzhen China, and headquarters in Hongkong, mainly engages in scientific research, production, marketing, project and engineering service of the radio telecommunication system.

Since the inception, we have been a professional manufacturer and solution provider of RF network optimization system. Our products, including RF repeaters, IBS, BTS filters, combiners and amplifiers as well as NMS software system, have been deployed in more than 100 cities in China and 30 countries in Southeast Asia, Africa, European, South America and Middle East. We provide the infrastructure and total solutions to mobile operators and enterprises to enhance the cellular network.

Our products including High power Repeaters and Pico Repeaters which covering all the working frequency bands of TETRA Repeaters, iDEN Repeaters, LTE800MHz, GSM900MHz, DCS1800MHz, PCS1900MHz, WCDMA2100MHz and LTE2600MHz.

Since 1995, the first set of Fiber optic Repeater was manufactured in our factory, we have developed all kinds of Repeaters and sold it the opeartors all over the world.

We will provide the total solution of Repeaters with best quality and full technical supporting to you based on our more than 20 years experience of manufacturing Repeaters.
