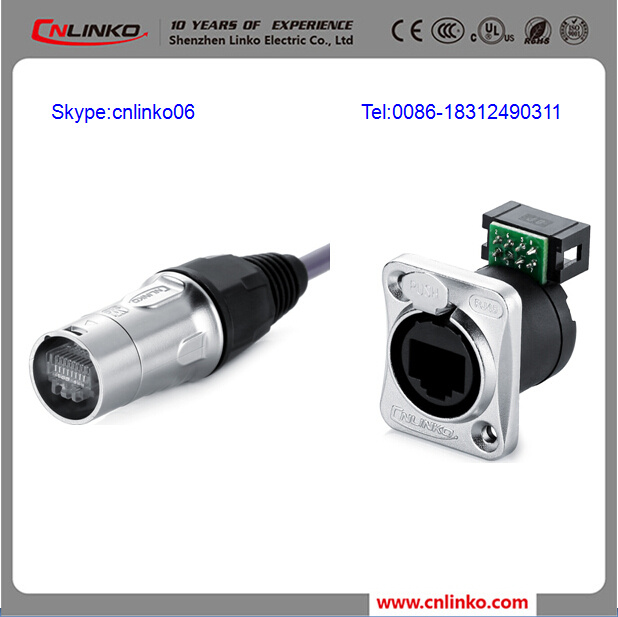

Panel mount rj45 waterproof connector/panel mount rj45 waterproof connector electrical rj45 connector
Product Description:
CNLINKO YT RJ45 can provide the solutions for signal transmission in harsh environments,Specially these RJ45 connectors can apply for industrial ethernet in audio,business,amusement,live stage action,DMX lighting,industrial and outdoor in network environments.
CNLINKO YT RJ45 series can provide cable jacket,assembly female plug,straight plug,cable coupler,protective style,it is the strongest protection for installation of the box with the protection level of IP65.
1.Compliance with D level or CAT 3E standard of EIA568B and ISO/IEC11801,RJ45 connectorscompatible CAT5e,data transfer rate reach 10GBIT/S
2.D-panel connectors,metal shell and locking system
3.Shielding system with high frequency noise immunity and electromagnetic interference protection
4.Push-pull design with secure locking system,and optional installation of straight or PCB adapter.
5.Cable jacket with solid diecaste shell and unique dual -clip-clip wire saddle.
6. Waterproof and non-waterproof design,protection level IP65/IP68 if waterproof and dustproof.
7.Electroplated shell against wind and rain.
8.Shielding system with high frequency noise immunity and electromagnetic interference protection.
| YT-RJ45-CPE-10-001 YT-RJ45-JSX-21-001 |
| Specifications: | |
| Connecting mode: | Plug/unplug, |
| Protection level: | IP65 |
| Cable specification: | 0.15 mm2 ~ 0.2 mm2 /26~24 AWG |
| Diameter range: | Φ5.5mm ~Φ7mm |
| Contact diameter×Qty: | 8 |
| Current rating(A): | 1.5A |
| Operating voltage(AC.V.rms): | 1000V |
| Contact resistance: | <30mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | Pull/push |
| Prevent the combustion level: | UL94-V0 |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| Main characteristics: | |
| - Sealed against dust and fluid (IP65) |
| - Vibration resistance,impact resistance,stretching resistance |
| - With one hand, can quickly insert or pull out |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
Oversea's department
TEL:0086-0755-86960323 FAX:0086-0755-86960305
Cell phone :0086-18312490311
Contact percon:Ms Jody
Website:http://www.cnlinko.com

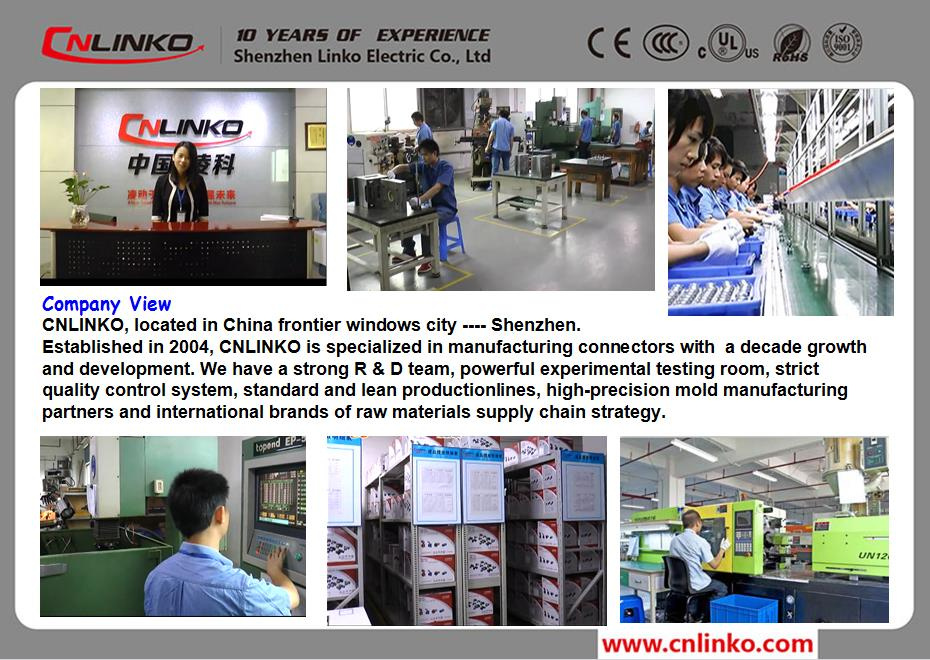

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.
We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

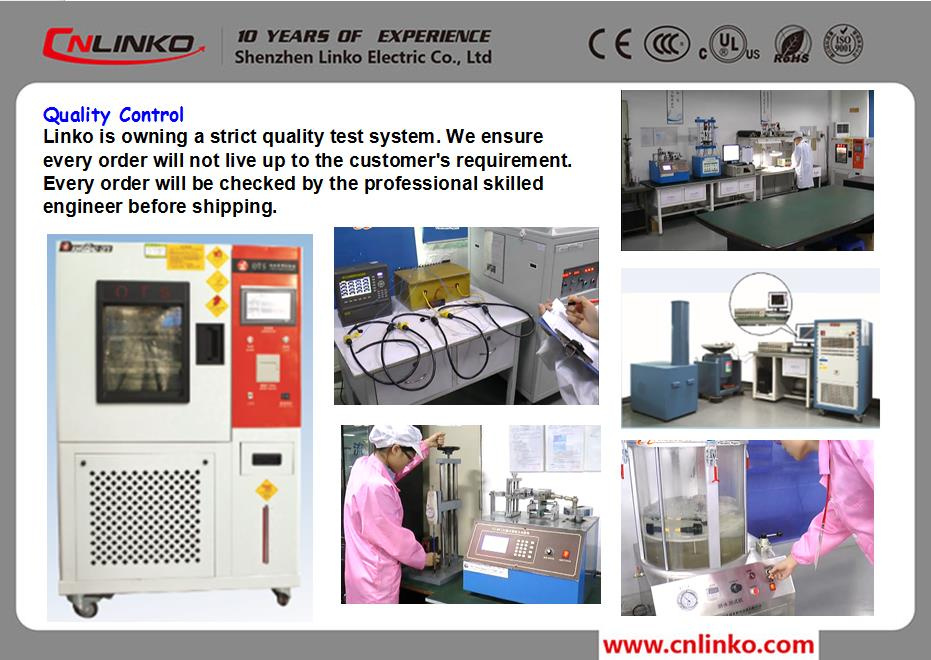

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.
Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.
We will always keep skills fresh and up-to data with international.

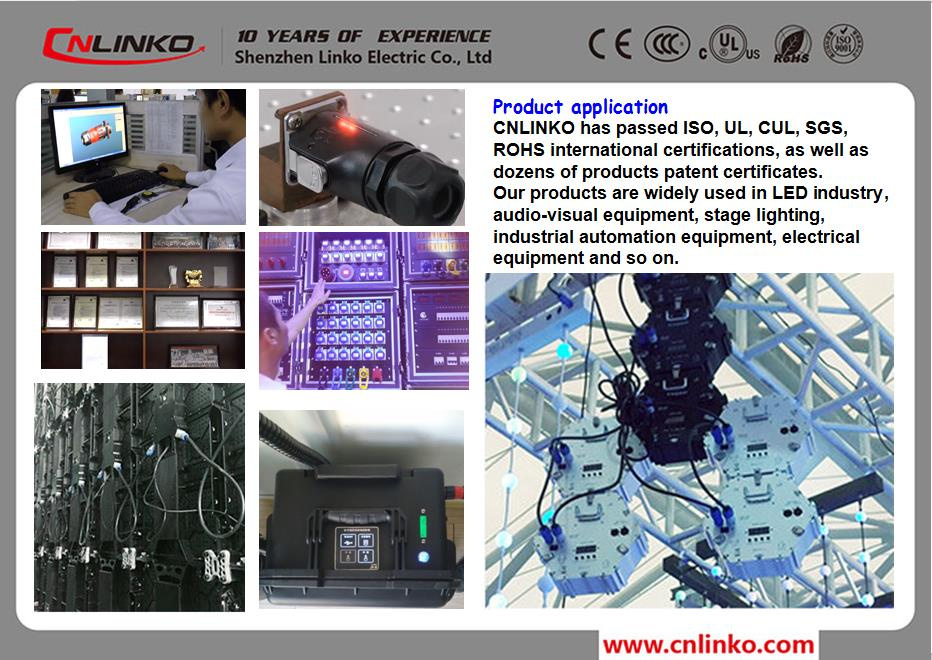

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.
