UL Apporved IP65 Cat 5 Waterproof RJ45 Connector/8p8c Connector

Name: UL Apporved IP65 Cat 5 Waterproof RJ45 Connector/8p8c Connector
Brand: all-electronics-online.com
SKU: 775904585
Availability: InStock
Rating: 5 (33 reviews)

Price:	US $ 2.3-2.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

UL Approved IP65 Cat 5 Waterproof RJ45 Connector/8P8C connector

Datasheet:

YT-RJ45-CPE-10-002, YT-RJ45-JSX-16-001
Specifications:
Connecting mode:	Plug/unplug
Protection level:	IP65
Wire diameter scope:	Φ5.5mm-Φ7mm
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Prevent the combustion level:	UL94-V0
Resistance to vibration:	10-500Hz, 10g, Uninterrupted>100NS
Material:
Shell&insulated parts:	High-performance engineering plastics
Sealing:	Silica gel
Hardware:	Zinc alloy (pearl hard chrome)
Flammability rating	UL94-V0
Main characteristics:
- Sealed against dust and fluid (IP65)
- Vibration resistance, impact resistance, stretching resistance
- With one hand, can quickly insert or pull out the
Application industries:
- Stage equipment	- Robot technology
- Medical equipment	- Industrial process control
- Telecommunication equipment	- Mobile control
- Communications equipment	- Video control
- CNC machines	- Remote maintenance

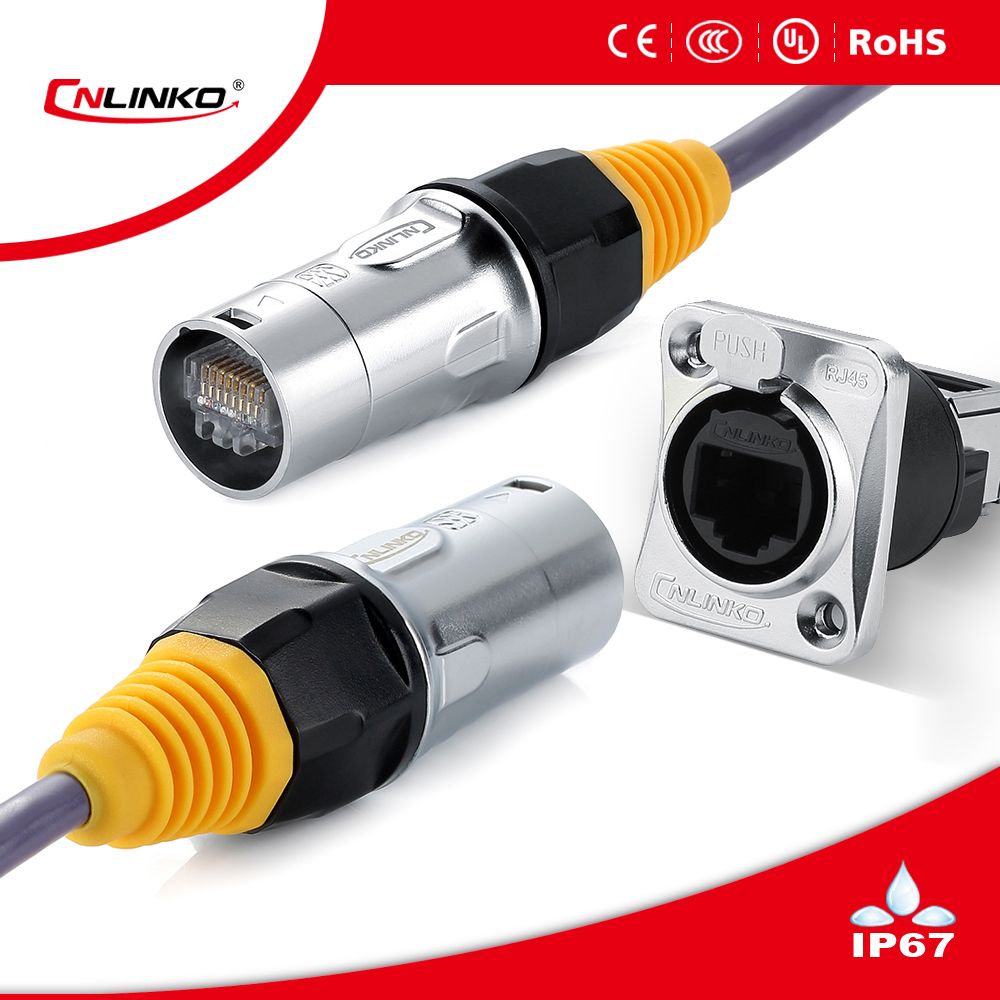

Product Photo:

Packing & Payment term & Shipping:
Package: 10PCS/ box, 24 boxes / master carton
Payment term: T/T or western union (100% full payment before shipment)
Delivery time: 3-7 working days after got your payment
Shipping way: By air, by sea or by express (depends on customer's request)

Prod Model:	YT-RJ45-CPE-10-001 & YT-RJ45-JSX-16-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	Ce, CCC, RoHS, ISO9001
Apply For:	LED Display or LED Screen
Rated Current:	1.5A
Operating Voltage:	1000V
Protection Level:	IP65/67
Durability:	Over 500times
Gender:	Male
Application:	UHF
