8p8c Network Connector/IP67 Connector RJ45/Water Resistance Ethernet RJ45

Name: 8p8c Network Connector/IP67 Connector RJ45/Water Resistance Ethernet RJ45
Brand: all-electronics-online.com
SKU: 789557665
Availability: InStock
Rating: 5 (123 reviews)

Price:	US $ 7/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

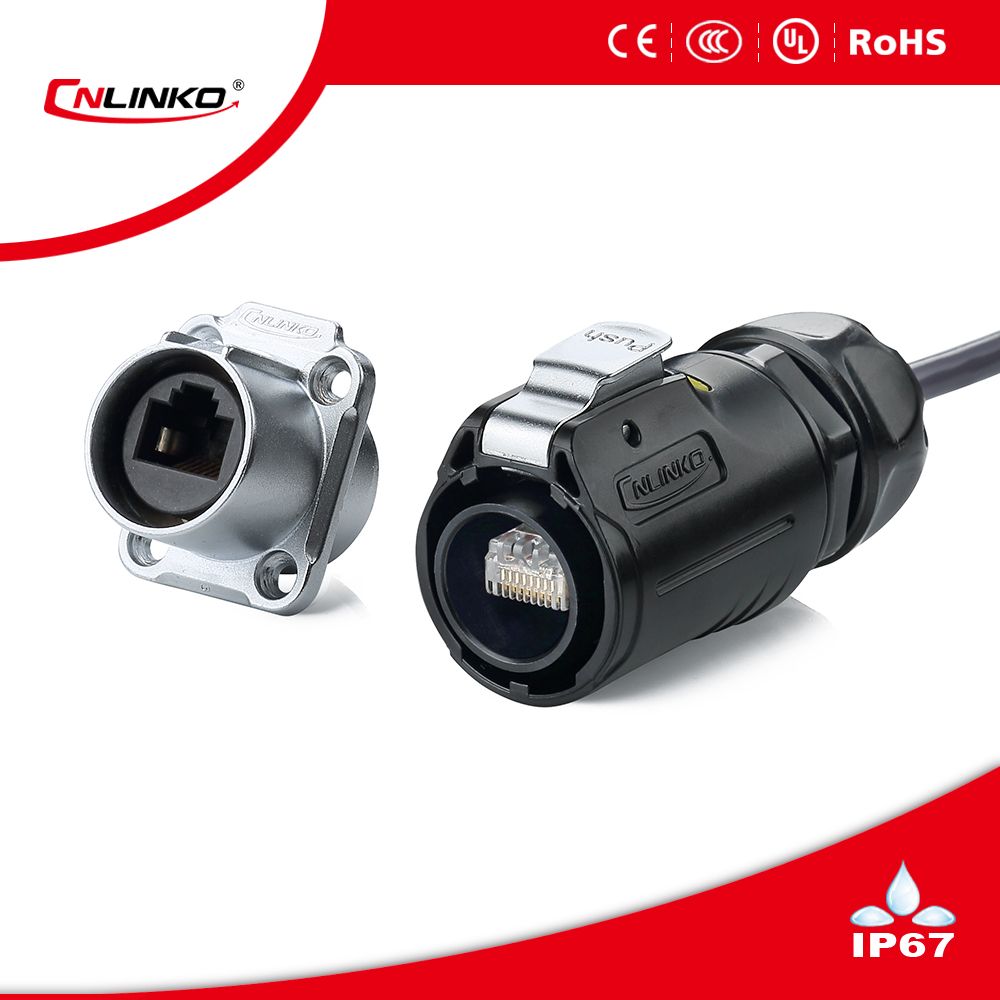

8P8C network Connector/IP67 Connector RJ45/Water Resistance Ethernet RJ45

Data Sheet:

Connecting mode:	plug/unplug
Protection level:	IP65/IP68
Cable specification:	0.15mm2 ~ 0.20 mm2 /26~24AWG
Diameter range:	Φ5.5mm ~Φ7mm
Contact diameter×Qty:	8
Contact resistance:	<1mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	solder
Prevent the combustion level:	UL94-V0
Produce type:	Good Quality Rj45 Connector
Material:
Shell&insulated parts:	High-performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel
Main characteristics:
- Sealed against dust and fluid (IP65/IP68)
- Vibration resistance, impact resistance, stretching resistance
- With one hand, can quickly insert or pull out
Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery

Payment & Shipping & Contact Information:
Payment: T/T, Western Union, Paypal
Shipment: by express, by air, by sea

Packaging & Shipping
1. 5pcs to a box, 40 boxes to a carton, or use customized packing with MOQ1000 pcs/model boxes
2. Lead time: 7-10 working days after received deposit for USB Convert Serial Cable Connector
3. DHL/UPS/Fedex/EMS/TNT(door to door) or use customer partner

Our Services
1. Supply OEM and ODM service for USB Convert Serial Cable Connector
2. With professional quality control system and R&D department
3. To make customized needs with national level laboratory
4. Free samples are available for USB Convert Serial Cable Connector
5. Supply the best service to you with the contact details below:

Prod Model:	LP-24-RJ45-P01&LP-24-RJ45-S01
Brand Name:	Cnlinko
Cable Specification:	USB3.0
Certification:	UL, Ce, CCC, TUV, ISO9001, RoHS, IP67
Rated Current(a):	1.5A
Durability:	>500times
Working Temperature:	-40°c~80°c
Connector Type:	Easy Locking Type
Contact Resistance:	<30 MΩ
Hardware:	Zinc Alloy (Pearl Hard Chrome)
Cooper Pins:	Opper Alloy (Gold-Plated 4u)
Gender:	Male
Application:	UHF

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
