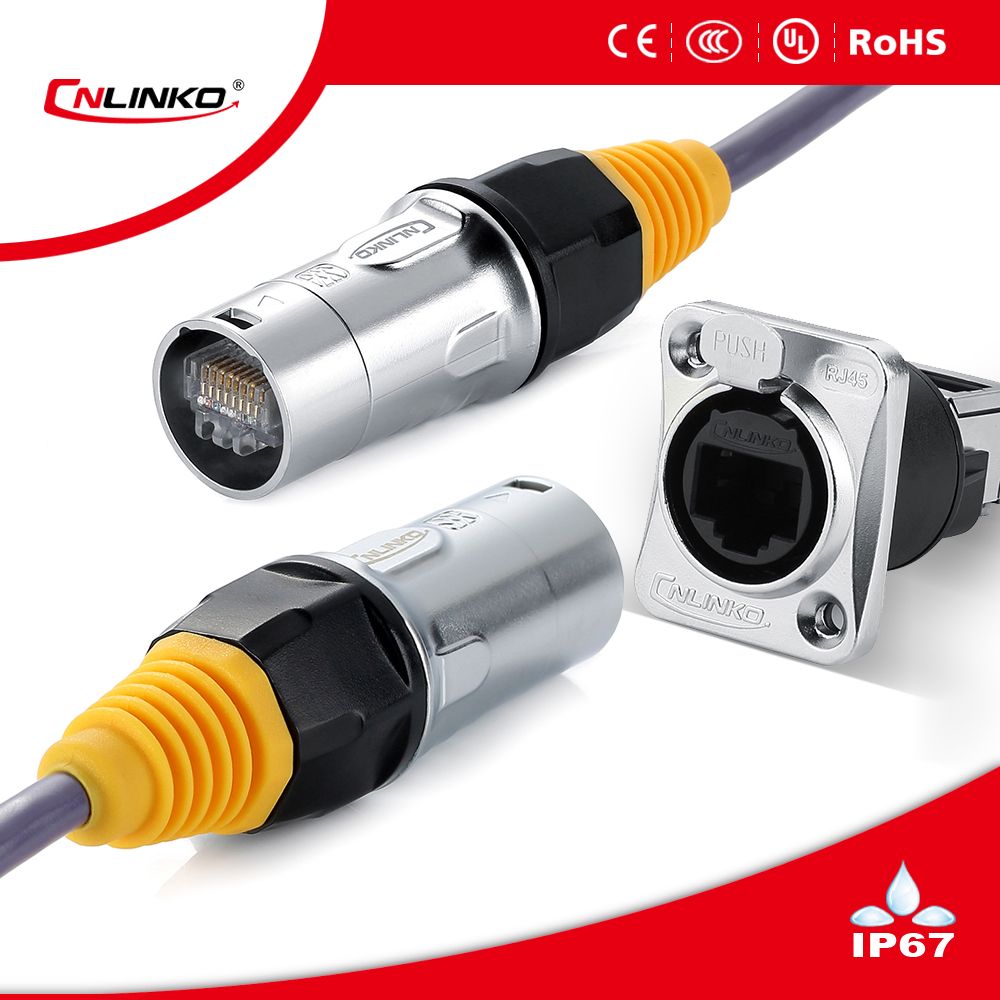

Waterproof CAT6 ethercon 8p8c RJ45 Connector for Signal CNLINKO YT RJ45 can provide the solutions for signal transmission in harsh environments, Especially these RJ45 connectors can apply for industrial ethernet in audio, business, amusement, live stage action, DMX lighting, industrial and outdoor in network environments.
CNLINKO YT RJ45 series can provide cable jacket, assembly female plug, straight plug, cable coupler, protective style, it is the strongest protection for installation of the box with the protection level of IP65.
1.Compliance with D level or CAT 3E standard of EIA568B and ISO/IEC11801, RJ45 connectors compatible CAT5e, data transfer rate reach 10GBIT/S
2.D-panel connectors, metal shell, and locking system
3.Shielding system with high-frequency noise immunity and electromagnetic interference protection
4.Push-pull design with secure locking system, and the optional installation of straight or PCB adapter.
5.Cable jacket with the solid diecast shell and unique dual -clip-clip wire saddle.
6. Waterproof and non-waterproof design, protection level IP65/IP68 if waterproof and dustproof.
7.Electroplated shell against wind and rain.
8.Shielding system with high-frequency noise immunity and electromagnetic interference protection.
| YT-RJ45-CPE-10-002, YT-RJ45-JSX-16-001 |
| Specifications: | |
| Connecting mode: | Plug/unplug, |
| Protection level: | IP65 |
| Cable specification: | 0.15 mm2 ~ 0.2 mm2 /26~24 AWG |
| Diameter range: | Φ5.5mm ~Φ7mm |
| Contact diameter×Qty: | 8 |
| Current rating(A): | 1.5A |
| Operating voltage(AC.V.rms): | 1000V |
| Contact resistance: | <30mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | Pull/push |
| Prevent the combustion level: | UL94-V0 |
| Material: | |
| Shell&insulated parts: | High-performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| Main characteristics: | |
| - Sealed against dust and fluid (IP65) |
| - Vibration resistance, impact resistance, stretching resistance |
| - With one hand, can quickly insert or pull out |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
