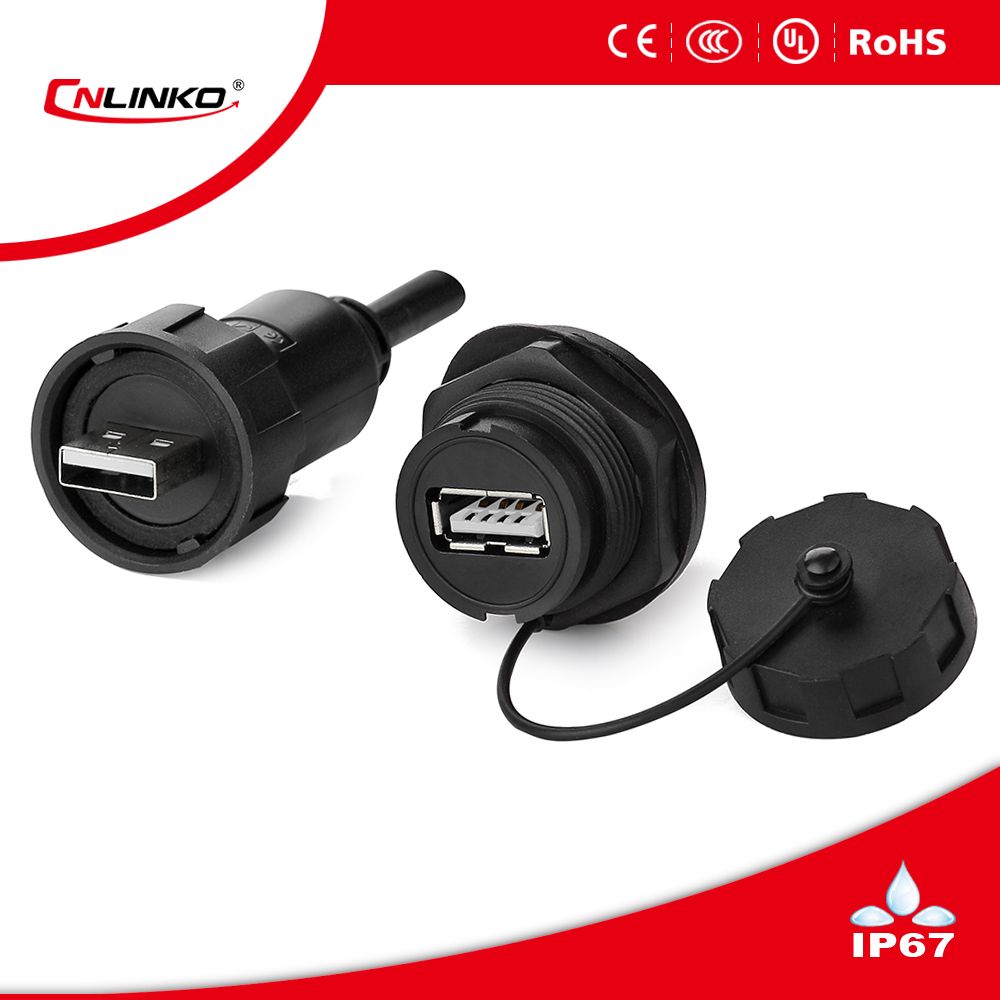

a Female USB Connector 9 Pin 3.0 USB Connector/USB Adapter

Name: a Female USB Connector 9 Pin 3.0 USB Connector/USB Adapter
Brand: all-electronics-online.com
SKU: 775485785
Availability: InStock
Rating: 4.4 (51 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

A Female USB Connector 9 Pin 3.0 USB Connector/USB Adapter

YU series electrical connectors IP67

1. Independent USB3.0 socket design, easy to install and operate

2. Achieve double-head male to female adapter, snap locking

ensure safe and stable cable can be customized

3. Compatible with USB2.0

4. Protection level IP67

5. Sheath of cable protect cable outlet well

6. Solid connections system can provide the solutions for data transmission in harsh environments

LP-24-USB3.0-P01 LP-24-USB3.0-S01
Specifications:
Connecting mode:	Quickly bayonet connect
Protection level:	P67
Cable specification:	0.15mm2 ~ 0.2mm2 /26~24AWG
Diameter range:	Φ5.5mm ~Φ7mm
Contact diameter×Qty:	9
Current rating(A):	1.5A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	1000V
Contact resistance:	<30mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	Solder
Prevent the combustion level:	UL94-V0
Product type:	USB Convert Serial Cable Connector
Material:
Shell&insulated parts:	High-performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel
Main characteristics:
- Sealed against dust and fluid (IP67)
- Vibration resistance, impact resistance, stretching resistance
- 1/4 bayonet connect; socket with cover
Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery

Packaging & Shipping

1. 5pcs to a box, 40 boxes to a carton, or use customized packing with MOQ1000 pcs/model boxes

2. Lead time: 1-10 working days after received deposit for USB Convert Serial Cable Connector

3. DHL/UPS/Fedex/EMS/TNT(door to door) or use customer partner

Our Services

1. Supply OEM and ODM service for USB Convert Serial Cable Connector

2. With professional quality control system and R&D department

3. To make customized needs with national level laboratory

4. Free samples are available for USB Convert Serial Cable Connector

5. Supply the best service to you with the contact details below:

TEL:0086-0755-86960323 FAX:0086-0755-86960305

Cellphone: 0086-18312490311

Prod Model:	LP-24-USB3.0-P01 LP-24-USB3.0-S01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Cnlinko
Waterproof Rating:	IP65
Connecting Mode:	Quickly Bayonet Connect
Pin:	9pin
Shell & Insulated Parts:	High Performance Engineer Plastic
Current Rating(a):	1.5A
Operating Voltage:	500V
Colour:	Black
Temperature Rating:	-40°c~80°c
Cooper Needles:	Copper Alloy(Gold-Plated)
Application:	Battery
Installation Mode:	Rotary Jack
Type:	SD+MMC+MS Jack
Interface Type:	PCI
Shape:	Rectangular
Production Process:	Welding
Customized:	Customized
Working Frequency:	High Frequency
Feature:	Fire/Flame Retardant
Cards Support:	Dual Card

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
