| Prod Model: |
DH-24-USB3.0-P01, DH-24-USB3.0-S01 |
| Durability: |
≥500times |
| Certificate: |
CCC/ TUV/ UL/ Ce/ RoHS |
| Connector Type: |
Easy Locking Type |
| Contacts: |
Brass Glod-Plating |
| Protection Level: |
IP67/IP65 |
| Working Temperature: |
-40ºC~80ºC |
| Material: |
PBT |
| Current Rating: |
1.5A |
| Flammability Rating: |
UL94-V0 |
| Waterproof Cover: |
Silica Gel |
Product Description

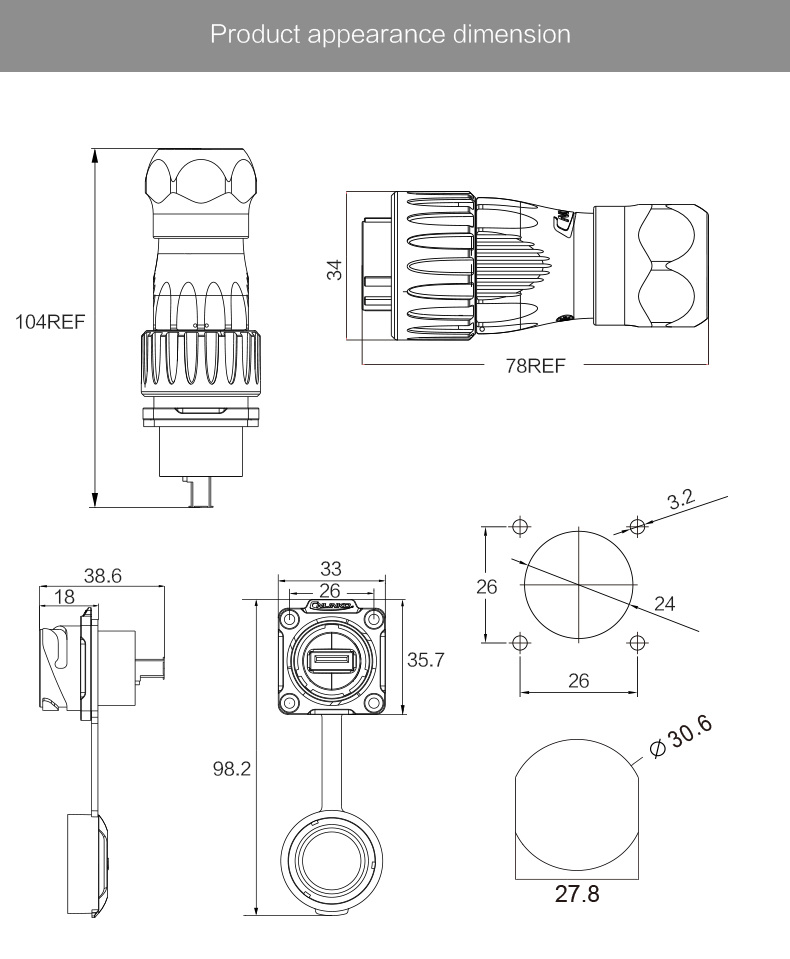

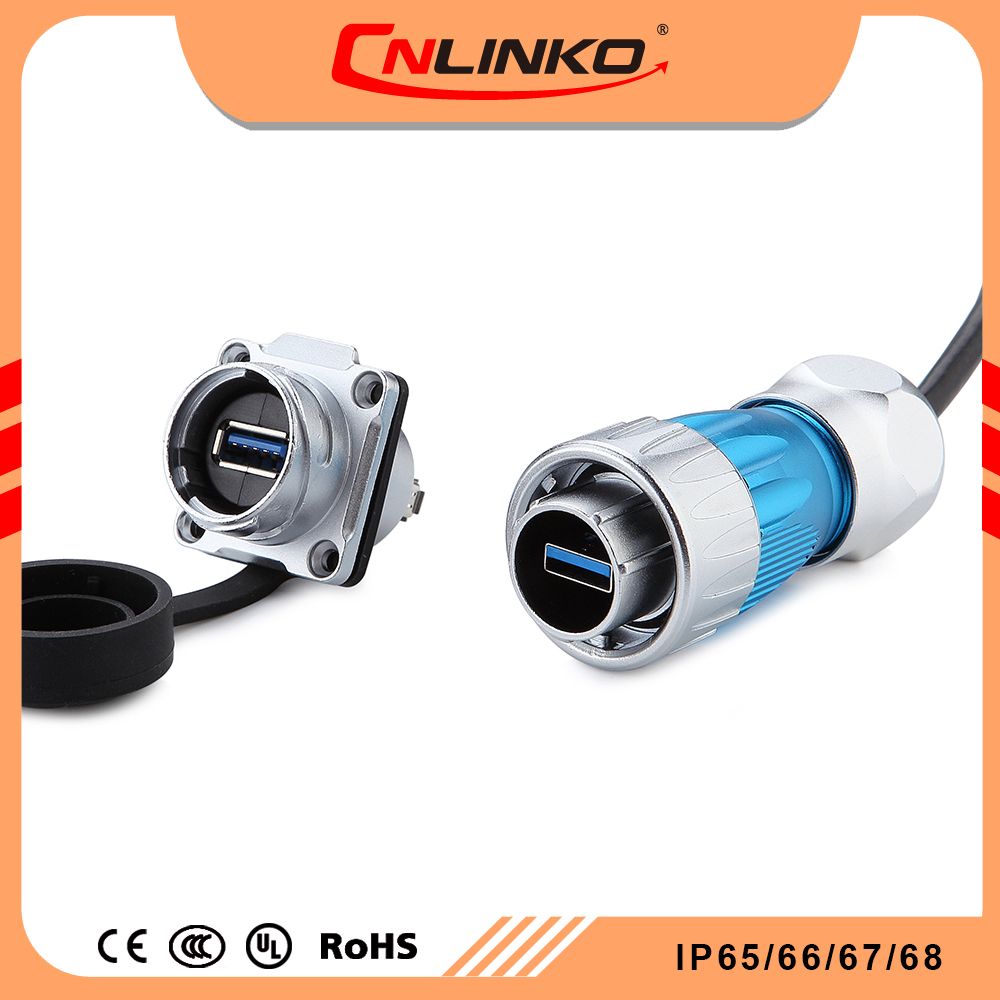

Double Sae USB 3.0 Panel Mount Cable Water Circular Receptacle IP65 Connector
Features:

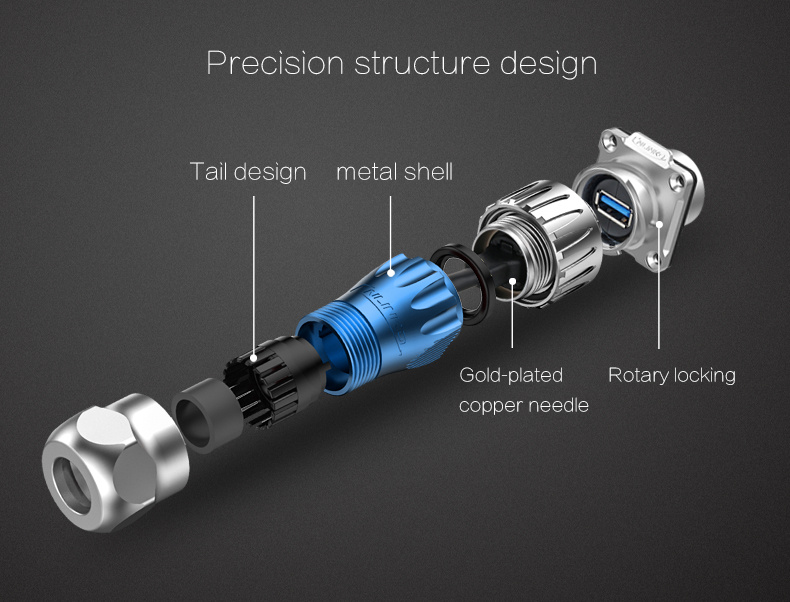

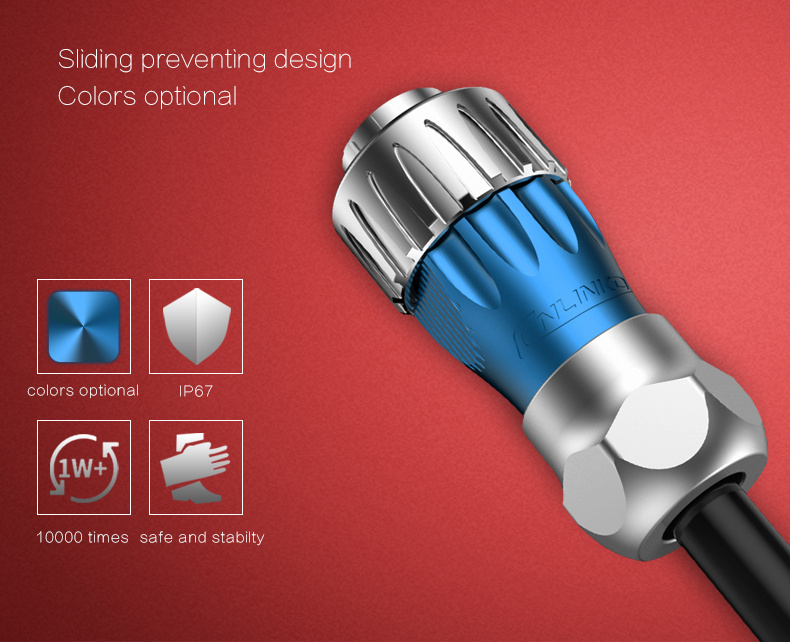

- Design snap lock ensures stable and security firm.
- Humanization design achieved blind operation.
- Both soldering and crimping are available.

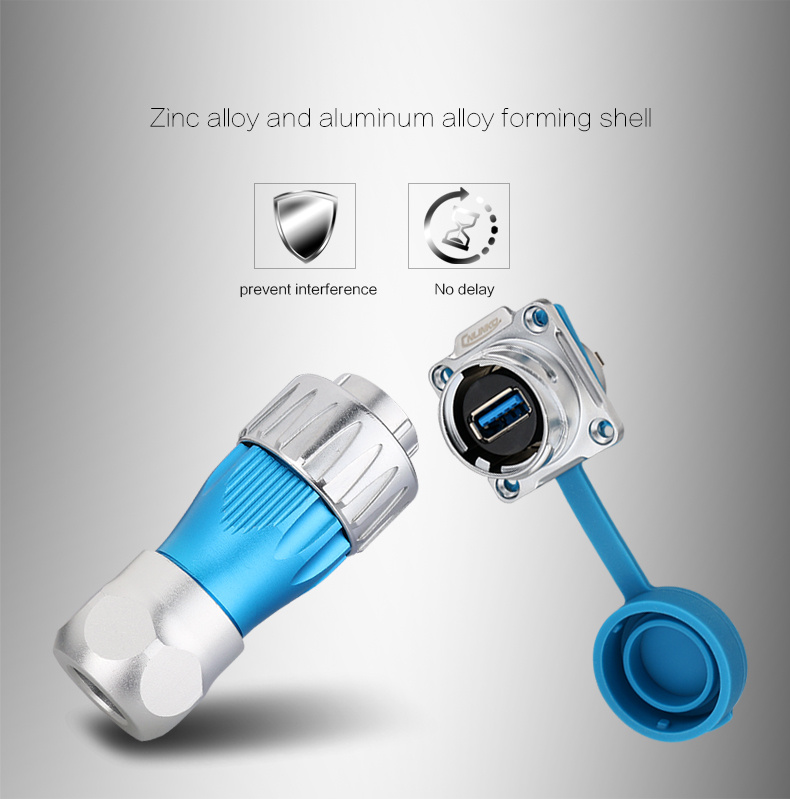

- Socket and internally made of zinc alloy, with well protected electromagnetic and radio frequency interference.
- Gold-plated, high strength corrosion resistance, and electrical conductivity.
- Shell made of material PBT, stable electrical performance, high strength and resistance to pressure, high-temperature resistance, anti-explosion, anti-corrosive.
- Both cable connector to cable connector and cable connector to panel mounting are available.
- IP65/IP67 when mated.
Product DescriptionCNlinko products Multi-core waterproof connector, widely used in the Lighting system, Audio, Medical equipment, Industrial control and testing measurement equipment, LED display screen, Stage Lighting equipment, DMX Lighting, Entertainment, Ethernet, Computers, Scanner and transmission equipment and other industrial fields.
Data Sheet| Specifications |
| Connecting mode | Latching Lock connect |
| Protection level | IP65/IP67 |
| Cable specification | 0.15mm2 ~ 0.2mm2 /26~24AWG |
| Diameter range | Φ5.5mm ~7Φmm |
| Contact diameter×Qty | 9pin |
| Current rating(A) | 1.5A |
| Temperature rise | 20A contact temperature below 30ºC 25A contact temperature below 40ºC 30A contact temperature below 50ºC |
| Operating voltage(AC.V.rms) | / |
| Withstanding voltage(AC.V)1min | 1000V |
| Contact resistance | <30mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | / |
| Assembly wire | / |
| Prevent the combustion level | UL94-V0 |
| Material |
| Insulated parts | High-performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated 4U) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics |
| Sealed against dust and fluid (IP65/IP67) |
| Vibration resistance, impact resistance, stretching resistance |
| socket with cover |
| Application industries |
| Stage equipment - The smart grid |
| Medical equipment - Server |
| Solar energy equipment - Ship equipment |
| Electric power equipment - Vehicle equipment |
| Communications equipment - Heavy machinery |
Certifications
Company Information
Packaging & Shipping- CNLINKO packing or Customized Packing (MOQ1000pcs each model)
- Packing detail: 2pcs/PE bag, 10pcs/small box, 240pcs/CTN
- Lead Time: 3-5 working days after received payment
- Shipment: by express, by air, by sea
- Payment term:100% T/T in advance
- Payment method: T/T, Western Union, Paypal
Our Services- Our enterprise will strictly follow the connector specifications and deliver the products in due time as required by the contract
- CNLINKO will provide waterproof connector technological maintenance and guarantee within one year if any quality problem happens to our product
- Professional personnel will provide product specifications, product choice suggestions, and installation methods
- Professional personnel will provide operation training for free
- Zero-distance service and phone number for around-the-clock service
-
FAQQ1: What are connectors?
A1: Connectors are connected to the electrical and mechanical components of electrical circuits.They are widely used in various electrical circuits, plays the role of connecting or disconnecting the circuit.
Q2: What classification do connectors have?
A2: In accordance with the frequency points, a high-frequency connector and the low-frequency connectors; in accordance with the shape divided circular connectors, rectangular connectors; in accordance with the zoning, there are connectors for printed boards, cabinets, socket connector, connectors for audio equipment, power connector, connectors, etc. for special purposes.
Q3:What is rated voltage?
A3: Rated voltage is also known as operating voltage, which mainly depends on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.
Q4:What is rated Current?
A4: Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug, in general, can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact resistance, contact on will be heated. When the heat exceeds a certain limit, the plug will damage the insulation and the formation of air exposure on the surface of the coating to soften, resulting in failure.
Q5:Why choose cnlinko?
A5: Our product has passed UL,CUL,CCC,CE and ROHS certification. Use PBT material that imports from abroad with stable, compression, anti-explosion and anti-deformation; Use Zinc alloy material against high-frequency noise and electromagnetic interference Use gold-plated contact with the high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
Q6:Is there cheap shipping cost to import to our country?
A6: For small order,express will be best.And for bulk order,sea shipway is best but take much time. For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q7:Can we get support if we have our own market position?
A7: Please inform us your detailed mind on your market demand,we will discuss and propose the helpful suggestion for you,to find the best solution for you!
