| Prod Model: |
YU-USB-JSX-03-100 male plug+ female socket |
| Pin: |
9 Pin |
| Insulation Resistance: |
>500mΩ |
| Current Rating: |
1.5 |
| Operating Voltage: |
500V |
| Protection Level: |
IP65 |
| Flammability Rating: |
UL94-V0 |
| Material: |
PBT |
| Connector Type: |
Easy Locking Type |
| Assembly Wiring: |
Soldering |
| Certificate: |
CCC/ TUV/ UL/ Ce/ RoHS |
Product Description
Male Female Connector Wiring USB Panel Connector Weatherproof IP67
Key Features:
- USB3.0 Support Full-duplex compatible USB2.0
Use of zinc alloy materials, high-frequency noise immunity, and electromagnetic interference protection
The silicone material clamps the wire sleeve realizes to the wire protection effectively

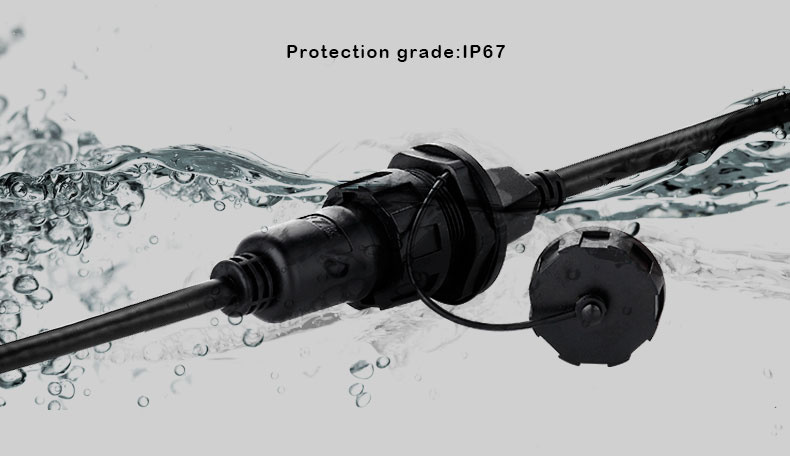

The product conforms to the IP65/IP67 protection grade under the connection condition
The plug with the standard line length 0.5M, the operation is simple
Product DescriptionCNlinko products Multi-core waterproof connector, widely used in the Lighting system, Audio, Medical equipment, Industrial control and testing measurement equipment, LED display screen, Stage Lighting equipment, DMX Lighting, Entertainment, Ethernet, Computers, Scanner and transmission equipment and other industrial fields.
Certifications
Company Information
Packaging & Shipping- CNLINKO packing or Customized Packing (MOQ1000pcs each model)
- Packing detail: 2pcs/PE bag, 10pcs/small box, 240pcs/CTN
- Lead Time: 3-5 working days after received payment
- Shipment: by express, by air, by sea
- Payment term:100% T/T in advance
- Payment method: T/T, Western Union, Paypal
Our Services- Our enterprise will strictly follow the connector specifications and deliver the products in due time as required by the contract
- CNLINKO will provide waterproof connector technological maintenance and guarantee within one year if any quality problem happens to our product
- Professional personnel will provide product specifications, product choice suggestions, and installation methods
- Professional personnel will provide operation training for free
- Zero-distance service and phone number for around-the-clock service
FAQQ1: What are connectors?
A1: Connectors are connected to the electrical and mechanical components of electrical circuits.They are widely used in various electrical circuits, plays the role of connecting or disconnecting the circuit.
Q2: What classification do connectors have?
A2: In accordance with the frequency points, a high-frequency connector and the low-frequency connectors; in accordance with the shape divided circular connectors, rectangular connectors; in accordance with the zoning, there are connectors for printed boards, cabinets, socket connector, connectors for audio equipment, power connector, connectors, etc. for special purposes.
Q3:What is rated voltage?
A3: Rated voltage is also known as operating voltage, which mainly depends on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.
Q4:What is rated Current?
A4: Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug, in general, can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact resistance, contact on will be heated. When the heat exceeds a certain limit, the plug will damage the insulation and the formation of air exposure on the surface of the coating to soften, resulting in failure.
Q5:Why choose cnlinko?
A5: Our product has passed UL,CUL,CCC,CE and ROHS certification. Use PBT material that imports from abroad with stable, compression, anti-explosion and anti-deformation; Use Zinc alloy material against high-frequency noise and electromagnetic interference Use gold-plated contact with the high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
Q6:Is there cheap shipping cost to import to our country?
A6: For small order,express will be best.And for bulk order,sea shipway is best but take much time. For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q7:Can we get support if we have our own market position?
A7: Please inform us your detailed mind on your market demand,we will discuss and propose the helpful suggestion for you,to find the best solution for you!
Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.
We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.
Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.
Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.
We will always keep skills fresh and up-to data with international.
Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.
Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
