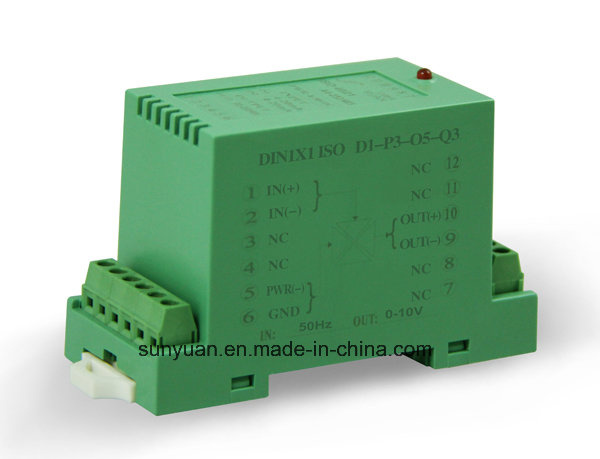

| Prod Model: |
DIN1x1 ISO U/A/R-O Series |
| Type: |
Isolation Amplifier |
Product Description
Analog Loop Powered Isolation Amplifier IC
2-wire Passive Loop Powered Analog Signal Isolation Transmitter
ISO U/A/R-O Series
Features
-Unique high efficient loop powered technique, external power supply is not required.
-Designed for various types of analog signal input, loop powered output.
-2-wire, 3-wire, 4-wire sensor active signal amplification and isolated transmission.
-Input terminal accept meters and sensor single or bidirectional voltage or current signal:
0-75mV/0-5V/0-10V/0-±10mV/0-±5V/0-±10V,ect
0-1mA/0-10mA/0-±1mA/0-±20mA/4-20mA, etc.
-Input 0-2KΩ / 0-10KΩ, etc resistance or potentiometer signal.
-3kv isolation voltage between analog input loop and current loop output.
-High accuracy and linearity in full measuring range, non-linearity < 0.1%
-Low cost small size SIP 12Pin, standard PCB-mounted.
-Industrial temperature range: -40 ~ +85 ºC, in compliance with UL94V-0 flame-retardant standards.
Applications
-DC current or voltage signal isolation, amplification and conversion.
-Displacement, weight bridge, potentiometer signal acquisition, isolation and control.
-mV small signal to standard 4-20mA analog signal conversion.
- PLC/DCS and meters, sensor signal receiving and transmission.
- System ground wire current loop interference isolation and inhabitation.
-Industrial site analog signal long distance transmission and interference isolation.
- Analog signal transmission between sensor and meters.
- Industrial system analog signal isolation and conditioning. One input two outputs, one input three outputs, one input four outputs, two input two outputs, and three inputs three outputs transmission.
| Continuous Isolation Voltage 3000Vrms |
| Vin 30VDC |
| Junction Temperature - 40 ~ +85 ºC |
| Storage Temperature +150ºC |
| Lead Temperature +300ºC |
| Output Short to Common Continuous |
Model selection examples:
E.g.1: Signal input: 0-10mA; signal output: 4-20mA; PCB-mounted.
Model No.: ISO A2-O1
E.g. 2: Signal input: 0-5KΩ; signal output: 4-12mA; PCB-mounted.
Model No.: ISO R7-O3
E.g.3: Signal input: 0-±5V; signal output: 12-20mA; PCB-mounted.
Model No.: ISO U5-O5
E.g. 4: Signal input: 0-±10V; signal output: 4-20mA; two-input two-output.
Type I standard 35mm DIN Rail-mounted.
Model No.: DIN 2 X 2 ISO U6-O1
E.g. 5: Signal input: 0-10V; signal output: 4-8mA; one-input one-output.
Small size 35mm DIN Rail-mounted.
Model No.: DIN 3 ISO U2-O4
