| Product description: |
- Completely-enclosed, good mechanical behavior, suitable environments, strong voltage
isolation ability, delicate appearance;
- The secondary lead wire is pin format, which can be directly welded on a PCB;
- The mechanical dimensions for this series of PTS are relatively small, hence can be used an
electronic component;
- Good lineaity, high precision, wide operating range;
- PBT anti-combustion plasic casing;
- Encapsulated with epoxy resin to ensure strong insulation ability.
Usage of current-voltage transformer
PT series products are mini current type voltage transformers, are widely applied to
the electric quantity transmitter, power monitor and so on, circuit of typical applications as
shown in Fig.1 and Fig.2. Input and output current ratio is 1: 1, maximum input current is
10mA, primary input voltage should be less than 1000V (connecting with current-limiting
resistor), allowable ratio difference±0.1% and angular difference ±10 ' , zero load.
- Fig.1 Secondary load almost is 0, when the measured input voltage VIN subject to current
limiting by the current-limiting resistor R1N, the produced current of 0-2mA flows through
the mini voltage transformer, the transformer detects the same current of 0-2mA, it is
able to adjust the feedback resistance R through operational amplifier, to get the needed
voltage output on the output terminal.
- Fig.2 Parallel resistance R direct output circuit, resistance R not more than 500Ω
(maximum output voltage 1.5V). As the circuit has large load, the phase difference is larger
correspondingly, but the linearity is essentially unchanged. |
| Model | Specifications | Rated Pr current | Max Current | Rated Sec Current | Rated sampling voltage | Load Resistance | Accuracy Class |

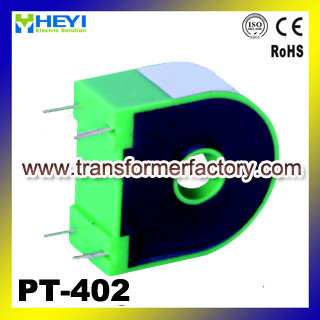

| PT-402 | 2A/2mA | 2mA | 10mA | 2mA | 100mV | 50Ω | 0.1 |
| 5A/5mA | 5mA | 10mA | 5mA | 100mV | 20Ω | 0.1 |
Features:
low voltage current transformer
PBT housing, high temperature resistance, corrosion resistance; epoxy potting, good barrier properties, impact resistance; small size, beautiful appearance, easy to install, plug pin soldered directly to the circuit board; circuit is simple, reliable, and not an operational amplifier, No external DC power supply (only voltage type).
Products are widely used voltage load remote monitoring, electronic control system voltage of the input signal, a voltage meter to measure the signal, high-frequency voltage detection and so on.
Note:
? Housing material: PBT resin, 94-V0 flammability rating
? Internal insulation: epoxy potting
? dielectric strength: 2500V/min.
? Impulse voltage: 5000V (1.2/50μs standard lightning)
? Insulation Resistance: 1000M Ohms @ 500 Vdc
? Operating Temperature: -25 º C to +55 º C, -40 º C to +85 º C
? Operating frequency :50-400Hz
? Accuracy class: Meets IEC 60044-1 0.1,0.2 level, linearity level 0.1L
? Environmental: RoHS environmental requirements
Application :
Electronic energy meter, power transducer, precision power meter and other power and energy monitoring devices
Over current protection circuit of motor and other electrical appliances.
Useage: Work in all kinds of electrical meter and metering fields.
Strength: 1. Good material, sampling resistance precision and stable.
2. Various type.
3. Good service: make according to customer requirement.
4. Good electrical performance
We can produce it according to customers' requirements.
Electronic energy meter, power transducer, precision power meter and other power and energy monitoring devices
