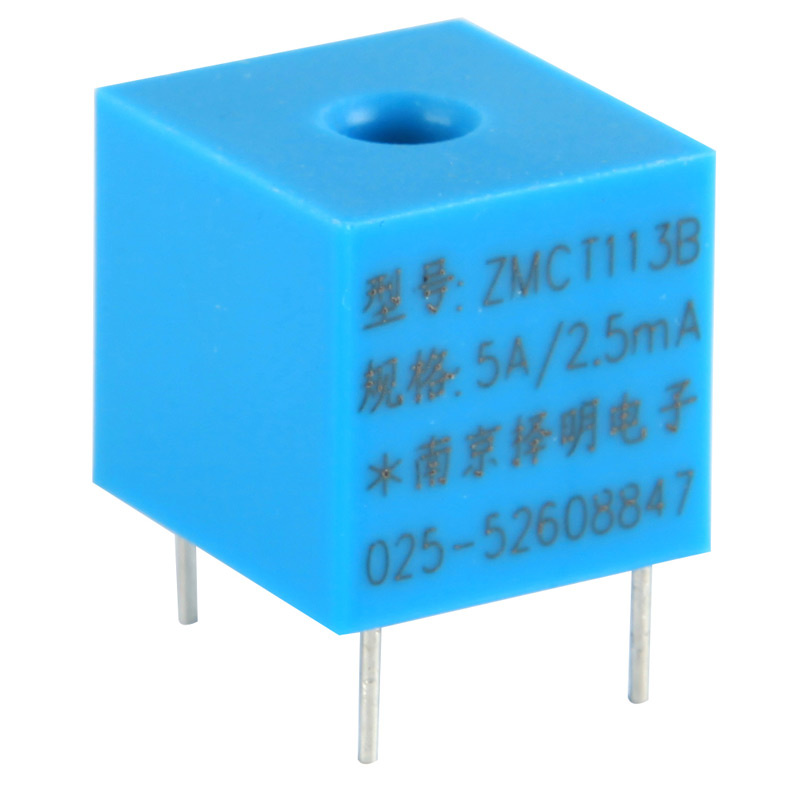

PCB Mounting Current Transformer 4.5mm Hole 30A 100ohm 2000: 1 0.2class
| Price: |
US $ 0.326-0.372pcs |
| Min Order: |
100pcs |
| Pay Type: |
T/T,Western Union |
ZMCT113B Current Transformer
Features and application: Small size,high accuracy,good consistency,for accurate current and power measurement Structural parameters:

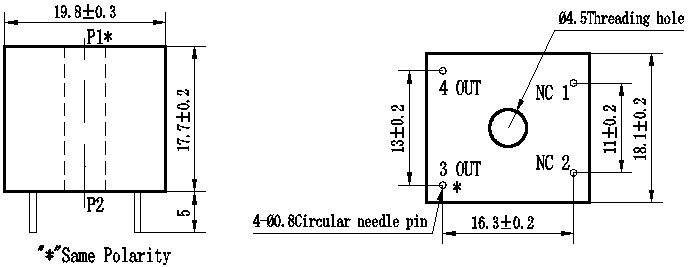

3,4pin: secondary output,1,2pin: empty pin Front view Bottom viewThe main technical parameters:| Model | ZMCT113B |
| Rated input current | 5A |
| Rated output current | 2.5mA |
| turns ratio | 2000:1 |
| phase angle error | ≤10'(input 5A,sampling resistor 100Ω) |
| linear range | 0~30A((sampling resistor 100Ω) |
| linearity | ≤0.2%(5%dot and 120%dot) |
| Ratio error | -0.2%≤f≤+0.2%(input 5A,sampling resistor 100Ω) |
| isolation voltage | 4500V |
| application | Precise current and power measurement |
| Encapsulation | Epoxy |
| installation | PCB mounting (pin length >3mm) |
| operating temperature | -40ºC~+70ºC |
| Shell material | ABS (Note: ABS shell is not available for wave soldering) |
Direction for use:

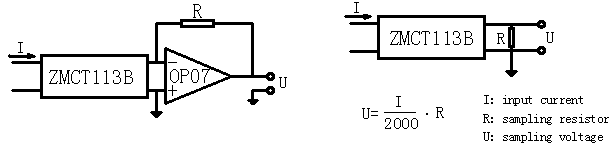

Figure I FigureII1. ZMCT113B used for the measurement. The typical usage is shown in Figure Iand Figure II. R is a sampling resistor.2. Empty pin can not be grounded.
| Prod Model: |
ZMCT113B |
| N.W: |
10g |
| Inner Hole Size: |
4.5mm |
| Turns Ratio: |
2000:1 |
| Accuracy Class: |
0.2 |
| Application: |
Lighting |
| Type: |
Current Transformer |
| Phase: |
Single |
| Installation: |
PCB Mounting |
