Fr4 pcb prototype pcb assembly with most pcb design software supported
At Rigao Electronics, we provide our customers with a wealth of experience in manufacturing PCB boards for industrial controls, medical devices, transportation and aerospace equipment with diverse end use applications. We can build your leaded or RoHS-compliant boards, with BGA, µBGA, fine-pitch and through-hole components. We work with rigid, flex, FR-4, metal, hybrid, single- or double-sided and multi-layer boards. We place both SMT and trough-hole components, fine pitch to 4 mil. We supply quick-turn prototypes through full production runs. We also handle your conformal coating and potting needs. If you have a labor-only quote we can handle that as well. Rigao is your full turnkey solution for all of your PCB needs.
1.Product introduce of prototype pcb assembly

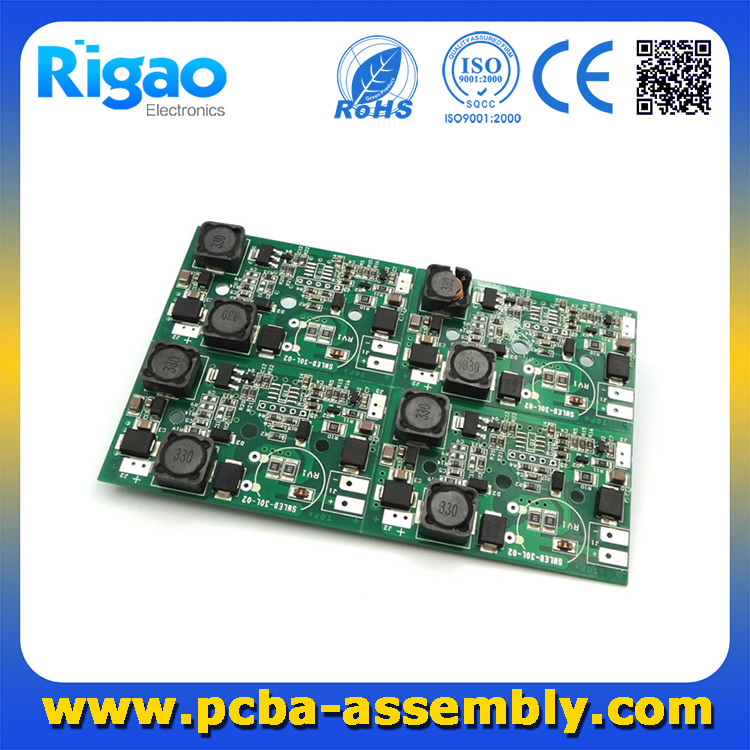

This protoype pcb assembly was made by Rigao-pcba Electronics as a one-stop services. We made it fomr PCB desing and pcb facbrication, then components purchasing and assembly. It's double layer pcb board with green solder mask, HASL lead free(environment friendly) surface treatment, 1oz copper thickness, 1.6mm board thickness, all compoents are orgianl ones with good quality. Rigao Devoted ourselves to pcb and assembly many years, covering most of European and the America market. We are expecting to be your pcb and assembly supplier in China.
2.Product parameter of prototype pcb assembly
| 1 | Layers | Single Sided,2 to 18 Layer |
| 2 | Board material type | FR4,CEM-1,CEM-3,ceramic substrate board, aluminum based board, high-Tg, Rogers and more |
| 3 | Compound material lamination | 4 to 6 layers |
| 4 | Maximum dimension | 610 x 1,100mm |
| 5 | Dimension tolerance | ±0.13mm |
| 6 | Board thickness coverage | 0.2 to 6.00mm |
| 7 | Board thickness tolerance | Board thickness≤1.0mm: +/-0.1mm
1Board thickness>2.0mm: +/-8% |
| 8 | DK thickness | 0.076 to 6.00mm |
| 9 | Minimum line width | 0.10mm |
| 10 | Minimum line space | 0.10mm |
| 11 | Outer layer copper thickness | 8.75 to 175µm |
| 12 | Inner layer copper thickness | 17.5 to 175µm |
| 13 | Drilling hole diameter (mechanical drill) | 0.25 to 6.00mm |
| 14 | Finished hole diameter (mechanical drill) | 0.20 to 6.00mm |
| 15 | Hole diameter tolerance (mechanical drill) | 0.05mm |
| 16 | Hole position tolerance (mechanical drill) | 0.075mm |
| 17 | Laser drill hole size | 0.10mm |
| 18 | Board thickness and hole diameter ratio | 10:01 |
| 19 | Solder mask type | Green, Yellow, Black, Purple, Blue, White and Red |
| 20 | Minimum solder mask | Ø0.10mm |
| 21 | Minimum size of solder mask separation ring | 0.05mm |
| 22 | Solder mask oil plug hole diameter | 0.25 to 0.60mm |
| 23 | Impedance control tolerance | ±10% |
| 24 | Surface finish | Hot air level, ENIG, immersion silver, gold plating, immersion tin and gold finger |
| 25 | Certificate | ROHS, ISO9001:2008, SGS, UL certificate |
| 26 | Acceptable file format | Gerber file,PROTEL series,PADS series,POWER PCB series,AutoCAD |
3. Product application and Feature
PCB boards for industrial controls, medical devices, transportation and aerospace equipment with diverse end use applications.

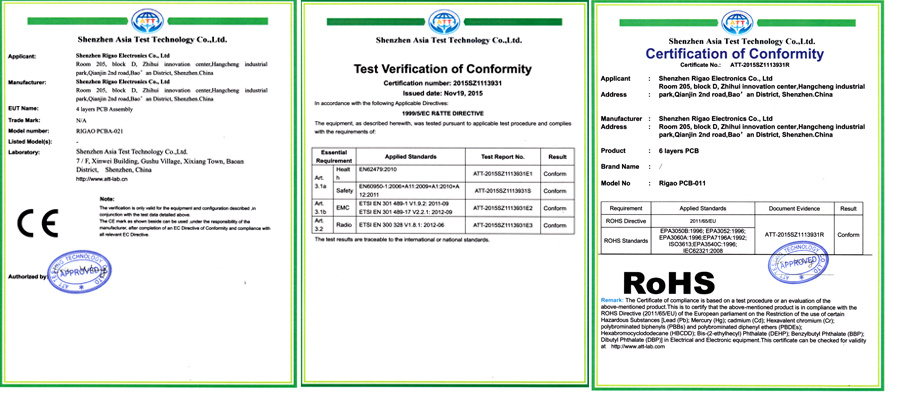

4. Product Qualification of prototype pcb assembly
5.Trade term of prototype pcb assembly
1. Payment: T/T in advance (Western Union is welcomed)
2. Production lead time 100PCS: 5-7days, 500~1000PCS: 7-10days, above 1000PCS 15-20days.
3. Sample can be delivered in 3days
4. Shipping freight are quoted under your requests
5. Shipping port: Shanghai, Mainland China
6. Discounts are offered based on order quantities
7. MOQ: 1PCS
