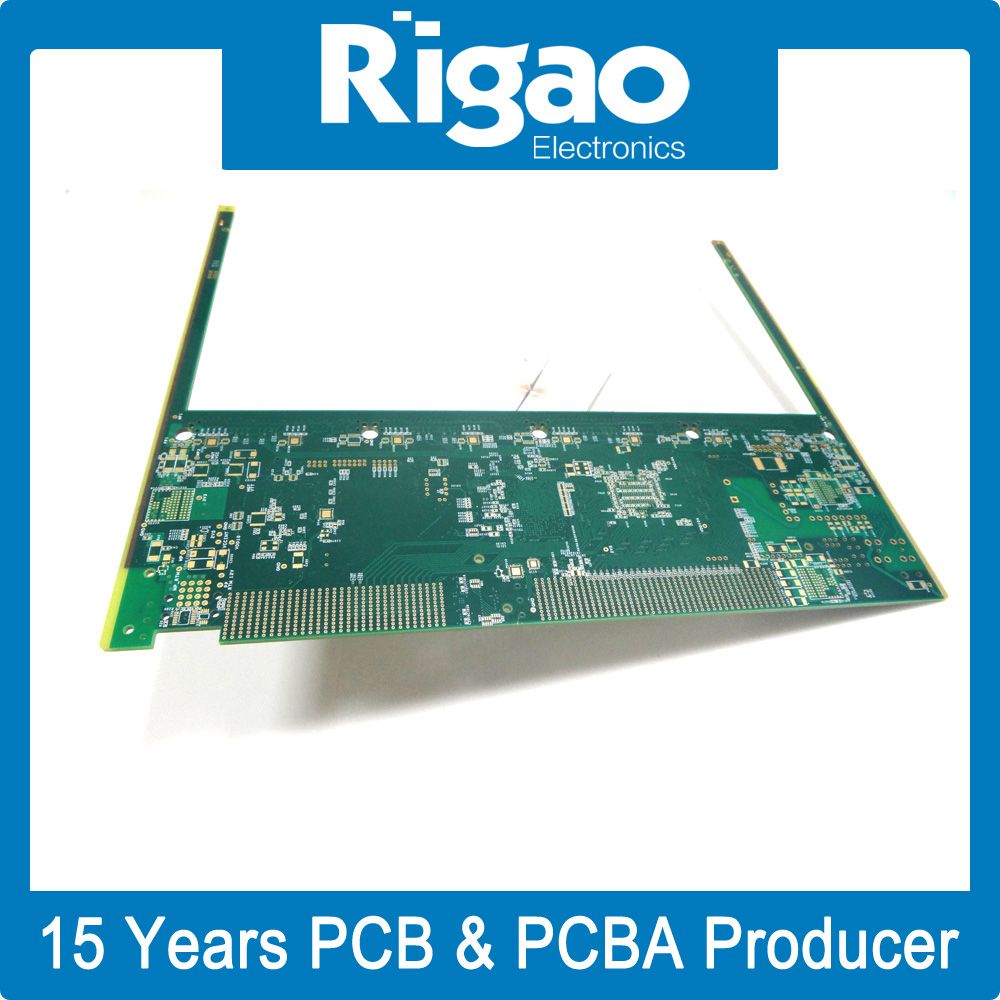

Top Sale Tg180 16 Layars PCB Board Multilayer Control Mainboard PCB Shenzhen Rigao Electronics Co, . Ltd is an experienced PCB and PCBA manufacturer in Shenzhen, China. After several years' developing and improving, our company establish our main business in three principal areas-Printed Circuit Boards(LED Light PCB), PCB Assembly and Components Procurement. From prototype to mass production, we are able to guarantee a complete service with technical back up, offering a cost advantage and continuity of supply.
Our aim: High quality, low cost & fast delivery for PCB( LED Light PCB) and PCBA.
Service: One-stop-service for PCB(LED Light PCB) and PCBA.
- Contract Manufacturing
- Engineering Services
- PCB Design & Assembly and copy service
- Prototyping
- Components purchasing
- Cable and Wire Assemblies
- Plastics and Molds
- Fast turn around
Detailed Specification of PCB Manufacturing 1,Layout:1-22 layer
2,Material:FR-4,CEM-1,CEM-3,Hight TG,FR4 Halogen Free,FR-1,FR-2,Aluminum
3,Board thickness:0.2mm-7mm
4,Max.finished board side:500mm*500mm
5,Min.drilled hole size:0.25mm
6,Min.line width:0.075mm(3mil)
7,Min.line spacing:0.075mm(3mil)
8,Surface finish / treatment: HALS/HALS lead free,Chemical tin,Chemical Gold,Immersion Silver/Gold,Osp,Gold Plating
9,Copper thickness:0.5-4.0oz
10,Solder mask color:green/black/white/red/blue/yellow
11,Inner packing:Vacuum packing,Plastic bag
12,Outer packing:Standard carton packing
13,Hole tolerance:PTH:±0.076,NTPH:±0.05
14,Certificate:UL,ISO9001,ISO14001,ROHS,CQC
15,Profiling Punching:Routing,V-CUT,Beveling
16,Assembly Service:Providing OEM service to all sorts of printed circuit board assembly
Detailed Terms for led PCB Technical requirement:
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.
Quote requirement for led pcb1)Gerber file and Bom list
2)Clear pics of pcba or pcba sample for us
3)Test method for PCBA
Product Description:1. Single-sided PCB, double side & multi
layer PCB with competitive price, good quality and excellent service.
2. CEM-1, CEM-3 FR-4, FR-4 High TG, Aluminum base material.
3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.
4. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
5. Quantities range from prototype to medium batch production.
6.100% E-Test.

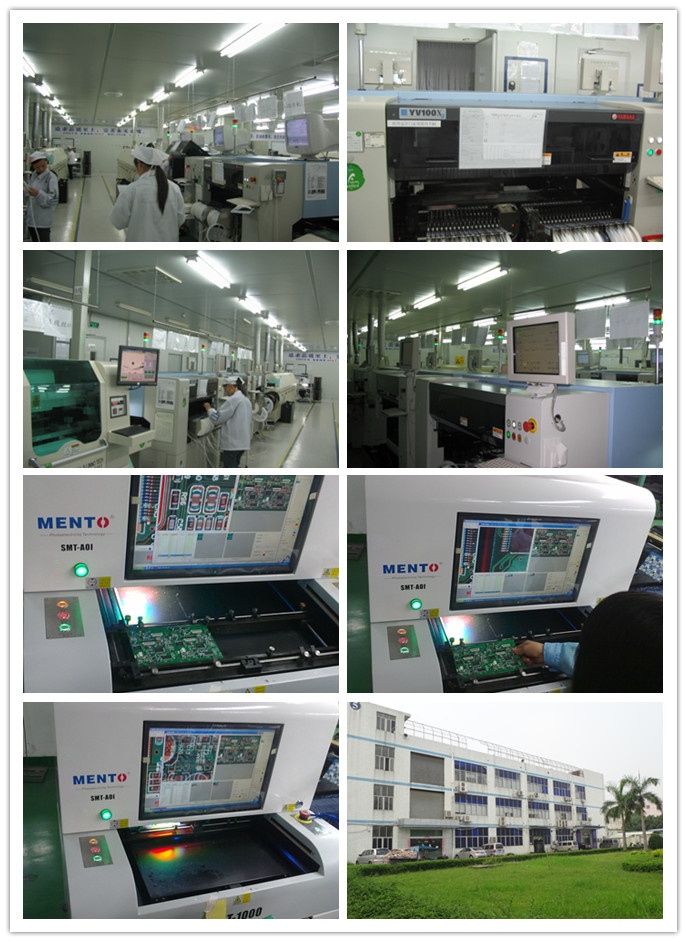

Factory Tour
Why choose us?
Our manufacturing and quality control processes are ISO 9001:2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best."
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, " To be the most reliable supplier of PCB and PCBA."
Our orientation is clear, "Focus on prototypes and low to medium volume business "
| ITEM | PCB |
| Layer number | 2-58 Layers |
| Board thickness | 0.2mm-3.2mm |
| Copper thickness | 1/2 o - 3 oz |
| Min.Line width/spacing | 0.1mm |
| Min .Hole size | 0.2mm |
| Min Punch diameter | 0.9 mm |
| Max.Panel size | 1160mm*560mm |
| tolerance | Hole size | ±0.075 mm |
| Line width | ±0.05 mm |
| Diameter | PTH±0.075 mm
NPTH±0.05 mm |
| Routing dimension | ±0.15 mm
±0.10 mm |
| Bow and twist | 0.70%-1% |
| Surface Finishing | HASL, Immesion Gold/Tin, OSP,... |
| Insulation Resistance | 10K∪-20M∪ |
| Test of voltage | 300V |
| V-cut | Panel size
| 110*100 mm~
1160mm*560mm |
Board thickness
| 0.6 mm |
| Tolerance | ±0.1mm |
Dilled slot width
| 0.50mm |
| Angle | 30°,45°,60°,90° |
| Tolerance of drilled slot (Slot size tol.>=2W) | PTH L: ±0.15 mm
W: ±0.1mm |
| Registration Tolerance of Front/Back image | 0.075mm |
| Multilayer P.C.B | Tolerance of innerlayer to innerlayer | 4 layers:0.15 mm |
| 6 layers:0.025 mm |
| Tolerance of Board thicknes | 4 layers: ±0.13mm |
| 6 layers: ±0.15mm |
| impedance | 50 ohm±10% |
