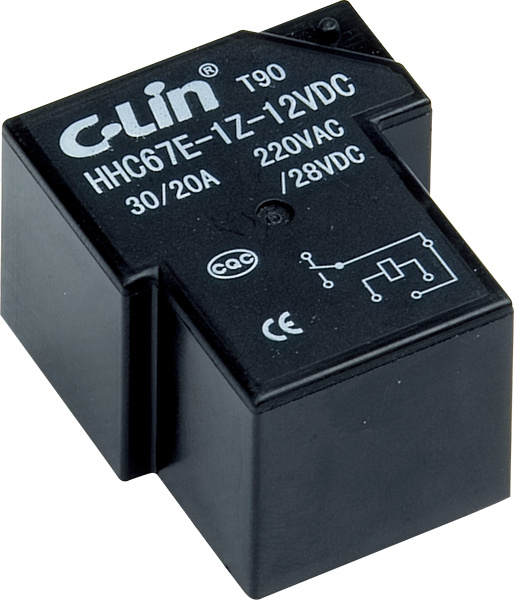

PCB Relay / Miniture Relay with CE, UL Approval (T90)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |

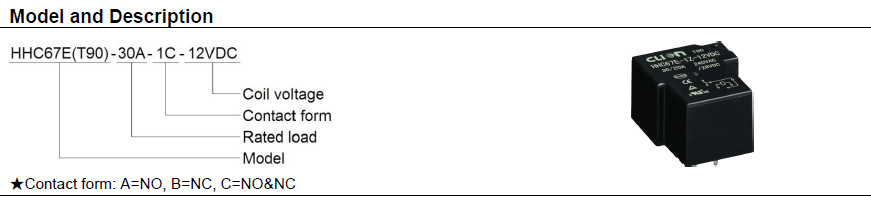

| Part No | HHC67E(T90) |

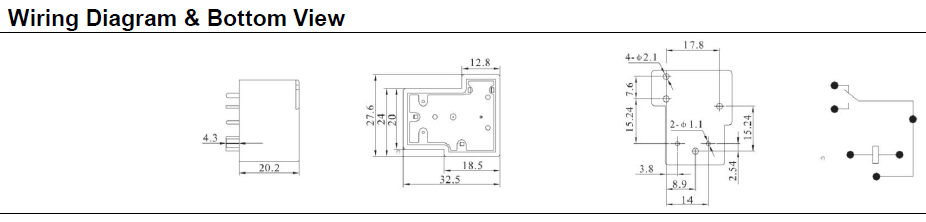

| Dimension | 32.5*27.6*20.2 |
| Contact Feature | Form | 1A, 1B, 1C |
Rated load | A: 30A/240VAC 28VDC | A: 40A/240VAC 28VDC |
| Z: 20A/240VAC 28VDC | Z: 30A/240VAC 28VDC |
| Contact resistance | less than or equal to 100mΩ |
| Material | silver alloy |
| Electrical life | equal to or greater than 1*105 |
| Mechanical life | equal to or greater than 1*107 |
| operate voltage(23 centigrade) | DC: less than or equal to 75%*rated voltage |
| AC: less than or equal to 80%*rated voltage |
| release voltage(23centigrade) | DC: equal to or greater than 10%*rated voltage |
| Maximum voltage(23 centigrade) | 110%*rated voltage |
| Normal coil voltage | DC | 3-110V |
| AC | 6-220V |
| Normal coil power | DC | 0.36W |
| AC | 1.2VA |
| Pick-up time | less than or equal to 15ms |
| Release time | less than or equal to 10ms |
| Dielectrical strength | Between Same-pole contacts | 1500VAC/1min(leakage current 1mA) |
| Between contacts and coil | 1500VAC/1min(leakage current 1mA) |
| Insulation resistance | equal to or greater than 100mΩ (500VDC) |
| Ambient temperature | minus 55 centigrade to 70 centigrade |
| Ambient humidity | 35%-80%RH |
| Atmospheric pressure | 86-106KPa |
| Shock resistance | 10G(sinusoidal half-wave pulse: 11ms) |
| Vibration resistance | 10-55Hz(double amplitude: 1.5mm) |
| Installation | PCB |
| Packing | Inner box | Paper box(pcs) | 50 |
| Outer box | Paper box(pcs) | 500pcs |
| Dimension of the carton | CTN | 360*210*325mm |
| Weight | 1PC | Approximate 33g |
| 1 CTN | G. W: 16.7KG N. W: 15.7KG |
| Prod Model: |
T90 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
32.5*27.6*20.2 |
| Weight: |
About 33G |
| Contact Form: |
1A. 1b. 1c |
| Rated Load: |
30A, 40A |
| Max Switching Voltage: |
240VAC/28VDC |
| Material: |
Silver Alloy |
| Contact Material: |
Silver Alloy |
| Pick-up Time: |
Less Than or Equal to 15ms |
| Release Time: |
Less Than or Equal to 10ms |
| Shock Resistance: |
10g |
Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.
Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.
The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.
Xinling is ready for creating a magnificent tomorrow together with you!
