PCB Terminal Block

Name: PCB Terminal Block
Brand: all-electronics-online.com
SKU: 609257134
Availability: InStock
Rating: 4.7 (94 reviews)

Price:	US $ 0.1/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

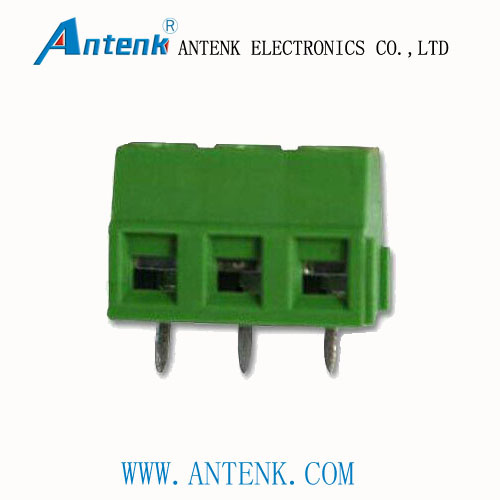

PCB Terminal Block
In 5.00/5.08mm/3.81mm Pitch, with Contact Resistance of 20m Ohms

Materials:
Screw: M3, steel, zinc-plated
Contact: Brass
Pin header: Brass, tin-plated
Housing: PA66, UL94V-0
Electrical:
Rated voltage: 150V
Rated current: 13.5A
Contact resistance: 20m Ohms
Insulation resistance: 5, 000M Ohms/1, 000V
Withstand voltage: AC 1, 500V/1min
Wire range: 26 to 16AWG, 1.5mm2
Mechanical:
Temperature range: -40/+105 degrees Celsius
Max soldering: +250 degrees Celsius, 5 seconds
Torque: 0.5Nm (4.5lb. In)
Strip length: 5 to 6mm.

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
