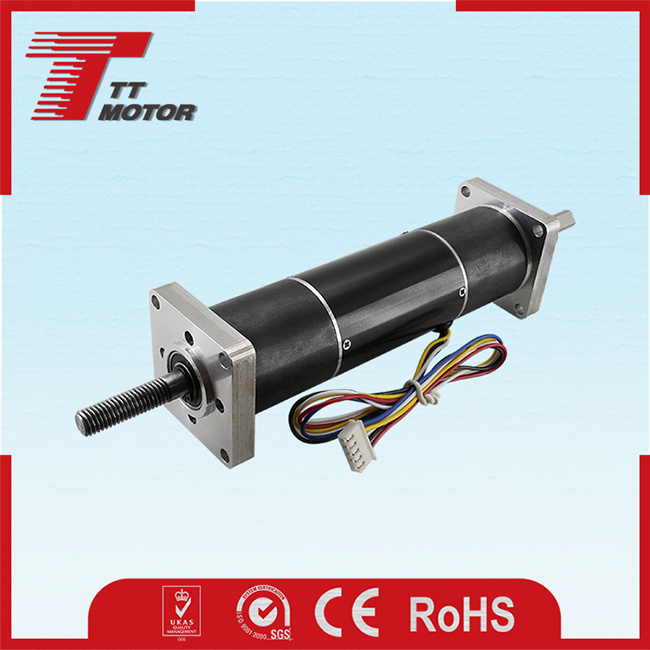

Permanent Magnet toy car DC Brushless Gear Motor

Prod Model:	DC Brushless Gear Motor GMP36D-TEC3650
Product Name:	DC Brushless Gear Motor GMP36D-TEC3650
Rated Voltage:	24V
No-Load Current:	200mA
Rated Speed:	5400r/min
Rated Torque:	200g.cm
Rated Current:	1000mA
Output Power:	11.5W
Stall Torque:	1150g.cm
Stall Current:	2.0A
No-Load Speed:	6500r/min
Application:	Power Tools
Operating Speed:	Low Speed
Structure And Working Principle:	Brushless
Excitation Mode:	Permanent Magnet
Function:	Totally Enclosed
Type:	DC Brushless Gear Motor
Certification:	RoHS CE
Brand:	TT Motor

Product Description

Permanent Magnet toy car dc Brushless Gear Motor

Main Features
1.OEM/ODM 36mm Planetary reducer plus TEC3650&3640 brushless motor
2.Small size dc gear motor with low speed and big torque
3.36mm gear motor provide 3.0Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.Reduction ratio: 4,14,19,27,51,71,100,139,189,264,369,516,720


Motor model no.	Rated voltage	No-load speed	No-load current	Rated speed	Rated torque	Rated current	Output power	Stall torque	Stall current
	VDC	r/min	mA	r/min	g.cm	mA	W	g.cm	A
TFC3650-2465	24	6500	200	5400	200	1000	11.5	1150	2.6
TFC3650-2440	24	4000	120	3200	200	600	6.6	1000	2.0
TFC3650-1245	12	4500	150	3500	230	880	8.3	820	2.5

Gear motor technical data : GMP36D-TEC3650-2465-xxx

Reduction ratio	4	19	51	100	139	189	264	369	516	720
Length mm	26	33.5	40.5	40.5	40.5	47.5	47.5	47.5	47.5	47.5
No-load speed rpm	1600	340	125	65	45	33	23	17	12	9
Rated speed rpm	1300	280	100	53	38	28	20	14.5	10	7.5
Rated torque kg.cm	0.6	2.7	6.0	12	16.6	22.5	30	30	30	30
Max.momentary tolerance torque kg.cm	3.7	15	35	69	70	70	70	70	70	70

Gear motor technical data : GMP36D-TEC3650-2440-xxx

Reduction ratio	4	19	51	100	139	189	264	369	516	720
Length mm	26	33.5	40.5	40.5	40.5	47.5	47.5	47.5	47.5	47.5
No-load speed rpm	950	200	75	40	28	20	15	10	7.5	5.5
Rated speed rpm	750	160	60	30	22	16	12	8	6	4.5
Rated torque kg.cm	0.6	2.7	6.0	12	16.6	22.5	30	30	30	30
Max.momentary tolerance torque kg.cm	3.7	15	35	69	70	70	70	70	70	70

Gear motor technical data : GMP36D-TEC3650-1245-xxx

Reduction ratio	4	19	51	100	139	189	264	369	516	720
Length mm	26	33.5	40.5	40.5	40.5	47.5	47.5	47.5	47.5	47.5
No-load speed rpm	1050	230	85	44	32	23	17	12	9	6
Rated speed rpm	875	185	68	35	25	18	13	10	7	5
Rated torque kg.cm	0.7	3.0	7.0	14	19	24	30	30	30	30
Max.momentary tolerance torque kg.cm	2.6	11	25	50	68	70	70	70	70	70

Product Application

Other Applications:
Business Machines:	ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:	Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Home Entertainment and Gaming:	Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys.
Home Technologies:	Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines.
Lawn and Garden:	Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Personal Care:	Hair Cutting, Hair Care, Massagers.
Power Tools:	Drills and Drivers, Sanders, Grinders, Polishers, Saws.
Camera and Optical:	Video, Cameras, Projectors.

Packing & Delivery
Packaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
China Post: Depends on ship to which country;
Sea: Depends on ship to which country
