Permanent Stepper Motor P251 (25MM) (P251)

Name: Permanent Stepper Motor P251 (25MM) (P251)
Brand: all-electronics-online.com
SKU: 647494735
Availability: InStock
Rating: 4.7 (102 reviews)

Price:	US $ 2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	P251
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	25mm
Number Of Phase:	4
Step Angle:	7.5/15°
Current:	0.15-0.5A
Resistance:	10-80o
Inductance:	2.1-18mh
Holding Torque:	90-130g. Cm
Detent Torque:	20-75g. Cm
Excitation Mode:	PM-Permanent Magnet
Type:	Magnetic-Electric
Brand:	I.CH

Product Description

Specifications:
-Number of Phase: 4
-Step Angle: 7.5/15°
-Current: 0.15-0.5A
-Resistance: 10-80ohm
-Inductance: 2.1-18mH
-Holding Torque: 90-130g. Cm
-Detent Torque: 20-75g. Cm
-Lead Wire No: 6

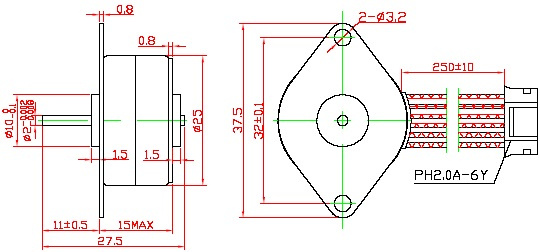

Drawing:

Specification
MODEL	No.of phase	Excita -tion	Step Angle	Current	Resistance	Inductance	Holding Torque	Detent Torque	Rotor Inertia	Lead Wires	Figure
MODEL	No.of phase	Excita -tion	°	A	Ω	mH	g.cm	g.cm	g.cm2	No.
P251-0126	4	2-2	7.5	0.5	10	2.1	120	45	<1.0	6	Figure 1
P251-0096	4	2-2	7.5	0.15	80	18	>90	<20	<1.0	6	Figure 2
P251-0136	4	2-2	15	0.4	30	6	>130	<75	<1.0	6	L=16mm

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
