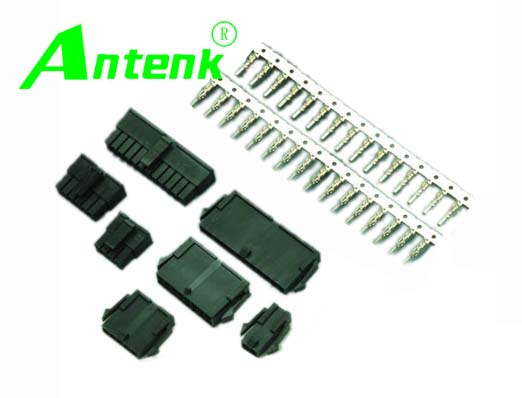

pH3.0mm Wire to Wire Connectors Wafer

Name: pH3.0mm Wire to Wire Connectors Wafer
Brand: all-electronics-online.com
SKU: 651251155
Availability: InStock
Rating: 4.8 (91 reviews)

Price:	US $ 0.02/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

3.0mm wire to wire system connectors

YY-5750-T crimp terminal
Properties:
Pitch between poles: 3.0mm
Voltage rated: 300V AC/DC
Current rated: 5A
Withstanding voltage: 1, 500V AC/minute
Insulation resistance: 1, 000MØ Minimum
Temperature range: -40 to +105° C
Characteristics:
Suitable in YY-5750-H crimp housing
Accepts AWG 20 to 30 wire range
Insulation O. D.: 1.75mm (maximum)
Material: Phosphor bronze
Finish: Tin-plated
Quantity/reel: 10, 000 pieces
Thickness: 0.2mm
Tolerance: +/-0.2mm
YY-5850-T crimp terminal:
Suitable in YY-5850-H crimp housing
Accepts AWG 20 to 30 wire range
Insulation O. D.: 1.75mm (maximum)
Material: LCP material
Finish: Tin-plated
Quantity/reel: 10, 000 pieces
Tolerance: +/-0.2mm
YY-5750-H housing:
Available in 2 to 24 circuits
Accepts YY-5750-T crimp terminal
Nylon66 UL94V-0
Mates with YY-5950-WXXS or YY-5950-WXXR series wafer or YY-5850-HXX series housing
YY-5850-H housing:
Available in 2 to 24 circuits
Accepts YY-5850-T crimp terminal
Nylon66 UL94V-0
Mates with YY-5750-HXX series housing

Prod Model:	YY-5750 YY-5950 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Single Hole Terminals
Material:	Copper Galvanized

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.
