Photoresistor 7mm Ldr High Sensitive Light-Dependent (MJ7539)

Name: Photoresistor 7mm Ldr High Sensitive Light-Dependent (MJ7539)
Brand: all-electronics-online.com
SKU: 788865345
Availability: InStock
Rating: 4.6 (45 reviews)

Price:	US $ 0.075-0.1/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

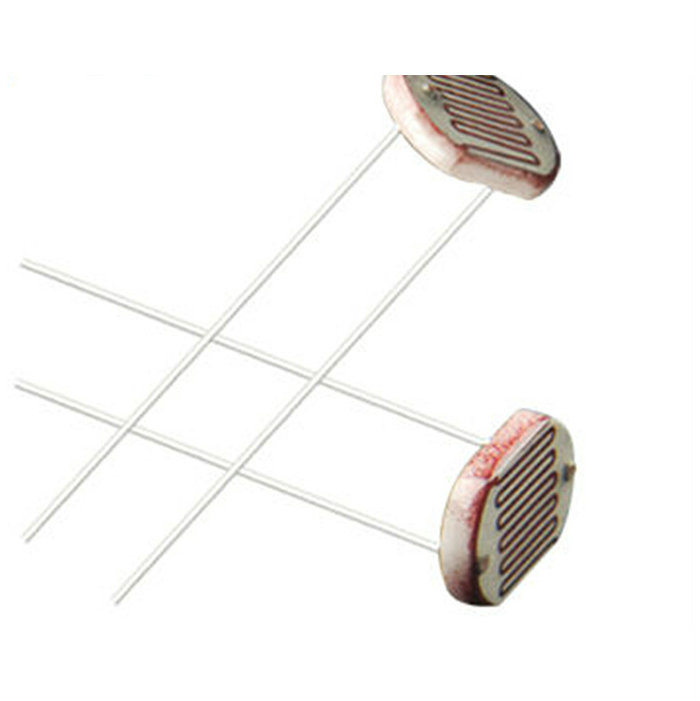

Photoresistor 7MM LDR Photo Resistors Light-Dependent(MJ7539)

Specifications
Good reliability Small volume
High sensitivity
Fast response
Good price

Photoresistor is a resistor which made of semi-conductor material,and the conductance changes with luminance variation .The photoresistor can be manufactured with different figures and illuminate area based on this characteristic.

Performances and Features

Coated with expoxy

Good Reliability

High Sensitivity

Small Volume

Fast Response

Good Spectrum Characteristic

Applications

- Camera Automation
- Indoor Sunlight Control
- Industrial Control
- Optical Lamp
- Optical Control Music IC
- Optical Control Switch
- Photoelectric Control
- Annunciator
- Electronic toy
- Electronic Detector

-Switch
-Light control
-Light control lamp
-Photoelectric control
-Camera automatic photometry

Technical parameter for 7mm photocell sensor

Specification	Type	Max Voltage (VDC)	Max power (mw)	Environmental temperature	Spectrum peak value (nm)
φ7	MJ7516	150	150	-30~+70°C	540
	MJ7517	150	150	-30~+70°C	540
	MJ7528	150	150	-30~+70°C	560
	MJ7537	150	150	-30~+70°C	560
	MJ7539	150	150	-30~+70°C	560

Specification	Light resistance (10Lux) (KΩ)	Dark resistance (MΩ)	r100/10	Response time (ms)		Illuminance resistance characteristic
Specification	Light resistance (10Lux) (KΩ)	Dark resistance (MΩ)	r100/10	Increase	Decrease	Illuminance resistance characteristic
φ7	5-10	0.6	0.6	30	30	2
	10-20	1	0.6	30	30	3
	20-30	2	0.7	30	30	4
	30-50	4	0.8	30	30	4
	50-100	8	0.8	30	30	6

Relatived Product Photo Show:

About Haiwang
Shenzhen Haiwang Sensor Co., Ltd is specialized in developing, manufacturing and export of photo resistor, thermisters, sensors, optical lenses and other sensitive components over 12 years.
Our products include photoresistance, photosensitive sensor, thermistor, pyroelectric infrared sensor,
infrared induction IC, fresnel lens, LED lens and other related sensitive components.

Prod Model:	HW-MJ7539
CDS Photoresistor:	Ldr
Size:	7mm
Max.Voltage:	150V
Rated Power:	100MW
Max Power Consurrption:	150MW
Environmental Temperature:	-30~+70
Spec Trum Peak Value:	540nm-560nm
Lightresistance:	5-100k
Dark Resistance:	0.6-8m
Responsetime:	30s
Resistance:	Sensitive Resistor
Installation:	DIP Resistor
Material:	Ceramic and Metal
Package Type:	Throught Hole
Type:	Photoresistor
Function For Resistance:	CDS Photoresistor
Application:	Optical Control Field
Brand:	OEM
