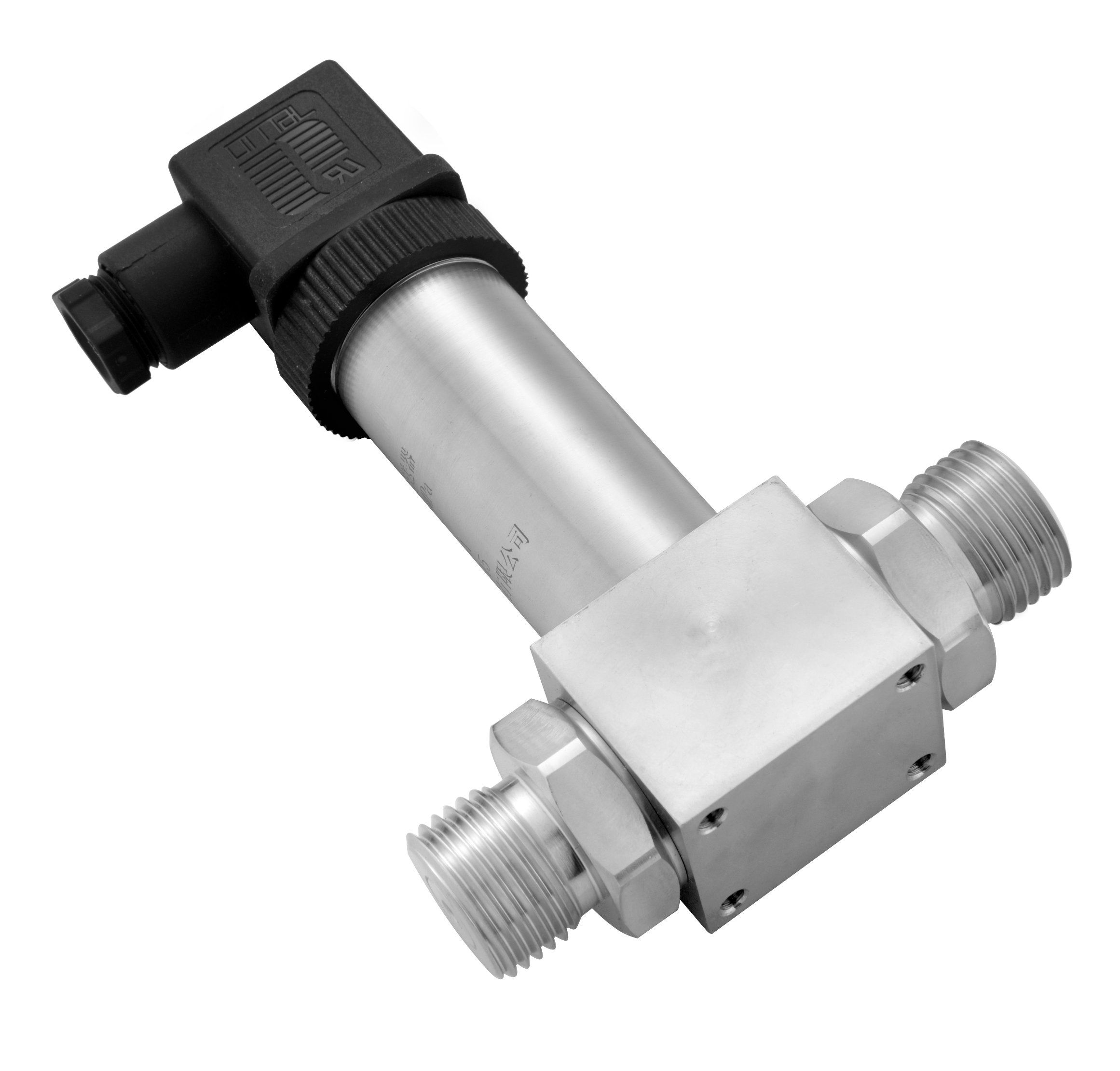

Piezoresistive Silicon Differential Pressure Transmitter with Ce (PCM610)

Name: Piezoresistive Silicon Differential Pressure Transmitter with Ce (PCM610)
Brand: all-electronics-online.com
SKU: 665703882
Availability: InStock
Rating: 4.6 (106 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	5/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Differential pressure transmitter
Piezoresistive silicon chip employed
Perfect long term stability
MEMS Technology
CE certificate

Pressure range
Pressure range		10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa
Overpressure		Range		Positive Overpressure		Negative Overpressure
		35kpa		70kpa		35kpa
		70kpa		150kpa		70kpa
		100kpa		200kpa		100kpa
		250kpa		500kpa		250kpa
		400kpa		800kpa		400kpa
		600kpa		1200kpa		600kpa
		1Mpa		2Mpa		1Mpa
		1.6Mpa		3.2Mpa		1Mpa
		2.5Mpa		5Mpa		1Mpa
Output signal
Span output		4-20mA \| 0.5 to 4.5V \| 1 to 5V \| 0 to 5V
Specification
Accuracy (linearity, repeatability and hysteresis)	±0.5%F.S. (Typical)
Excitation	24VDC \| 12VDC \| 5VDC
Compensated temp.	0ºC - 60ºC(10kPa - 100kPa) \| -10ºC - 70ºC(100kPa - 2.5MPa)
Operating temp.	-20ºC - 85ºC
Storage temp.	-40ºC - 125ºC
Insulation resistance	≥100Mohm/250VDC
Zero temp. coefficient	±1.5%F.S.max.( -20ºC - 85ºC)
Span temp. coefficient	±1.5%F.S.max.( -20ºC - 85ºC)
Bridge resistance	Min.		Max.		Unit
	2600		5500		ohm
Long term stability	0.2%F.S./year
Static pressure	20MPa (Max.)
Vibration	20g (20-5000HZ)
Oil filling	Silicon oil (Typical)
O-ring	NBR, Viton
Housing and diaphragm	Stainless steel 304(SS316 for sensor inside)
Wire	4 wire (typical) \| 5 wire (available) 39×φ0.015, Silicon shielded, 200ºC bearing
Weight	470g(approx)
Protection	IP65

Pressure connector

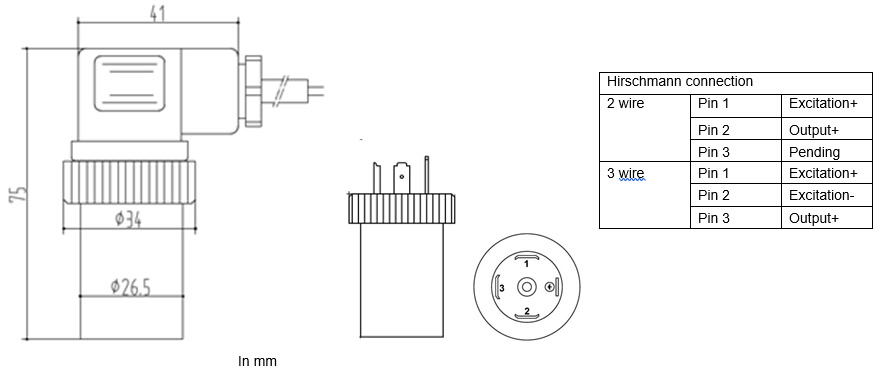

Electrical connection (DIN 43650)

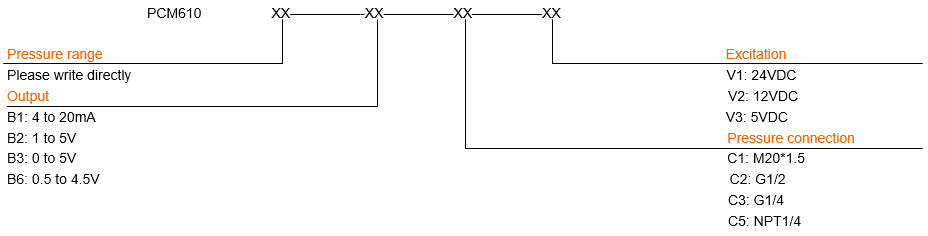

How to order

Prod Model:	PCM610
Markets:	North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe
Pressure Range:	0~10kpa...2.5MPa
Span Output:	4-20mA, 0.5 to 4.5V, 1 to 5V, 0 to 5V
Accuracy:	±0.5%F.S. (Typical)
Excitation:	24VDC, 12VDC, 5VDC
Operating Temp.:	-20ºC - 85ºC
Static Pressure:	20MPa (Max.)
Oil Filling:	Silicon Oil (Typical)
Housing Material:	Stainless Steel 304
Diaphragm Material:	316L
