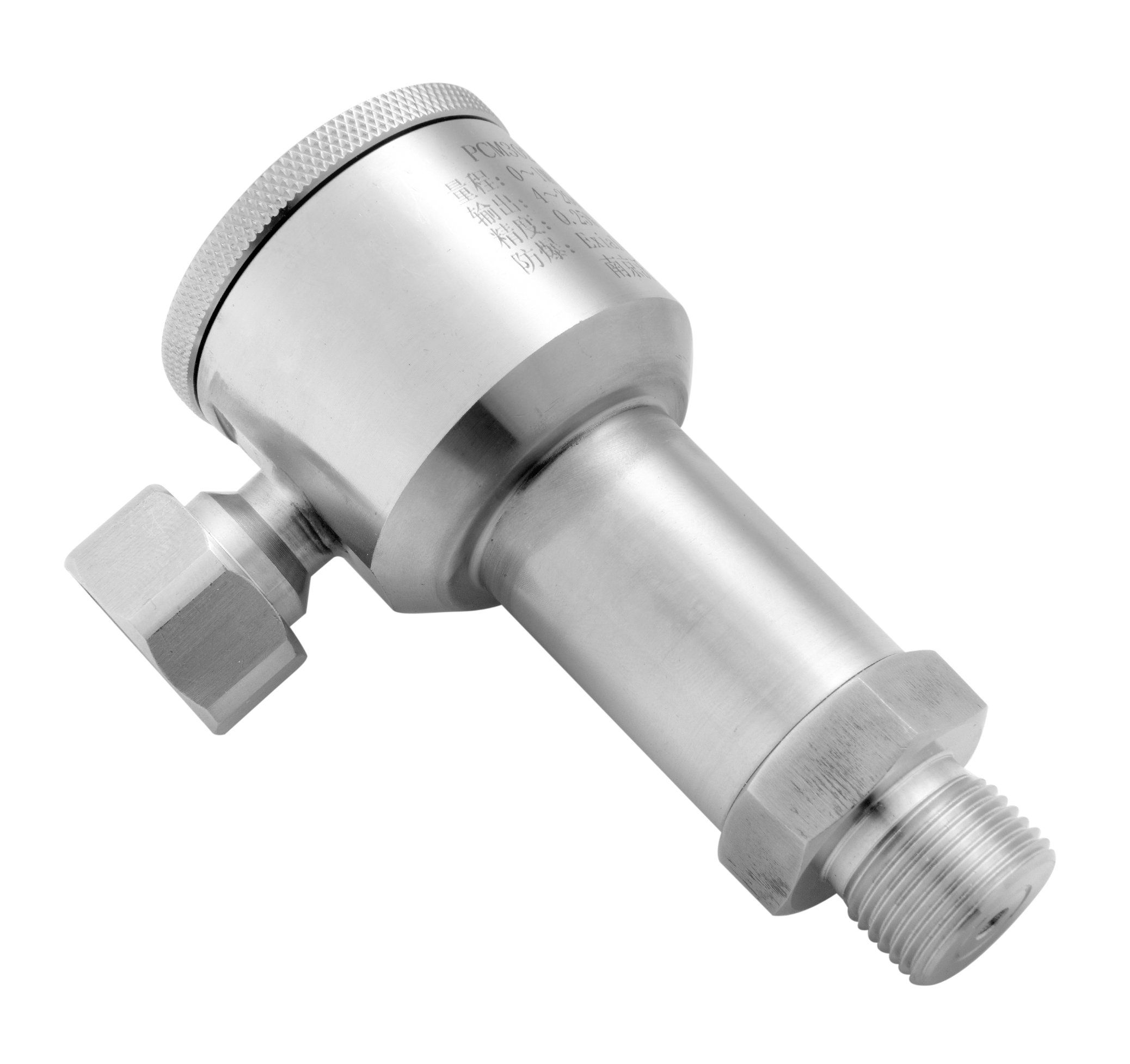

Piezoresistive Silicon Explosion Proof Pressure Transmitter with Ce (PCM302)

Name: Piezoresistive Silicon Explosion Proof Pressure Transmitter with Ce (PCM302)
Brand: all-electronics-online.com
SKU: 665762802
Availability: InStock
Rating: 4.8 (90 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	2/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Piezoresistive silicon chip employed
MEMS technology
Exia IIC T6
CE certified

PCM302 is designed for hazardous area application.
It is used for explosion-proof industry widely.

Advantages
Hazardous area application
Isolation explosion-proof
Good long term stability
Excellent linearity

Pressure range
Pressure range	-100kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa, 100MPa (bar and psi unit available)
Pressure reference	Gauge pressure \| Absolute pressure \| Sealed gauge pressure
Overpressure	200%F.S.(<25MPa) \| 150%F.S.(≥25MPa)
Output signal
Output	4 to 20mA \| 1 to 5V \| 0 to 5V
Specification
Accuracy (linearity, repeatability and hysteresis)	±0.5%F.S. (Typical)
Supply	24VDC \| 12VDC
Compensated temp.	-10ºC -70ºC \| -20ºC -85ºC
Operating temp.	-40ºC -125ºC
Storage temp.	-40ºC -125ºC
Zero temp. coefficient	±1.5%F.S.max.( -20ºC -85ºC)
Span temp. coefficient	±1.5%F.S.max.( -20ºC -85ºC)
Pressure connection	See "how to order"
Long-term Stability	≤0.2%F.S./year
Housing material	Stainless steel 304
Sensor material	Stainless steel 316L
O-ring	NBR, Viton
Protection	IP65
Ex-proof	Exia IIC T6

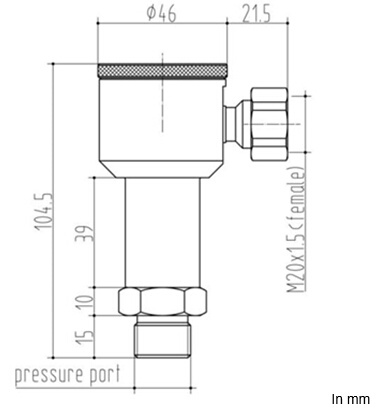

Drawing

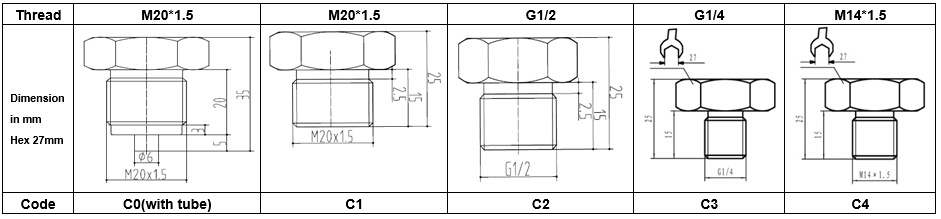

Pressure port

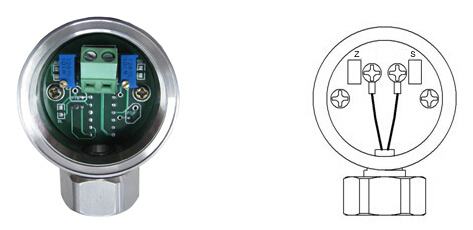

Wire connection

Note: The wire connection is non-polarity 2-wire connection. The supply and output can be connected with any side of the wire connecting terminal. No matter which terminal side the supply or output connects with, the effect is the same.

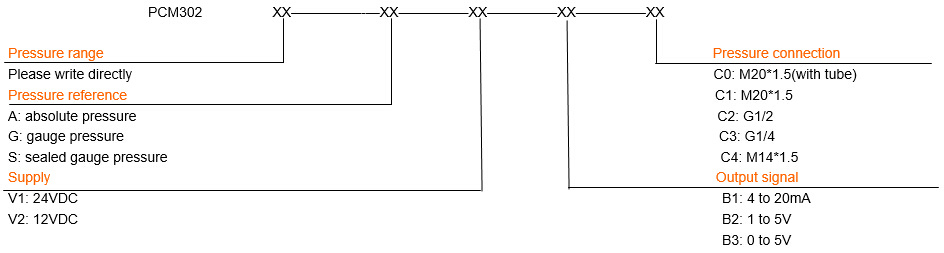

How to order

Prod Model:	PCM302
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Reference:	Gauge, Absolute, Sealed Gauge
Output:	4 to 20mA, 1 to 5V, 0 to 5V
Supply:	24VDC, 12VDC
Compensated Temp.:	-10ºC -70ºC, -20ºC -85ºC
Operating Temp.:	-40ºC -125ºC
Housing Material:	304
Sensor Material:	316L
Ex-Proof:	Exia Iic T6
Accuracy Grade:	±0.5%F.S.
Pressure Range:	-100kpa...0~35kpa...100MPa
