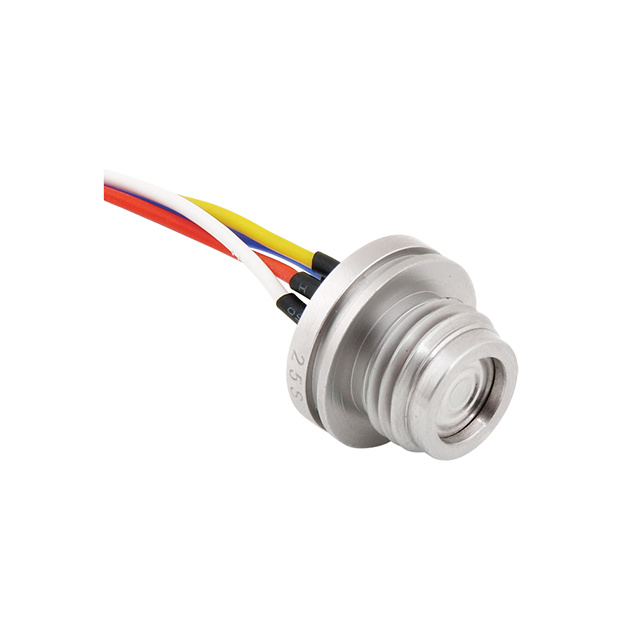

Piezoresistive Silicon Pressure Sensor with Thread (PC30)

Piezoresistive Silicon Pressure Sensor with Thread (PC30)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 5/Piece
Pay Type: T/T,Western Union
Prod Model: PC30
Markets: North America,South America,Western Europe
Pressure Range: 0~1MPa...100MPa
Pressure Reference: Absolute Sealed Gauge
Zero Output: ±2mv
Span Output: ≥60mv
Accuracy: ±0.25%F.S.
Excitation: 1.5mA
Compensated Temp.: -10ºC -70ºC
Operating Temp.: -40ºC -125ºC
Input Impedance: 2KΩ-5KΩ
Oil Filling: Silicon Oil

Product Description

Piezoresistive silicon chip employed
Perfect long term stability
MEMS technology
Sensor diameter: 19mm


Pressure range

Pressure range1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa, 100MPa (bar and psi unit available)
Pressure referenceAbsolute pressure | Sealed gauge pressure
Overpressure300%F.S.(≤70Kpa) | 200%F.S.(<25Mpa) | 150%F.S.(≥25Mpa)
Output signal

Zero output±2mV
Span output≥60mV
Specification

Accuracy (linearity, repeatability and hysteresis)±0.25%F.S. (Typical)
Excitation1.5mA (Typical)
Compensated temp.-10ºC -70ºC
Operating temp.-40ºC -125ºC
Storage temp.-40ºC -125ºC
Zero temp. coefficient 0.02%F.S./ºC(≥100kPa) | 0.04%F.S./ºC(<100kPa)
Span temp. coefficient0.02%F.S./ºC(≥100kPa) | 0.04%F.S./ºC(<100kPa)
Insulation resistance>200Mohm/250VDC
Input impedance2kΩ-5kΩ
Long term stability≤0.2%F.S.S/year
Vibration20g (20-5000Hz)
Oil fillingSilicon oil
O-ring NBR, Viton
Housing and diaphragm                                    Stainless steel 316L
Wire connection4 wire (typical) | 5 wire (available)    39×φ0.015, Silicon shielded, 200ºC bearing
Pin connectionKovar pin (0.6um Gold platted)
