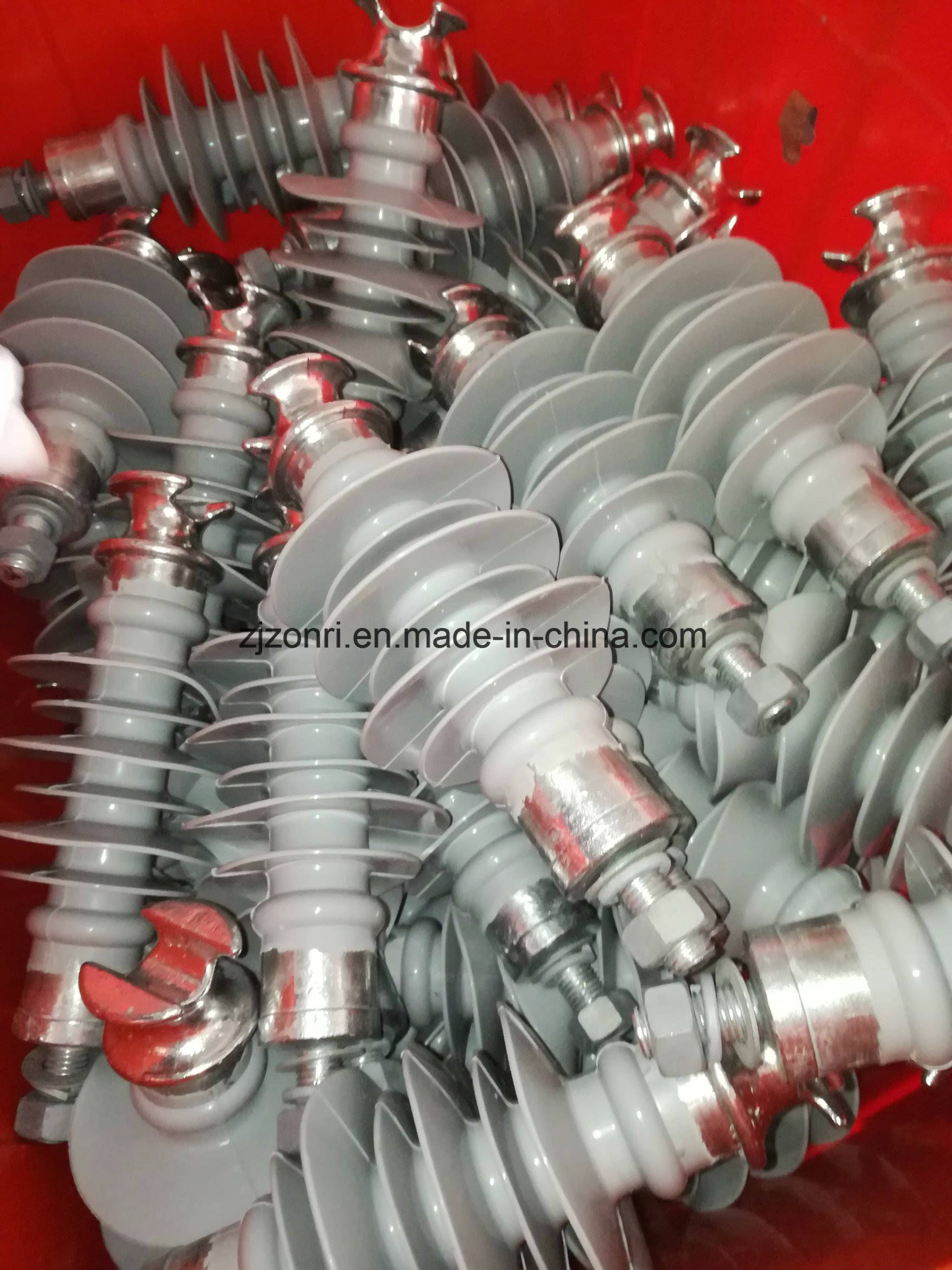

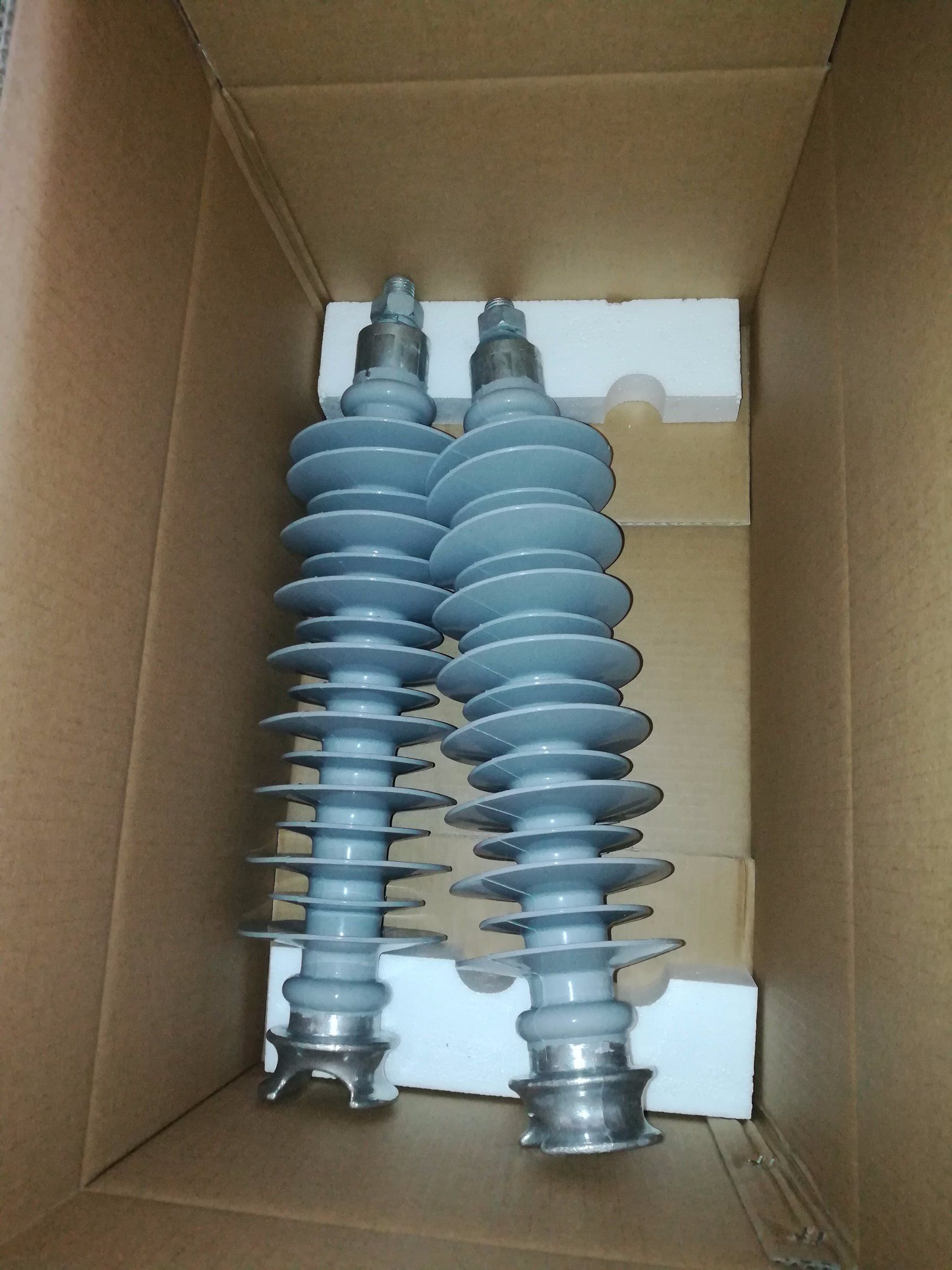

Product Name: 33kV, 10-12KN Composite Pin / Line post Insulator
Manufacture and test Standard: IEC, ANSI
Certification Agent: KEMA Nederland B. V. -T&D Testing Services
Certificate Number: 07-1210
Materials:
1) Silicon Rubber for sheds/ housing
2) Glass-fiber reinforced epoxy resin rod (ECR type) for core
3) Hop DIP galvanized cast steel for metal fittings
Key Specifications/Special Features:
*Rating voltage: 33kV
*Specialized mechanical bending load: 8-10KN
*Structure height: 406mm
*Insulating distance: 280mm
*Min creepage distance: 940mm
*Diameter of sheds: 122/92
*Lightning impulse voltage: 200/kV
*Power frequency wet withstand voltage: 95kV
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacture .
Q: How long is your delivery time?
A: Generally it is 10-20 days if the goods are in stock. or it is 30-45 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer Certain sample for free charge but you need pay the cost of freight.
Please contact me to confirm.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us as below:
Marketing: Wendy Chen
www.zonri.com
Mobile phone : 86-15067737389

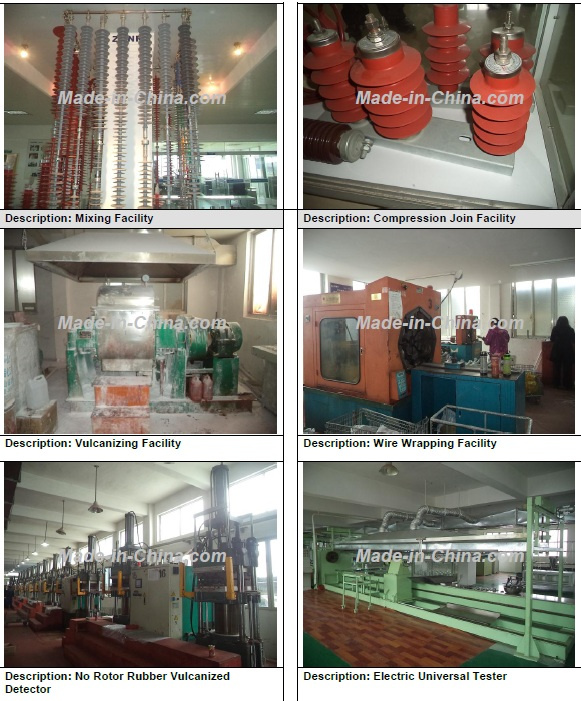

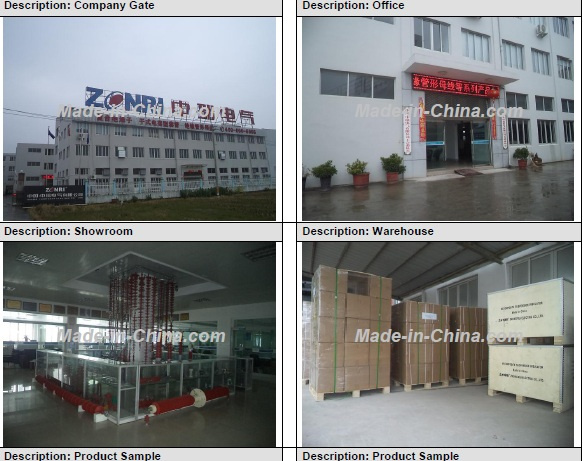

Zhongrui Electric Co., Ltd. Located at Chinese Electric City'-Yueqing City, established 2000, own advanced manufacturing machines and complete measuring & testing equipments. We are a high technical enterprise that have succeed in turning produce, develop and sell together, one of the professional manufacturer for silicone rubber insulator in China, the member of Chinese Electrical Equipment Industry Association, one unit of National standard and technical committee of insulator, Yueqing city valuing contracts & promising enterprise, ISO2000: 2008 International Quality System Attestation enterprise, and established long-term cooperating relationship with the relevant scientific research institutions.

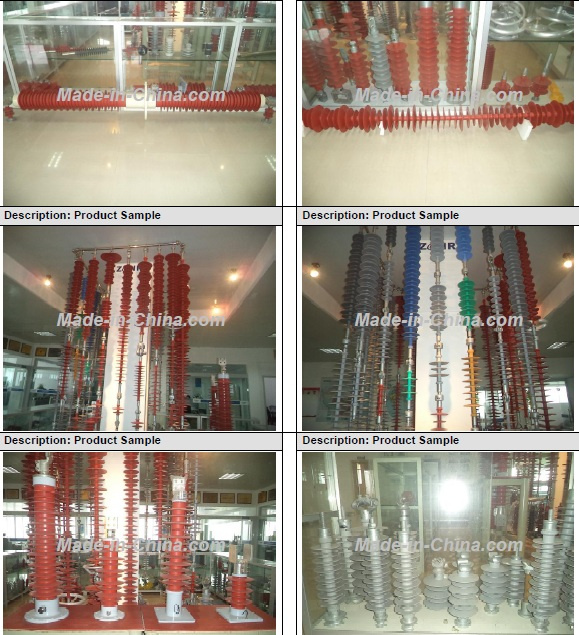

Our company specializes in the series products of composite insulator (power line, substation and electric railway series), composite dry wall bushing, lightning arrester and fuse cutout etc. All products are qualified by Ministry of Power Industry electric equipment quality inspection center and National Insulator & Lightning Arrester quality control test of inspection center, agreed with National industrial, IEC AND ANSI standard, and accreditation through State Power Corporation and China Machinery Industry Federation 'Two Ministry' new product and Zhejiang Province Scientific & Technological Hall, Province Electric Power Industry Bureau, Province Mechanical Industry Bureau federation authentication of new products of scientific & technical results. Product quality is insured by People's Insurance Company of China. Series of composite insulators and Zinc Oxide Arrester manufactured by our company, sharing the features of advanced design, reasonable structure, reliable performance, that achieve to the national leading level. Our silicone Rubber insulator used on high-voltage line had been placed 'National Star plan' by Chinese Technical department, Composite Cross-arm Insulator had been honored City Technical Metal; And we are the first private enterprise that got KEMA test report for Composite Insulator and Arrester in China. Our products sell well through all parts of the country, as well as finding good markets in Iran, Indonesia, Vietnam, Kampuchea, Syrian, Korean, Canada etc., gaining favorable comments of domestic and abroad users.
We can designand produce all type composite Insulators as per user's requirement. Warmly welcome old and new customers visit our company. We try our best to develop the best products at highvoltage products basic with "toward excellence for creditable brand"
ZONRI company will go ahead together with you and cooperate with you in sincerely.
