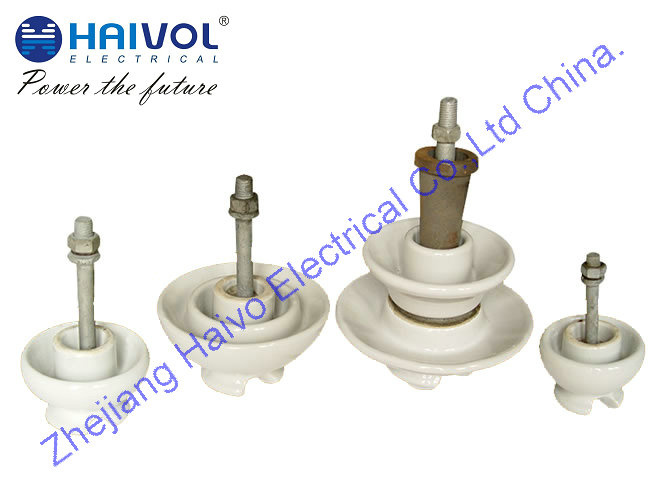

Pin Type Porcelain Insulators with Spindle

Name: Pin Type Porcelain Insulators with Spindle
Brand: all-electronics-online.com
SKU: 609493395
Availability: InStock
Rating: 4.3 (123 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Pin Porcelain Insulators (ANSI)
Pin Insulators (ANSI)
Class ANSI: 56-1, 56-2, 56-3, 56-4, 56-5

Cat/NO				A1066		A1067		A1068		A1069		A1070
Fig				1		1		2		2		3
Class ANSI				56\1		56\2		56\3		56\4		56\5
Main Dimensions(mm)	H			146		165		191		241		318
	h			50.8		50.8		50.8		50.8		63.5
	D			191		228		267		305		343
	d			34.9		34.9		34.9		34.9		34.9
	d1			19		49		19		19		19
	R2			14		14		14		14		14
Norminal voltage (kv)				23		23		35		46		69
Creepage distance (mm)				330		430		533		685		865
Minimum Flshover voltage	Power-frequency	Dry (kv)	95		110		125		140		175
		Wet (kv)	60		70		80		95		125
	50% Impulse	Positive(kv)	150		175		200		225		270
		Negative(kv)	190		225		265		310		340
Radio-influence voltage data	Test voltage to ground (kv)			15		22		30		30		44
	Maximum RIV at 1000KHZ(KV)			100		100		200		200		200
Low-frquency puncture puncture voltage average (kv)				130		145		165		186		225
Dry arcing dislance(mm)				178		210		241.3		285		356
Cantilever Failing Load (kv)				1134		1360		1360		1360		1360
Weight(kg)				3.7		5.3		7		10.8		13.5

Prod Model:	pin type
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Porcelain Insulators:	Pin Insulator
Application:	Insulators
Material:	Porcelain
Structure:	Pin Insulator
Type:	B Type Insulator
Brand:	Haivol
