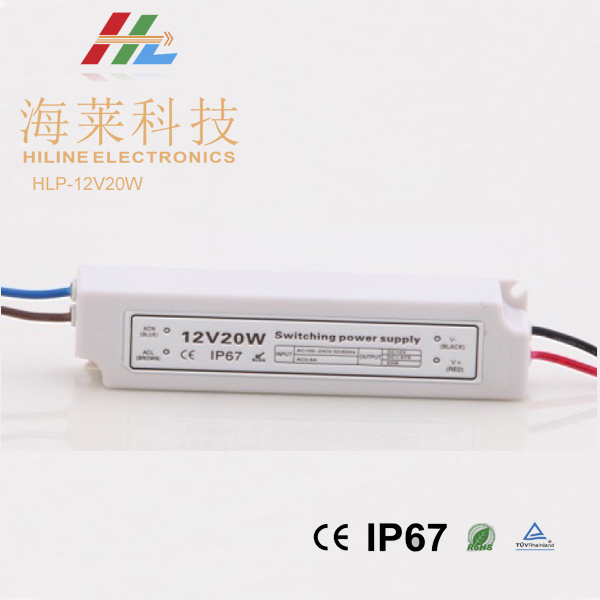

Plastic LED Driver IP67 12V20W

Name: Plastic LED Driver IP67 12V20W
Brand: all-electronics-online.com
SKU: 814397755
Availability: InStock
Rating: 4.5 (35 reviews)

Price:	US $ 2.9-3.8/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

IP67 plastic led driver 12V20W Features:

1. Constant Voltage design;
2. Fully isolated plastic case with terminal block style of I/O;
3. Compact size with high safety, reliability;
4. Protections: Short circuit/Over load;
5. Cooling by free air convection;
6. 100% full load burn-in test;
7. Widely used in LED Lighting;

Item: HLP-12V20W
Output voltage:12V
Rated Current: 1.67A
Rated Power: 20W
Ripple and Noise Note: 100mVp-p
Setup Rise Hold up time: 200ms 50ms 20ms
Voltage Range: 100-240V
Frequency Range: 50~60Hz
AC Inrush Current: 30A/230V
Leakage Current: 0.5mA/240VAC
Product Dimension: 139*30*22mm
Products weight: 0.16kg

Protection:
Over Current: 105-150% rated output power. Protection type: Hiccup mode, recovers automatically after fault condition is removed.
Over Voltage: Protection type: shut down o/p voltage, re-power on to recover.
Short Circuit: Auto Recover
Protection grade: IP67

Enviroment:
Working Temp: - 30 ~ 50 °c / 20% ~ 90% RH (no frost)
Storage Temp: -40 ~ 80 °c / 20% ~ 90% RH (no frost)
Temp. Coefficient: 0.03%°C (0~50°C)
Vibration Frequency: 10~500Hz, 2G 10min/1cycle, period for 60 min. each long X, Y, Z axes.

Prod Model:	HLP-12V20W
Size:	1393022mm
Color:	White
Material:	Plastic
Output Type:	Multiple
Output Power:	1 - 50W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Level 2 Power Distribution Equipment
Certification:	FCC
Input Voltage:	AC90-250V
