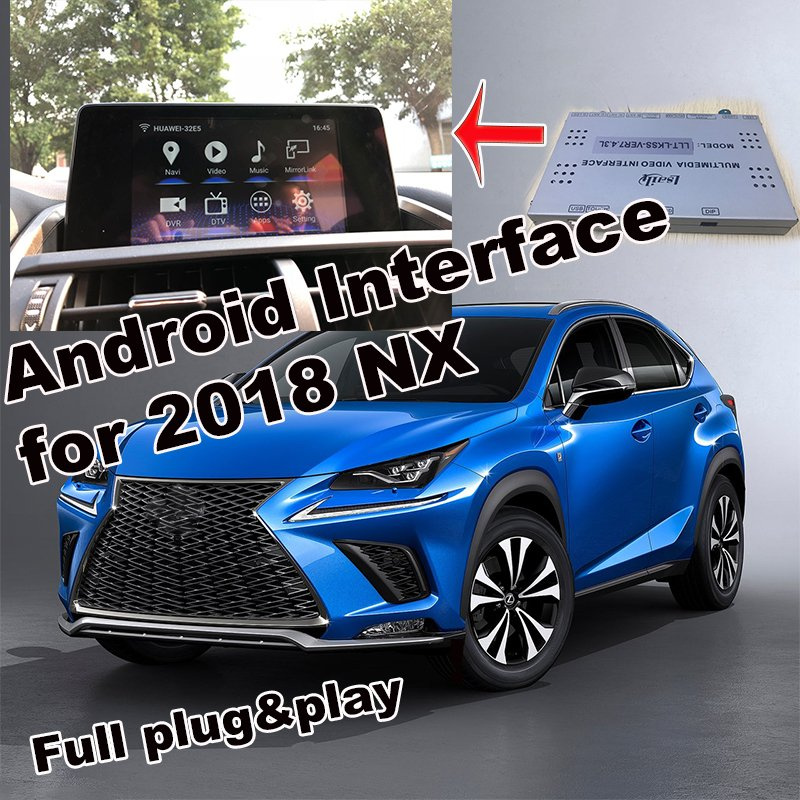

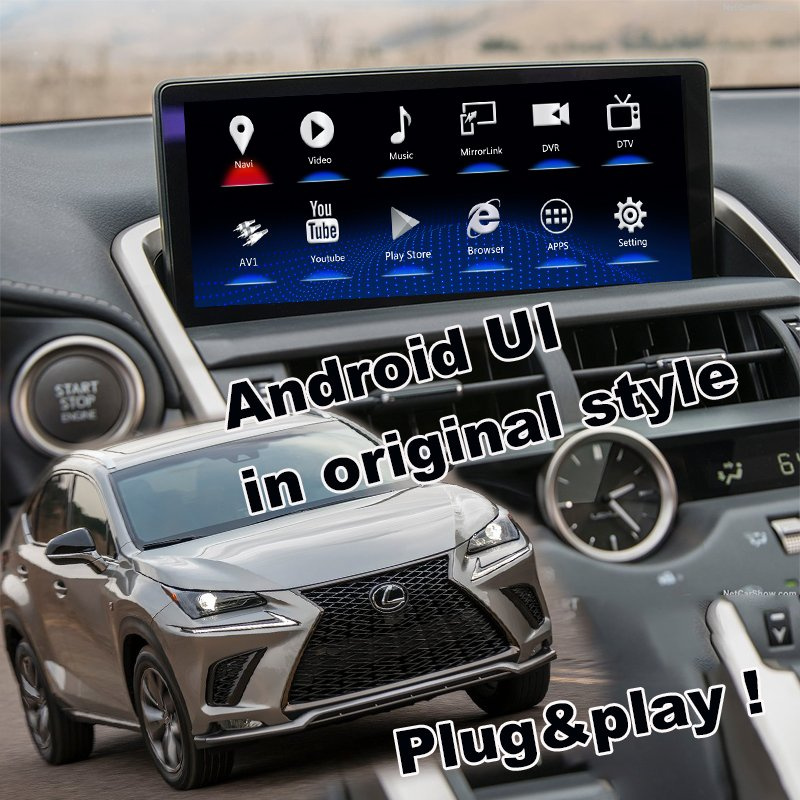

Plug&Play Android 6.0 Navigation Interface for 2018 Lexus NX200 NX300 with Touch Sensor Control WIFI Google map Yandex etc
Work for : 2018 Lexus NX200 NX200T NX300H
Special Features :
1. Totally plug&play
2. Five ways to turn on Android system:
- MODE button on steering wheel ,
- button on steering wheel .
- Voice search " AUX" to turn on Android system. Command siri" CD" turn back to original car.
3. Upgrade App and system through Mcu by cloud service.
4. The temperature of air conditioner and the volume of music can be adjusted in Android system.
5. Mirror link smartphone by USB or WIFI
6. Support ADAS ,TMPS
7. Support 360 panorama cameras and left & right side cameras as optional .
8. Car original functions like A/C ,Volume and bluetooth can be showed and controled in Android
system.
Functions :

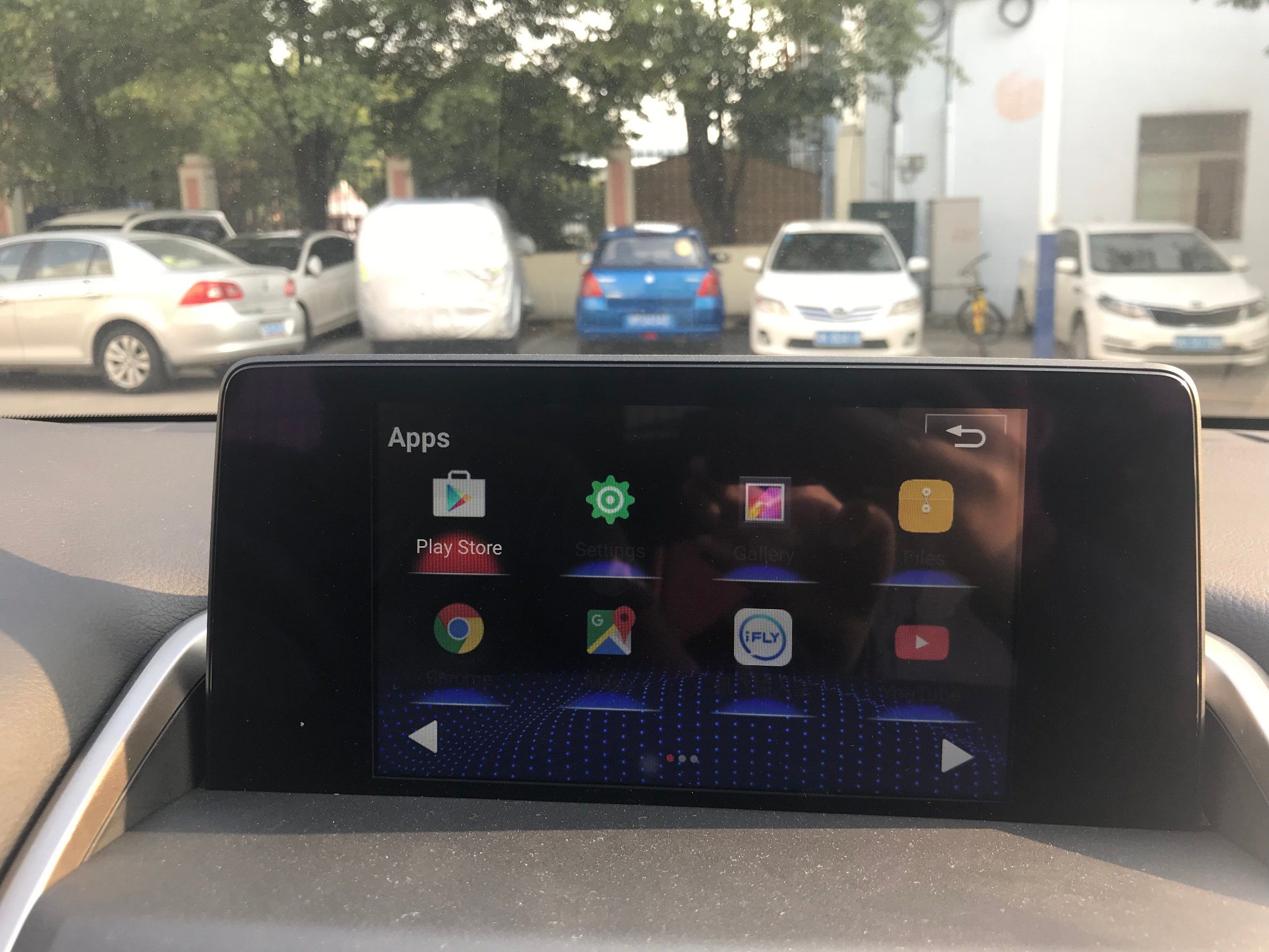

1. Support applications download (YouTube, Waze, google map,yandex etc).
2. Android/IOS mirrorlink connected by WIFI or USB wire
3. Online-map
4. Offline -map
5.Support factory and additional rear camera
6. Reverse camera , front camera , Left-side camera , right-side camera optional
7. DVR / ADAS optional
8. WIFI network
9. Bluetooth
Specifications for Hardware :
Master processor: T3 Quad-Core Processor
Basic frequency : 1.6G.
Memory capacity: 2G DDRIII .
Flash memory: 16G.
OS: Android 6.0
GPS receive: support AGPS function
GPS antenna: 3V active antenna
GPS antenna protection: prevent the antenna short circuit
WiFi module: RTL8188 / RTL8723.
BT module: RTL8723BU,support BT4.0, firmware support Bluetooth functions.
A2DP,Bluetooth telephone.
Support USB 3G dongle,WiFi can be as a hot spot output.
Synchronizing signal: composite synchronizing signal. Separate sync signal.
Video output format: simulate RGB and CVBS composite synchronizing signal output , one of them optional.
Analog video output: Support the display position adjustment,and brightness contrast adjustment.
The resolution of the video output: 800×480,1024X600,Maximum 1920X1080, Support any resolution.
Audio output: Left and right channel stereo output with audio valid indication signal.
Sound Control output: IO output or UART output.
Single track MIC input: support voice navigation, support SPDIF output.
Touchscreen interface: Support 4-wire resistive touch (support two point touch function), support serial touch, two ways to touch without modifying the hardware. Change software will be ok.
Memory card types: support maximum 64 gb TF/SD card, support read U disk, mobile hard disk storage.
USB port : USB OTG 2.0 .
Voltage range: 7 ~ 16v (optional 9 ~ 28V), with undervoltage shutdown (7V protection shutdown).
ACC control: ACC support delay shutdown, and SLEEP combination can be set off at any time.
Supported map software: APK install automatically or installation package .
Product description:
1. Support external video source input ( DVD TV ),full touch screen ;

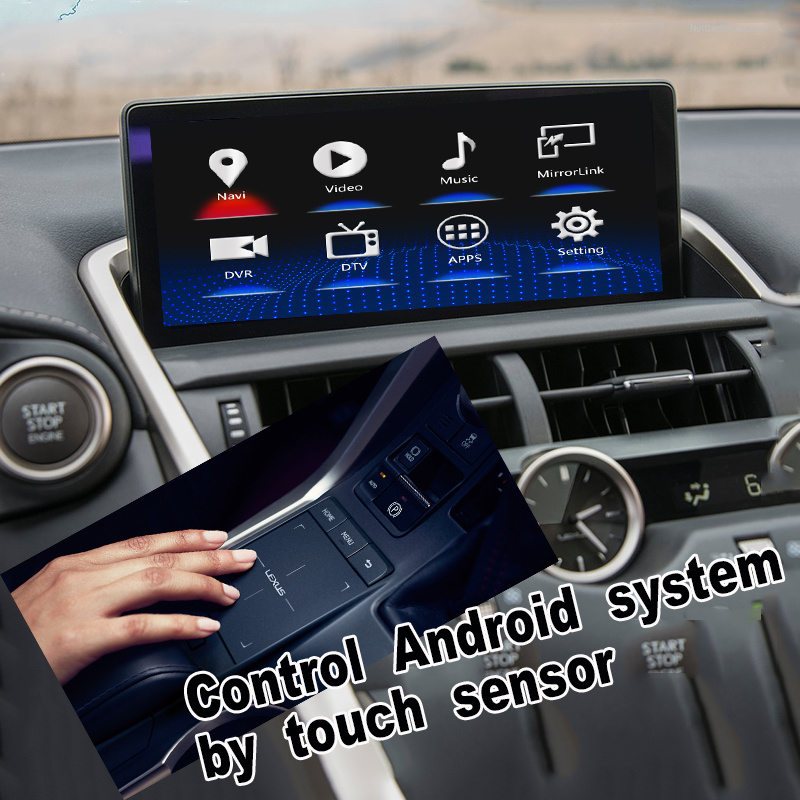

2. Operate Android system by original touch sensor
4. Turn to next song/last song by steering wheel
5. Adjust volume by steering wheel
6. Voice search by factory microphone
7. Sounds come from factory speaker( Knob versionPlay lossless music
8. Control left/right side cameras by Steering wheel or turn light
9. Press AUX button to switch to Android system
Quality warranty policy:
3 month free replacement and 1 year free maintenance due to product problem .
Send goods in 1 or 2 days after full payment received.
Customer service department will contact with you by whatsapp, email, skype for after-sale service .
