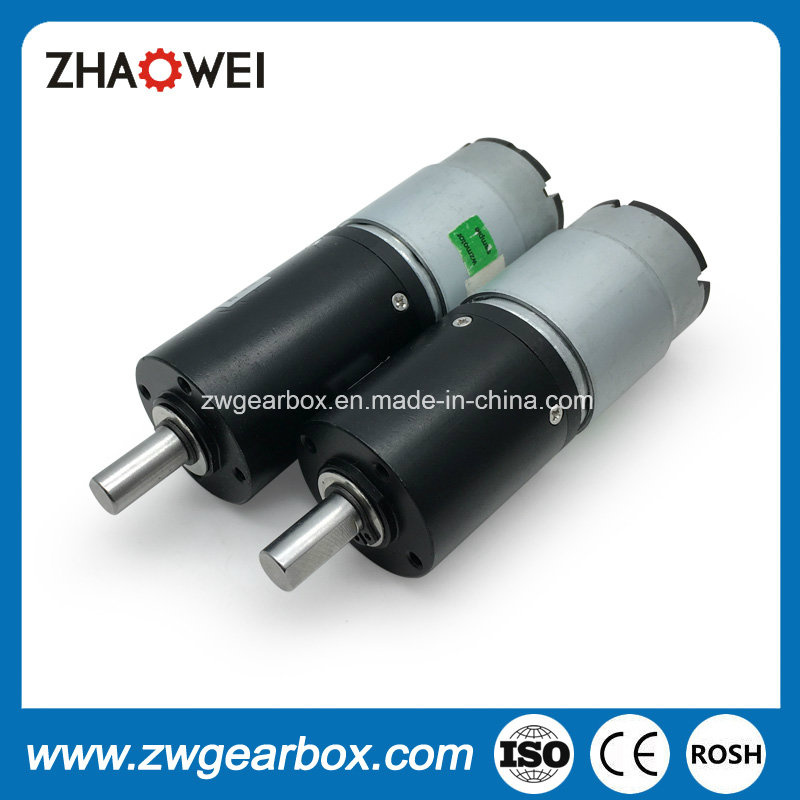

PMDC Planet Gear Motor for Communication Satellite Aerial Tracker

Prod Model:	ZWBMD032032
Rated Voltage:	12V DC
Diameter:	32mm
Output Power:	2.8-10W
No Load Speed:	5-337rpm
Rated Load Speed:	5-303rpm
No Load Current:	235-300mA(Max)
Rated Load Current:	720mA(Max)
Torque:	1229-40854 GF.Cm
Ratio:	16-1076
Motyr Type:	Planet Gear Motor
Application:	Communication Satellite Aerial Tracker
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Excitation Mode:	Permanent Magnet
Casing Protection:	Drip-Proof
Type:	Planet Gear Motor
Certification:	RoHS
Brand:	Zhaowei

Product Description

PMDC Planet Gear Motor for Communication Satellite Aerial Tracker

Product Description

Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length L1
	Rated	At No Load		At Rated Load				Overall Length L
	Voltage	Speed	Current	Speed	Current	Torque
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
ZWBMD032032-16	12.0	337	235	303	715	1229	121	81.6	65000	250000	16	39.1
ZWBMD032032-24	12.0	225	235	202	715	1843	181		65000	250000	24
ZWBMD032032-33	12.0	163	235	147	715	2534	249		60000	200000	33
ZWBMD032032-67	12.0	80	270	72	715	3392	333	91.6	65000	250000	67	49.1
ZWBMD032032-94	12.0	57	270	52	715	4759	467		65000	250000	94
ZWBMD032032-133	12.0	41	270	36	715	6733	660		65000	250000	133
ZWBMD032032-188	12.0	29	270	26	715	9518	933		60000	200000	188
ZWBMD032032-272	12.0	20	300	18	720	10328	1013	101.6	80000	300000	272	59.1
ZWBMD032032-383	12.0	14	300	13	720	14542	1426		80000	300000	383
ZWBMD032032-540	12.0	10	300	9	720	20503	2011		80000	300000	540
ZWBMD032032-763	12.0	7	300	6	720	28970	2841		80000	300000	763
ZWBMD032032-1076	12.0	5	300	5	720	40854	4007		70000	250000	1076

above specifications just for reference and customizable according to requirements.

2D Drawing

Application

Audio and visual equipments	notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder
Household application	electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk
Office automation equipments	CD-ROM, OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine
Automotive products	conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, automatic vending machine
Toys and models	radio control model, automatic cruise control, ride-on toy
Medical equipments	blood pressure meter, breath machine
Industrials	air freshener, display, flow control valves
Electric power tools	electric drill, screwdriver
Precision instruments	monitor, optics instruments


Our Services
ODM & OEM
Gearbox design and development
Related technology support

Packaging & Shipping
1) Packing Details
packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.
Or according to client's requirement.
2) Shipping Details
samples will be shipped within 10 days;
batch order leading time according to the actual situation.

Company Information
Shenzhen Zhaowei Machinery & Electronics Co., Ltd is a national grade high-tech enterprise which professionally specialized in R&D and manufacture high precise gear box reducers. We provide total solution to costomers including transmission gear box design, gear parts and molding design and manufacturer, parts mass production and assembly.
1) Competitive Advantages
18-year experience in manufacturing motor gearbox
Experienced Staff: average 7-year experience in R&D , ODM &OEM
International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
Competitive Price
High Product Performance: Low noise, High efficiency, Long lifespan
Prompt Delivery: 15 working days after payment
Small Orders Accepted
Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino, EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc.
 2) Main Products
Precise motor gear box reducer: diameter 4-40mm, Output speed: 5-2000rpm, Output torque: 10 gf-cm 50Kgf-cm;
Customized worm and gear transmission machinery;
Precise electromechanical motion module;
Precise component and assembly of plastic and metal powder injection.
Certifications
We Have passed to hold ISO9001, ISO14001 and TS16949.
and more...

FAQ
1. Can you make the gearbox with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2.Do you provide the samples?
YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.
3.What is your MOQ?
Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.
4. Do you have the item in stock?
I am sorry we donot have the item in stock, All products are made with orders.
5. Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
6.How to ship to us?
We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
7.How to pay the money?
We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.
8. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
9. Can I come to your company to visit?
YES, you can come to our company to visit at anytime, and welcome to visit our company.
10. How do contact us ?
Please send an inquiry .
