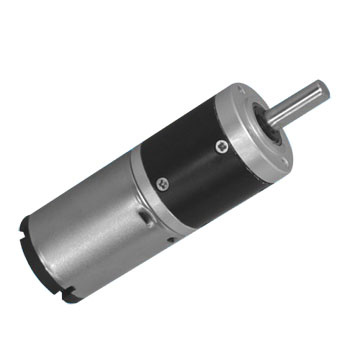

PMDC Planet Gear Motor for Electric Curtains

Name: PMDC Planet Gear Motor for Electric Curtains
Brand: all-electronics-online.com
SKU: 671465985
Availability: InStock
Rating: 4.3 (142 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

1. Planet gear motor size: From dia. 22mm to dia. 83mm
2. Fit for small size big output power equipment.
3. The specifications can be designed according to the customer's requirements!
4. The motor have low noise,long life,high torque.
5. The motor can add encoder
6.Typical applications: Laminator, Paper Shredder, Rotating Christmas Tree Stand, fan, electric oven, grill.

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369	516	720
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4	4
Length(L) mm	26	26	28	28	28	32.5	32.5	32.5	32.5	37.5	37.5	37.5	37.5	37.5
No-load speed r/min	810	570	210	150	110	55	40	30	20	15	11	8	5	4
Rated speed r/min	630	440	160	120	85	45	30	23	16	12	8.5	6	4.5	3
Rated torque N.m	0.01	0.014	0.037	0.051	0.072	0.13	0.18	0.25	0.35	0.45	0.5	0.5	0.5	0.5
Max.permissible load in a short time	0.3	0.3	0.6	0.6	0.6	0.9	0.9	0.9	0.9	1.2	1.2	1.2	1.5	1.5

Prod Model:	22ZYT38-1230-22PLG5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	6V,12V,24V
Speed:	4-800rpm
Torque:	0.01-0.5nm
Application:	Power Tools
Operating Speed:	Low Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Certification:	CE,Rosh
Brand:	Longway
