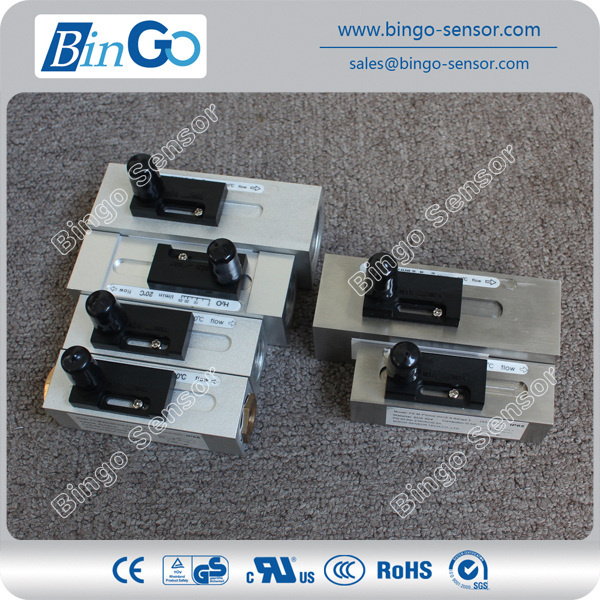

POM Piston Type Flow Switch

Name: POM Piston Type Flow Switch
Brand: all-electronics-online.com
SKU: 782447915
Availability: InStock
Rating: 5 (81 reviews)

Price:	US $ 1-11/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FS-M-PSA010-GF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Medium:	Non-Aggressive Fluid, Gas
Housing Material:	POM, Aluminum, Ss304
Electrical Rate:	24VDC/250VDC, 100mA
Protection Grade:	IP65

Product Description

Piston flow switch
Piston flow switch has a magnetic ring inside the piston.when the water pressure pushes the psiton to tje position of the reed switch,the switch is triggered and generates ON/OFF signal.

Model	FS-M-PSA010-GF	FS-M-PSS010-GE	FS-M-PSA010-GD	FS-M-PSA010-GB
Application	Industrial automation/Mechanical equipment/Air compressor industry/HVAC
Medium	Non-aggressive fluid,gas
Housing material	POM,Aluminum,SS304
Long time working tempreature	≤70ºC
Max.fluid temperature	≤90ºC
Adjustable flow rate	0.6-8L/min,1-15L/min,2-25L/min,27-70L/min(Optional)
Connection	G1''	G3/4''	G1/2''	G1/4''
Max.fluid pressure	POM 1.0Mpa,Aluminum 5.0Mpa;SUS304 10Mpa
Electrical rate	24VDC/250VDC,100mA
Contact form	SPST NO
Electrical connection	M12 aviation plug,with 2meter cable(longer length available)
Protection grade	IP65

IF YOU NEED MORE DETAIL INFORMATION,PLS FELL FREE CONTACT WITH ME.
I WILL SEND FLOW CATALOGUE TO YOU.

Bingo Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing ---- The world-famous city for low-voltage electric apparatus.

We owns followed two subsidiary corporations:

Bingo sensor Technology Co., Ltd. ----- concentrates on pressure, level and flow control product.

Yueqing tongfa electronic Co., Ltd. ----- is engaged in electronic&electrical product, security product.

After several years development, Bingo now becomes a professional supplier for

* Pressure, level and flow control product applied to:

Water supply system

HVAC

Household appliances (refrigerator, Furnace, heater, dish-washing machine,

Water dispenser, food waste disposer and so on)

Steam control system

Vehicle

Oil transporting system

Medical equipment

* Security product

Warning light

Roadway safety

Mining safety

Alarm sire

* Electronic&Electrical product

Tact switch

Micro switch

Toggle switch

Foot switch

Earphone jacket

Industrial plug&socket

With many years' business accumulation and good cooperation with more than 150 companies, we are capable to offer our clients products with the competitive prices, satisfied quality and excellent services. Part of our products own CE, UL, TUV certificate.

At present, Bingo Industrial and Trading Company has 50-60 employees. We have set up business relationships with customers from more than 50 countries and regions. Through running business honestly, we earned the reputation from both local government and oversea clients.

We strongly insist on the principle of "quick response, the best service, satisfactory quality, and competitive price", and sincerely hope that every customer around the world would have the feeling of "Bingo" after the first business cooperation with us.

Looking forward to a win-win relationship with you!
